Headlamp Alignment Control Module

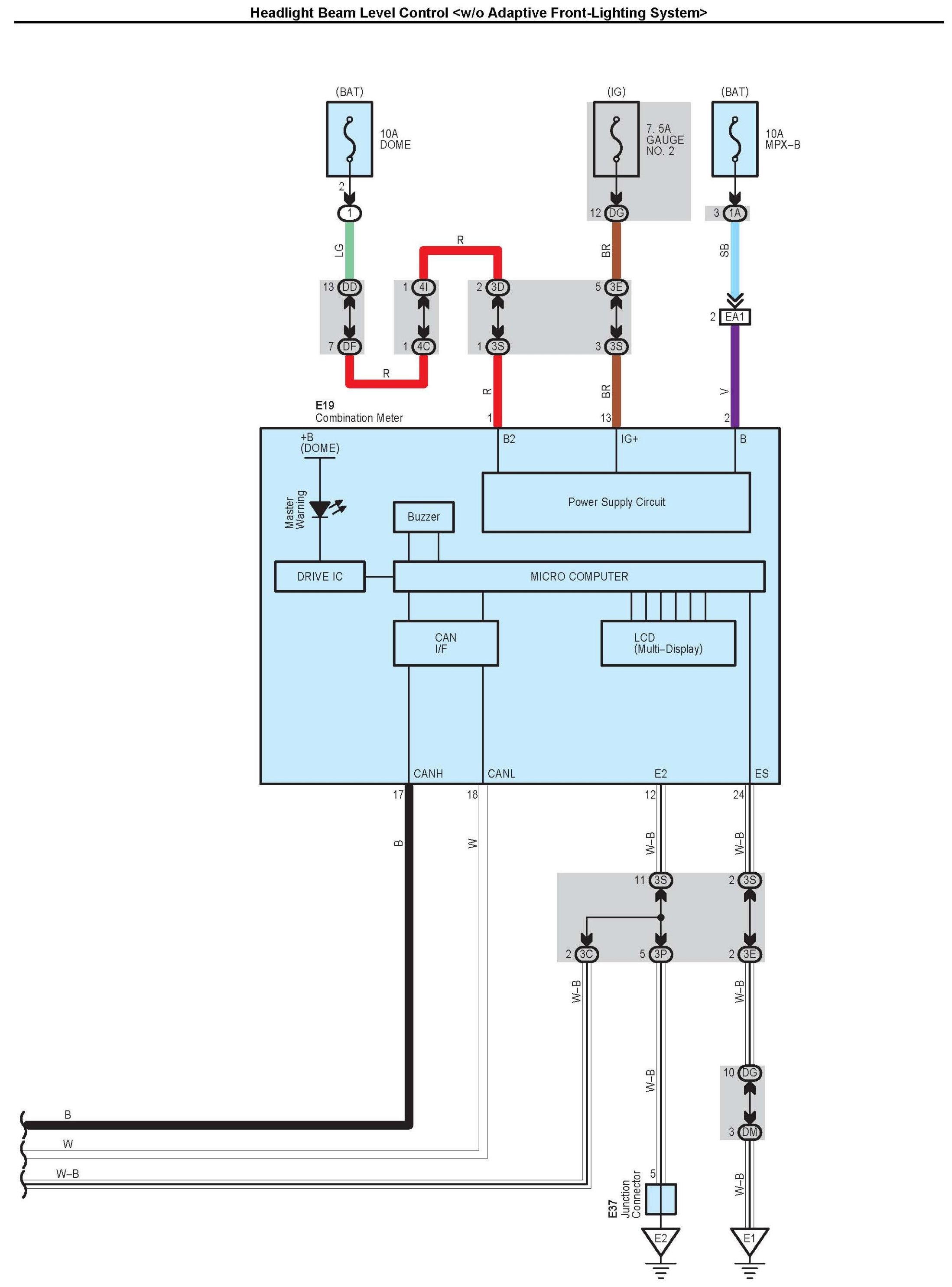

Headlight Beam Level Control <w/o Adaptive Front-Lighting System> Part 1:

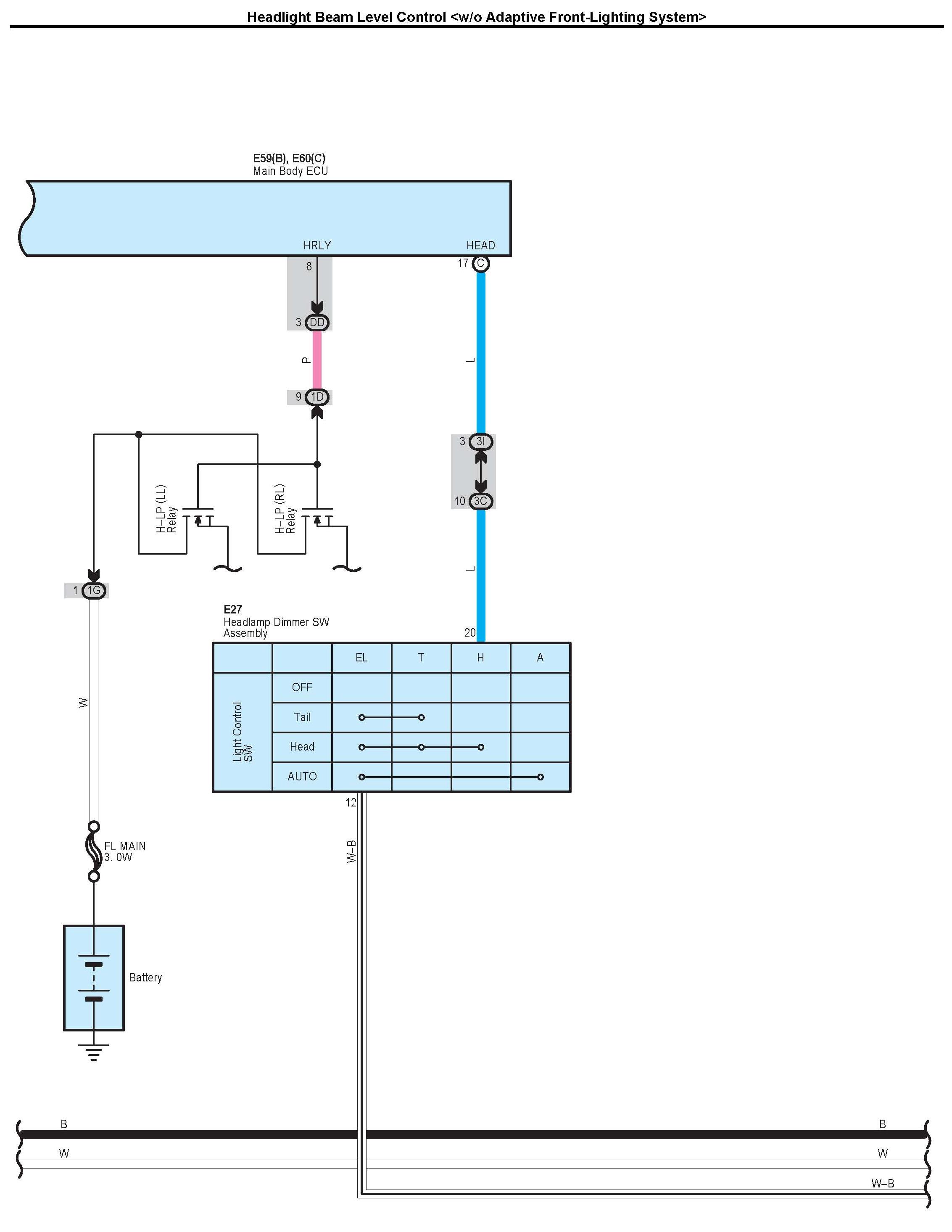

Headlight Beam Level Control <w/o Adaptive Front-Lighting System> Part 2:

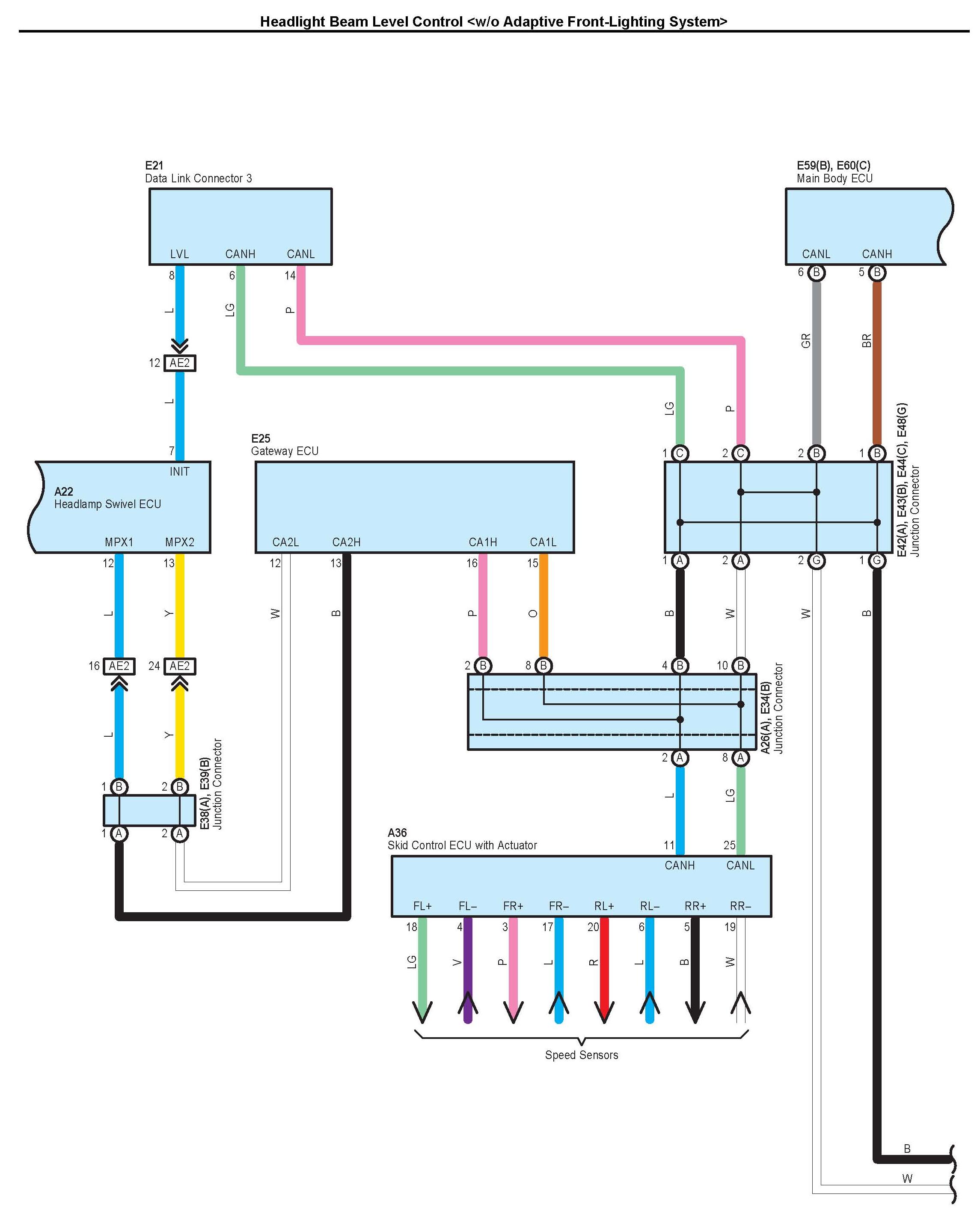

Headlight Beam Level Control <w/o Adaptive Front-Lighting System> Part 3:

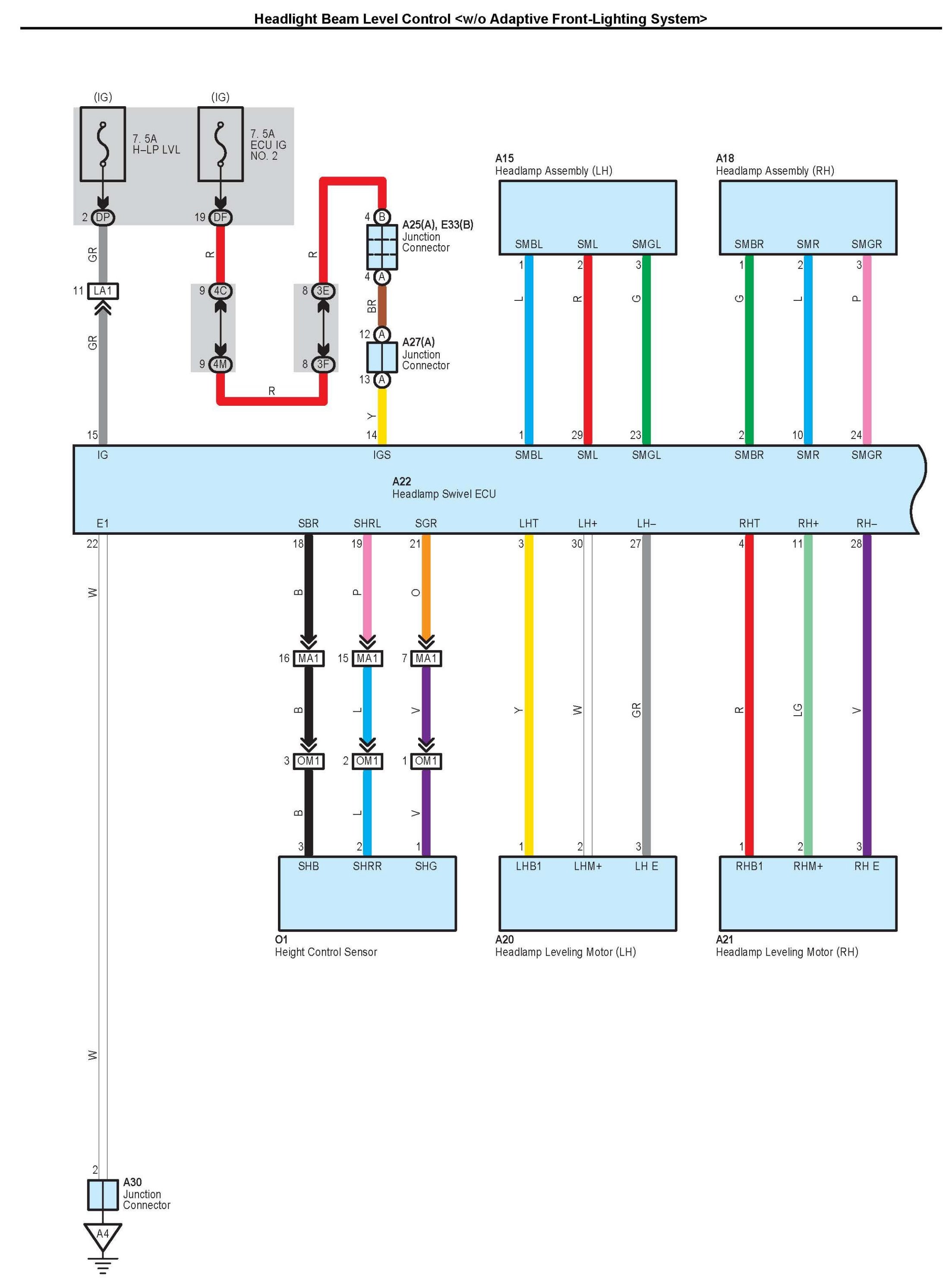

Headlight Beam Level Control <w/o Adaptive Front-Lighting System> Part 4:

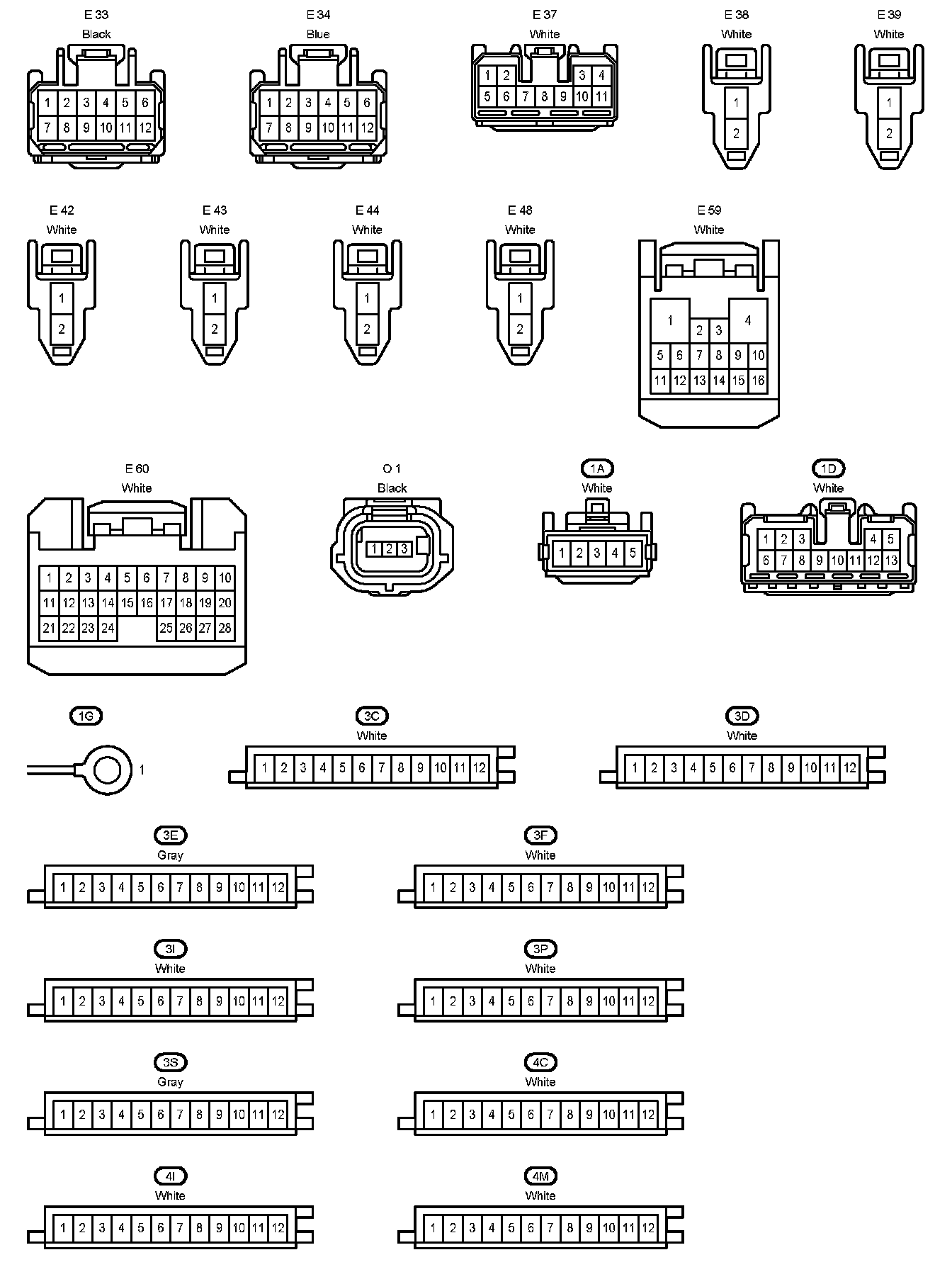

Connector Pin Outs Part 1:

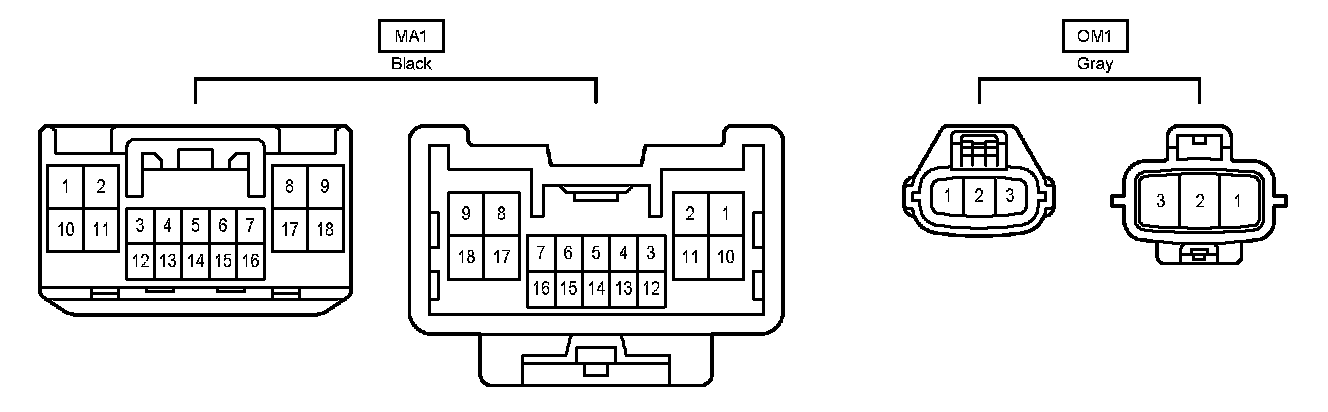

Connector Pin Outs Part 2:

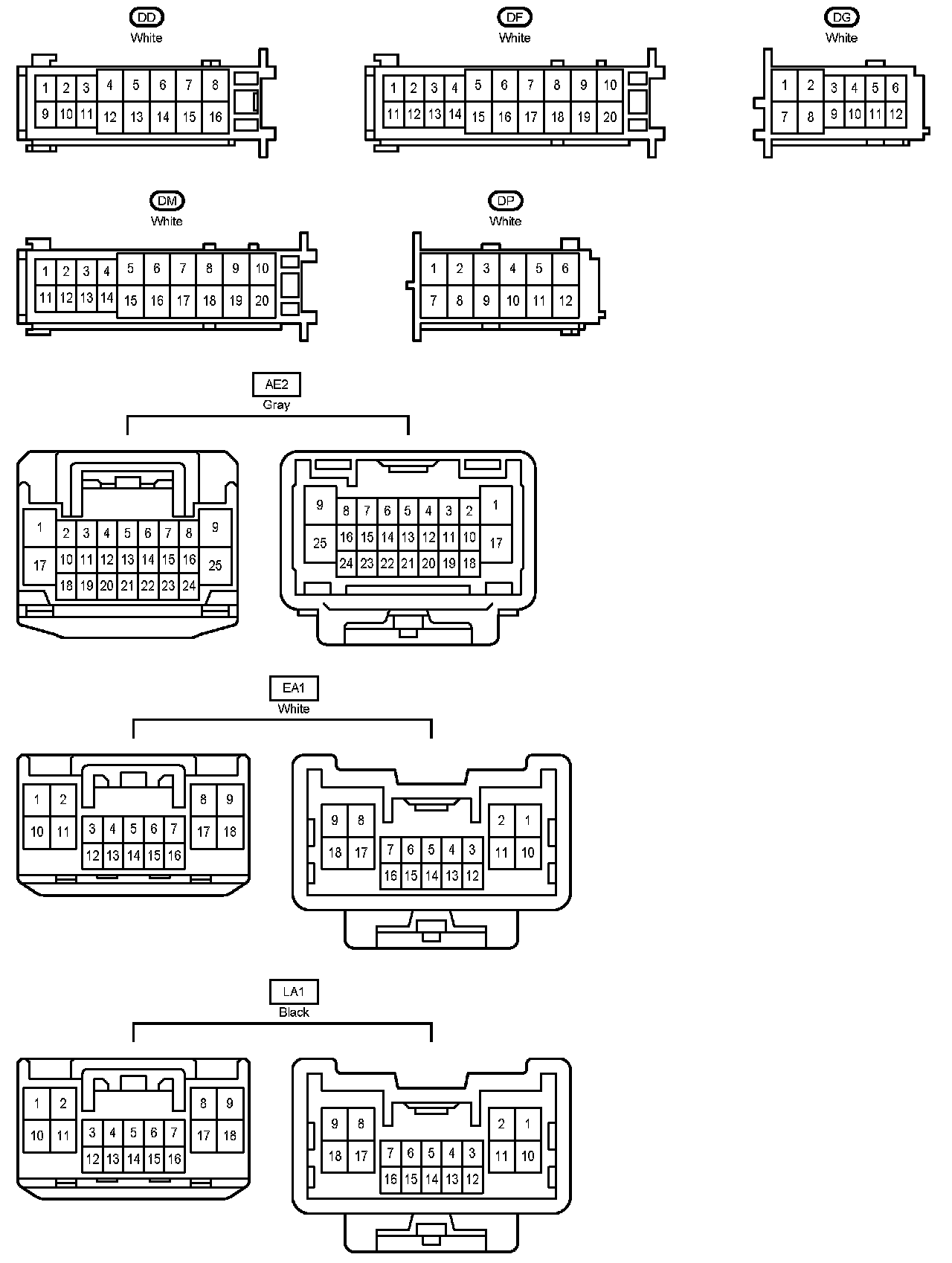

Connector Pin Outs Part 3:

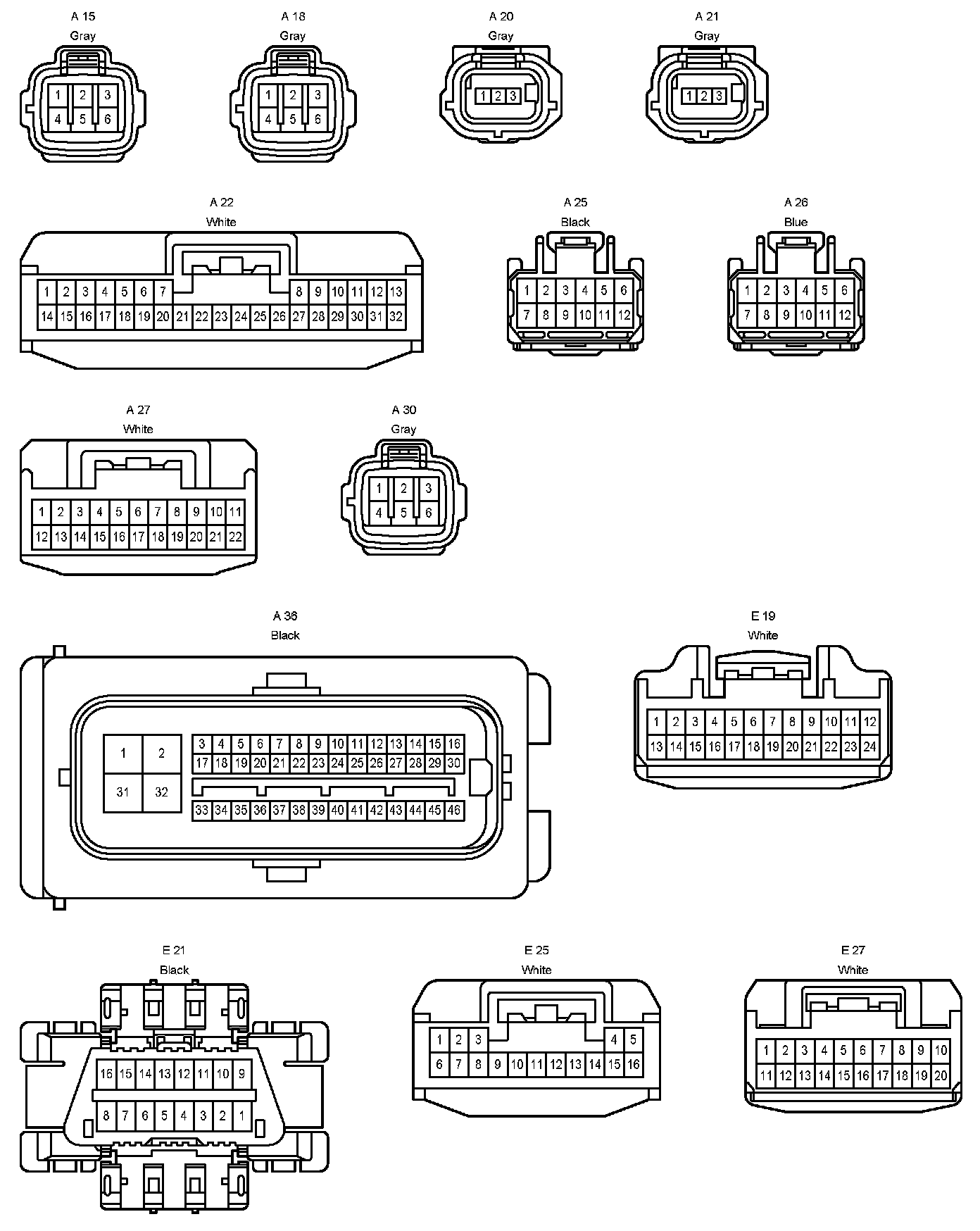

Connector Pin Outs Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
