Installation

2GR-FE ENGINE CONTROL SYSTEM: MASS AIR FLOW METER:

INSTALLATION

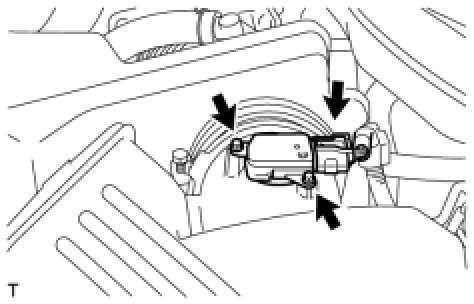

1. INSTALL MASS AIR FLOW METER






(a) Install the mass air flow meter with the 2 screws.
(b) Connect the mass air flow meter connector.
2. INSTALL ENGINE ROOM SIDE COVER LH Installation

3. INSTALL COOL AIR INTAKE DUCT SEAL Installation
