Circuit Opening Relay








2GR-FE ENGINE CONTROL SYSTEM: CIRCUIT OPENING RELAY:

INSPECTION

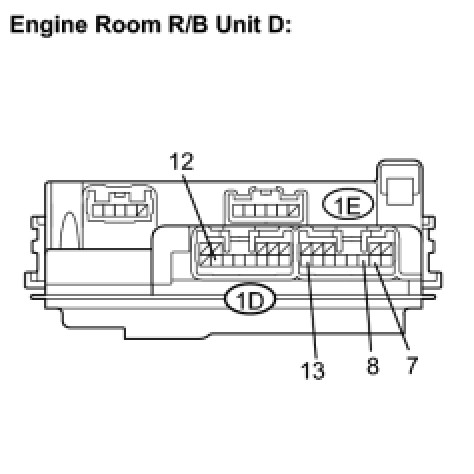

1. INSPECT CIRCUIT OPENING RELAY

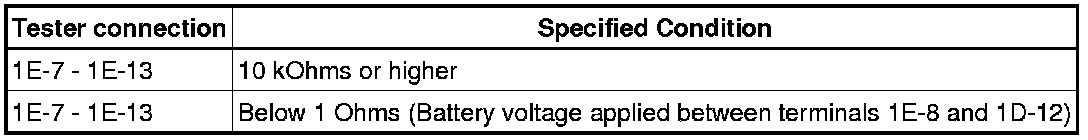

(a) Using an ohmmeter, measure the resistance according to the value(s) in the table below.
Standard resistance:
