Customize Parameters

HINT:

The items in the table below can be customized.

1. Connect Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the tester on.
4. Enter the following menus: Customize Setting / Smart Key/Smart Access.
5. Select the setting by referring to the table below.

   Smart:

   SMART CUSTOMIZE PARAMETERS



   Tester Display	Default	Contents	Setting
   Park Wait Time (Wait time to permit opening door after locking)	2.5s	Function that sets waiting time to permit opening door after door is locked with entry lock function.	05s/1.5s/2.5s/ 5.0s
   Ignition Available Area (Smart ignition available area)	ALL	Function to choose the available area for electrical key to start E/G and cancel the steering lock	FRONT/ALL
   Trunk Open Mode (Luggage compartment opening operation)	ON	Function to open a luggage compartment when the driver has the electrical key and presses the luggage open button.	ON/OFF

   Wireless Door Lock:

   WIRELESS DOOR LOCK CUSTOMIZE PARAMETERS



   Tester Display	Default	Contents	Setting
   Alarm Function (Panic function)	ON	Function to operate the theft deterrent system by keeping pressing the lock button of the transmitter for 2 5 seconds If there is a panic button, press the panic button instead of the lock button.	ON/OFF
   Wirels Buzz Vol	Level 7	Function to adjust the volume of the wireless door lock buzzer	Level 0 / 1 / 2 / 3 / 4 / 5 / 6 / 7

   Warning:

   WARNING CUSTOMIZE PARAMETERS



   Tester Display	Default	Contents	Setting
   Key Low Battery Warning	ON	Function to set a warning function for the time when a key battery becomes weak.	ON/OFF

1. To change the vehicle to entry unlock mode switching function, make sure the vehicle power is off and simultaneously press and hold the electrical key's LOCK switch and another electrical key switch for 4.5 seconds.

   When the switches are pressed and held for 4.5 seconds, the entry door unlock mode changes in the following order: driver door mode, all door mode.

   NOTE: After pressing and holding the switches for 4.5 seconds, wait 4.5 seconds before performing the same procedure again.
   • Driver door unlock mode:

     When the driver door's touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.

   • All door unlock mode:

     When the touch sensor is touched, all doors unlock.

2. The certification ECU receives this signal from the entry door control receiver and changes the smart access system with push-button start to the entry unlock mode.
3. The certification ECU sounds the buzzers of the wireless door lock buzzer and combination meter to inform the user that the mode has been switched.

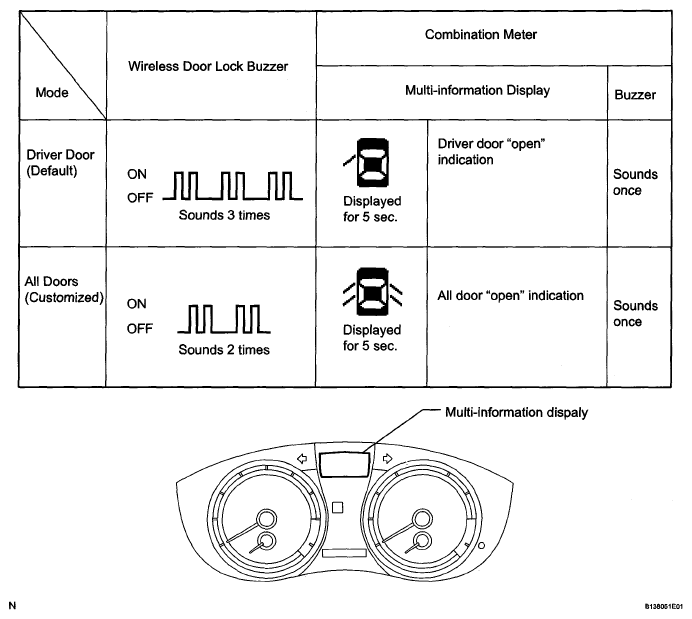

   Fig 1: Entry Unlock Mode Switching Function Information Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   The function only changes the entry unlock mode of the smart access system with push-button start. It does not switch the unlocking of the wireless door lock control.

The electrical key cancel operation disables the following functions:

• Entry Ignition
• Entry Unlock/Lock
• Entry Luggage Compartment Open
• Electrical Key Lock-in Prevention
• Warning
• Memory Call

1. The operation procedures are as follows: Precondition:

   Engine switch off, driver side door closed and unlocked.

   1. Unlock the driver side door once with the UNLOCK switch of the electrical key.
   2. Open the driver door within 5 seconds.
   3. Unlock the driver side door twice with the UNLOCK switch of the electrical key within 5 seconds.
   4. Repeat open → close twice for the driver door within 30 seconds, and open again.

      (Driver door: Open → Close → Open → Close → Open)

   5. Unlock the driver side door twice with the UNLOCK switch of the electrical key within 5 seconds.
   6. Repeat open → close once for the driver door within 30 seconds, and open again.

      (Driver door: Open → Close → Open)

   7. Close the driver door within 5 seconds. When electrical key cancel is activated, the wireless door lock buzzer sounds twice.

      To return to the original condition, perform the procedures again. When the original condition is returned, the wireless door lock buzzer sounds once.
