Outer Mirror Control Ecu: Components

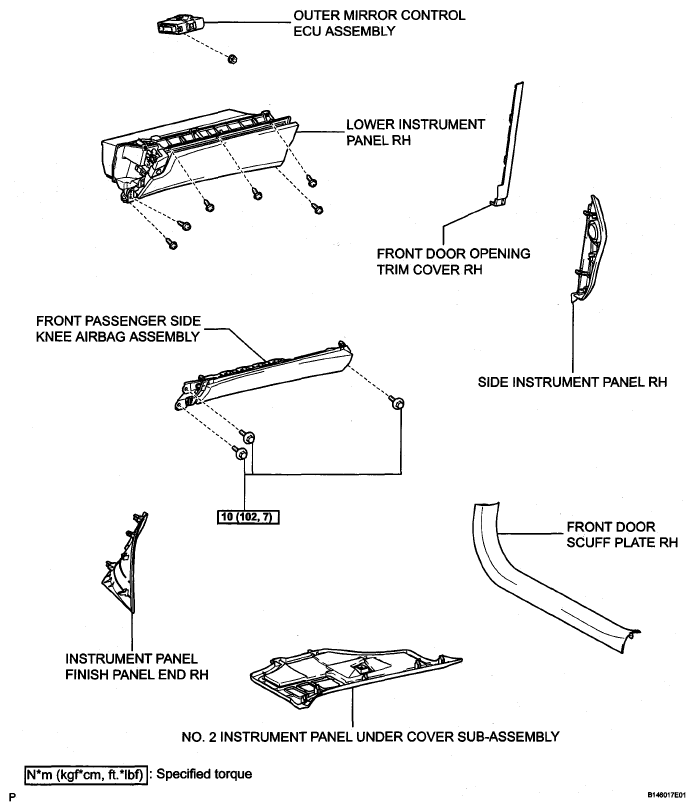

Fig 1: Identifying Outer Mirror Control ECU Replacement Components With Torque Specifications
G05253748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
