Outer Mirror Switch: Inspection

  1. INSPECT OUTER MIRROR SWITCH
    1. Inspect the outer mirror switch.
      1. Measure the resistance according to the value(s) in the table below when the switch is operated

        Standard resistance:

        Select "L" on the left/right adjustment switch

        TESTER CONNECTION SPECIFIED CONDITION

        Tester Connection Switch Position Specified Condition
        7 - 9 UP 100 Ω
        DOWN 470 Ω
        LEFT 800 Ω
        RIGHT 250 Ω
        Fig 1: Identifying Terminals Of Outer Mirror Switch Connector
        G05253688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Select "R" on the left/right adjustment switch

        TESTER CONNECTION SPECIFIED CONDITION

        Tester Connection Switch Position Specified Condition
        7 - 9 UP 100 Ω
        DOWN 470 Ω
        LEFT 800 Ω
        RIGHT 250 Ω
  2. INSPECT RETRACTABLE OUTER MIRROR SWITCH
    1. Inspect the retractable mirror switch.
      1. Measure the resistance according to the value(s) in the table below when the switch is operated.

        Standard resistance

        TESTER CONNECTION SPECIFIED CONDITION

        Tester Connection Switch Position Specified Condition
        3 - 8 Auto Below 1 Ω
        2 - 3 Fold Below 1 Ω
        1 - 4 Illumination Below 1 Ω

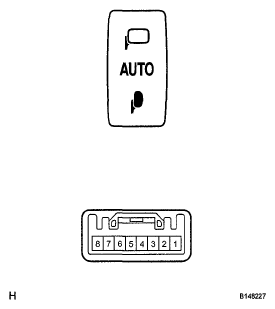

        Fig 2: Identifying Terminals Of Retractable Mirror Switch Connector
        G05838084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
