DTC B2312 Power Window Switch Malfunction: Wiring Diagram

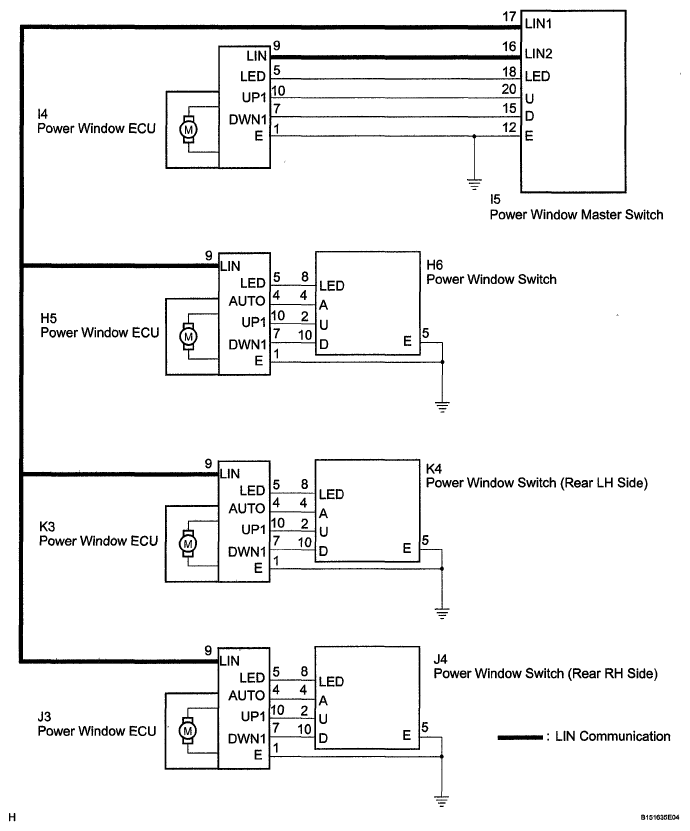

Fig 1: Power Window Switch - Wiring Diagram
G05837914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
