Rear Power Window Switch LH Circuit: Wiring Diagram

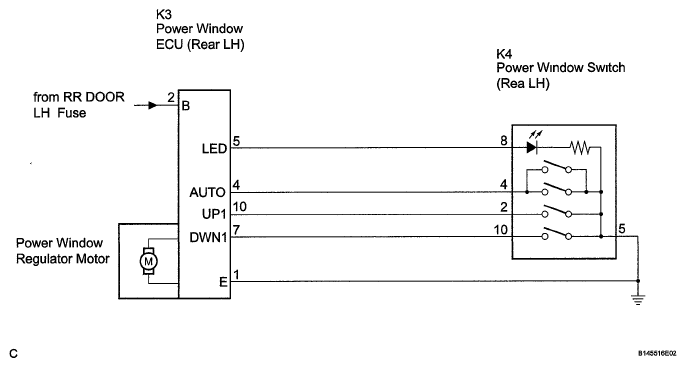

Fig 1: Rear Power Window Switch LH Circuit - Wiring Diagram
G05837923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
