Climate Control Seat and Seat Heater: Notes

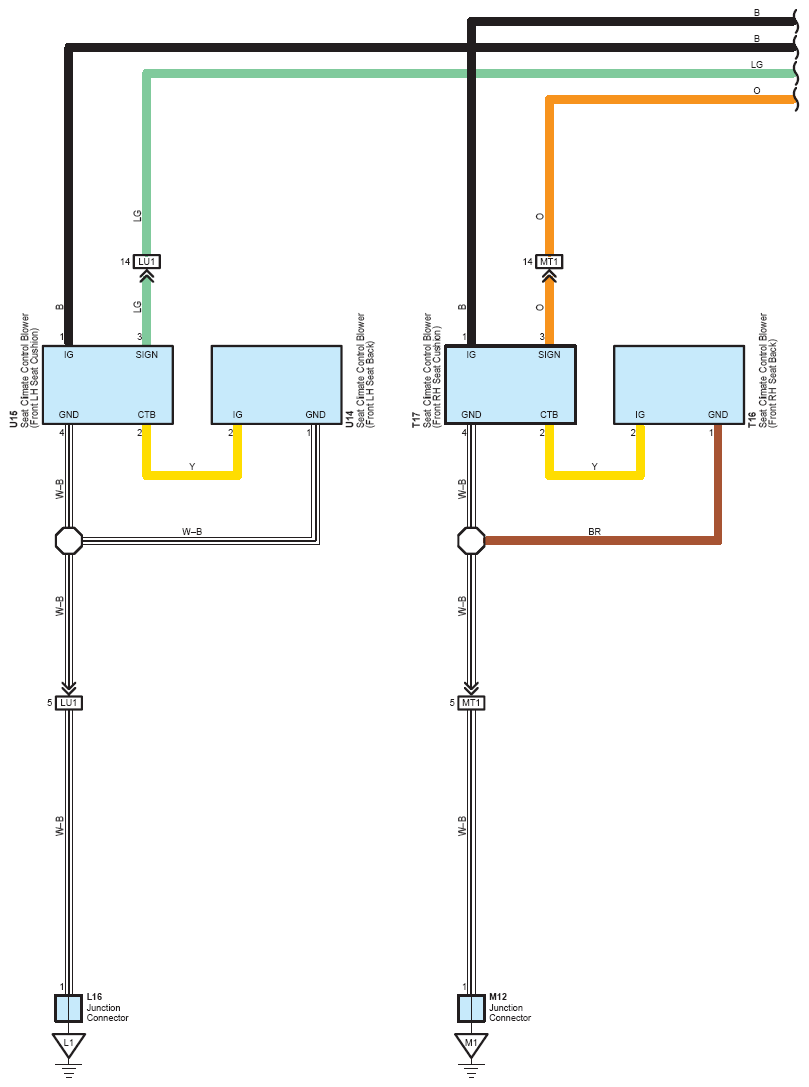

Fig 1: Climate Control Seat And Seat Heater - Circuit Diagram (1 Of 4)
G07619276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

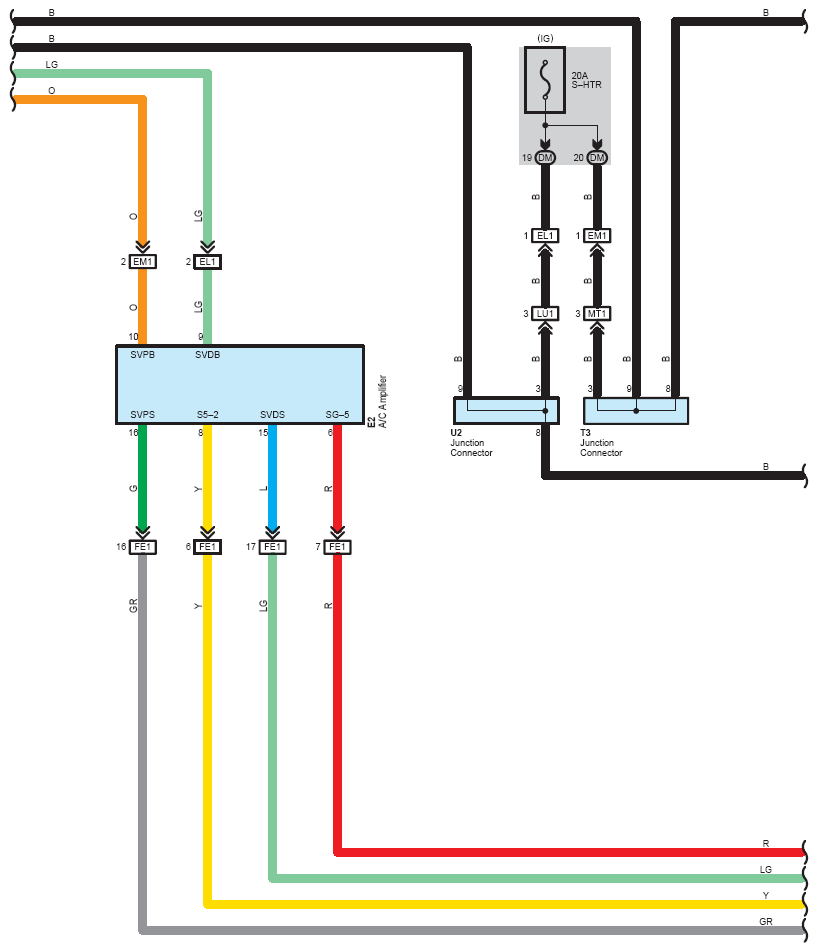

Fig 2: Climate Control Seat And Seat Heater - Circuit Diagram (2 Of 4)
G07619277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

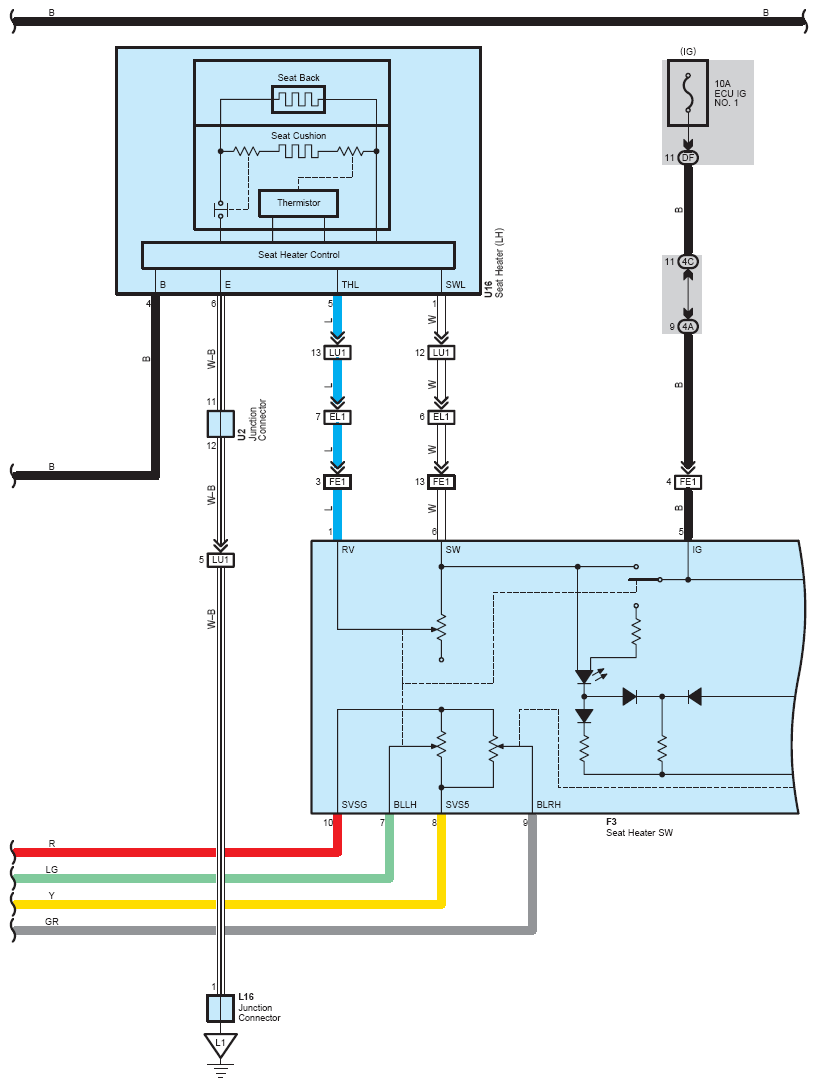

Fig 3: Climate Control Seat And Seat Heater - Circuit Diagram (3 Of 4)
G07619278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

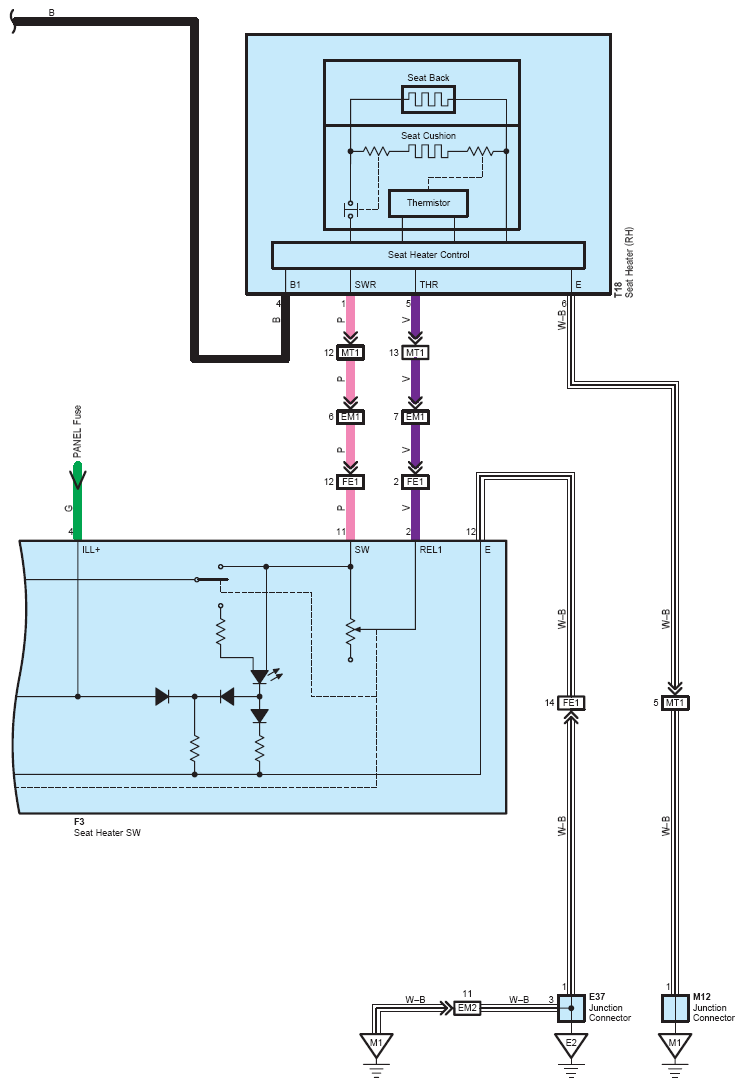

Fig 4: Climate Control Seat And Seat Heater - Circuit Diagram (4 Of 4)
G07619279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
