OEM System Circuits: Taillight: Notes

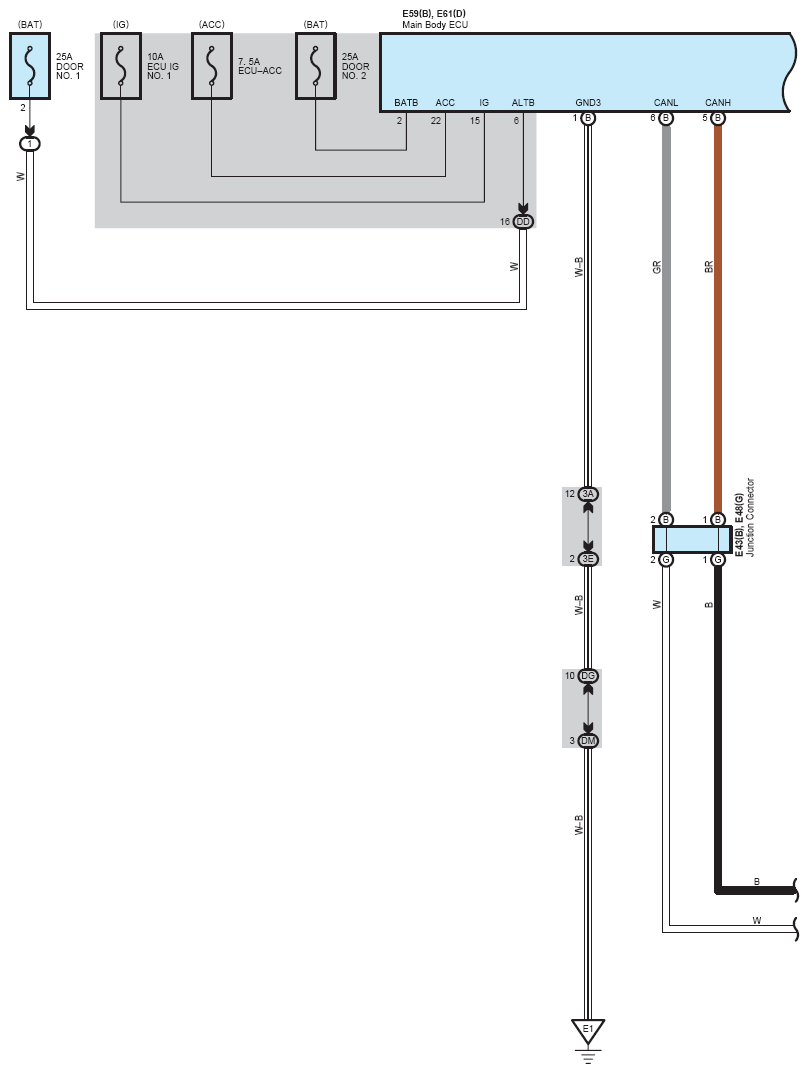

Fig 1: Taillight - Circuit Diagram (1 Of 4)
G07619149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

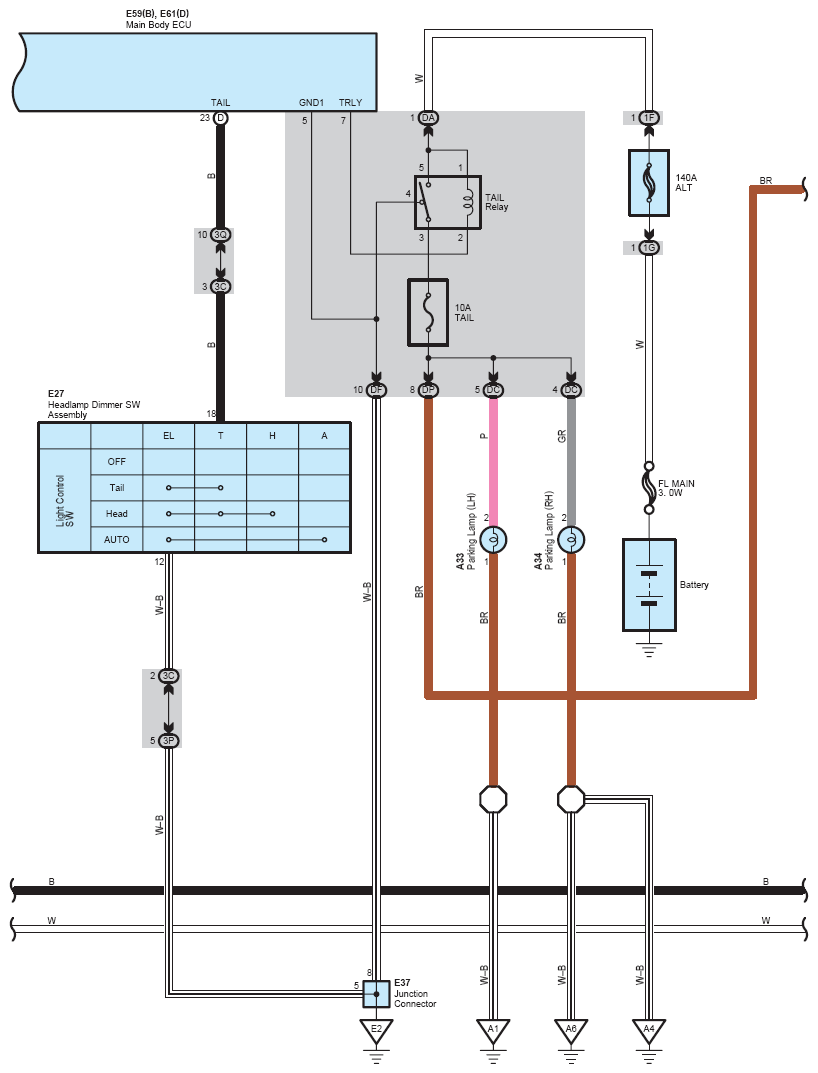

Fig 2: Taillight - Circuit Diagram (2 Of 4)
G07619150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Taillight - Circuit Diagram (3 Of 4)
G07619151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

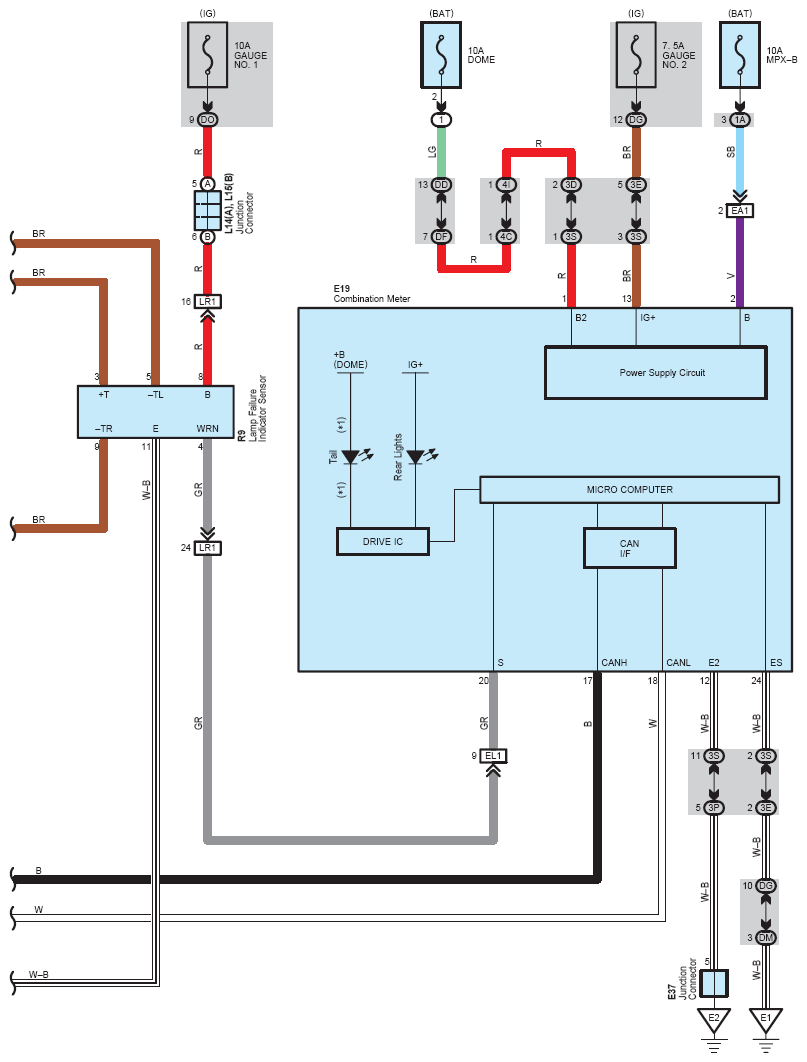

Fig 4: Taillight - Circuit Diagram (4 Of 4)
G07619152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
