Wiper and Washer with Auto Wiper System: Notes

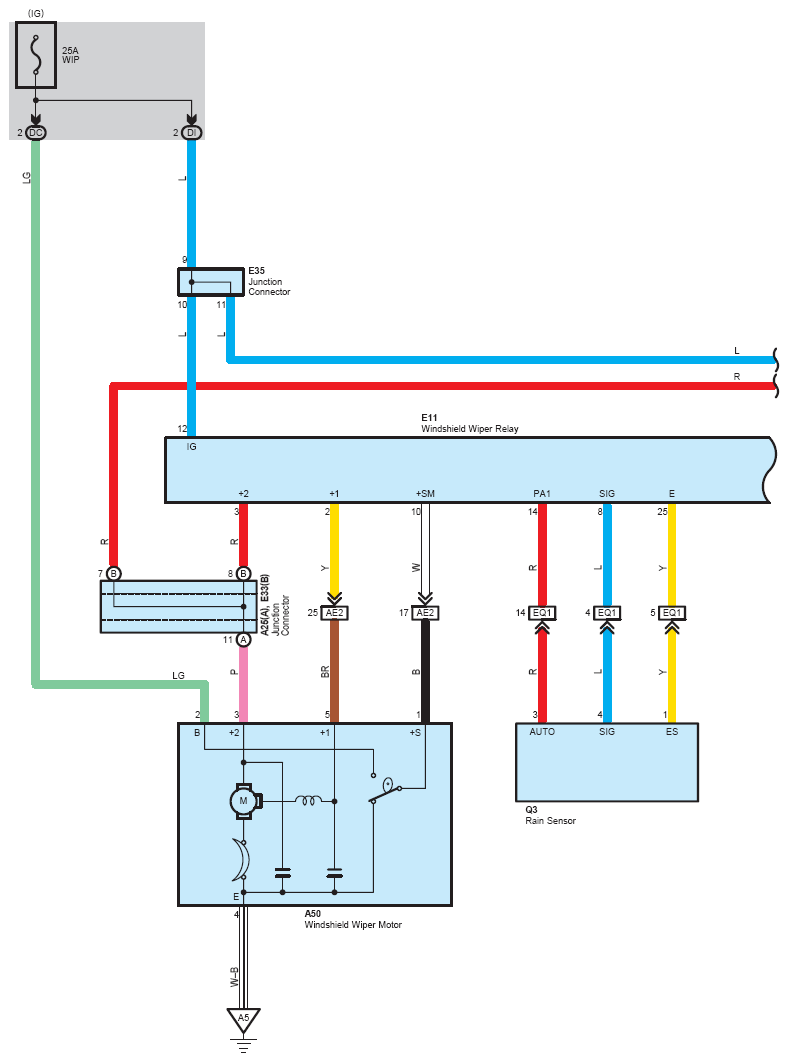

Fig 1: Wiper And Washer With Auto Wiper System - Circuit Diagram (1 Of 4)
G07619174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

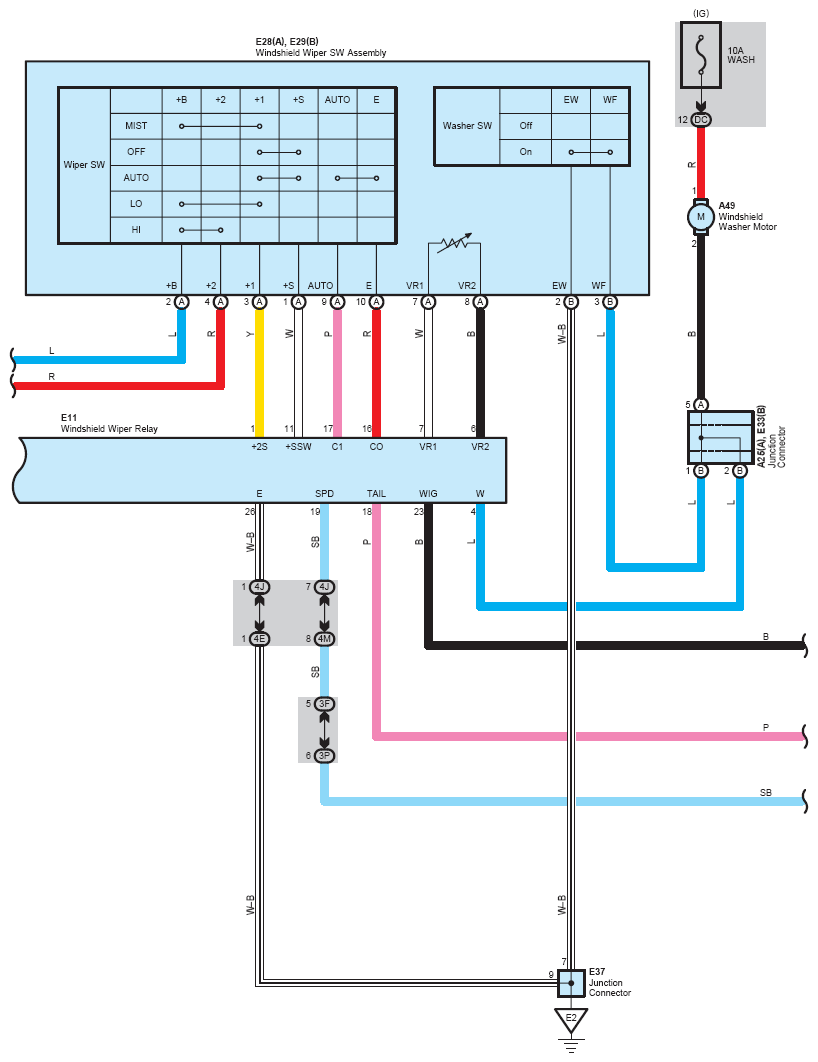

Fig 2: Wiper And Washer With Auto Wiper System - Circuit Diagram (2 Of 4)
G07619175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

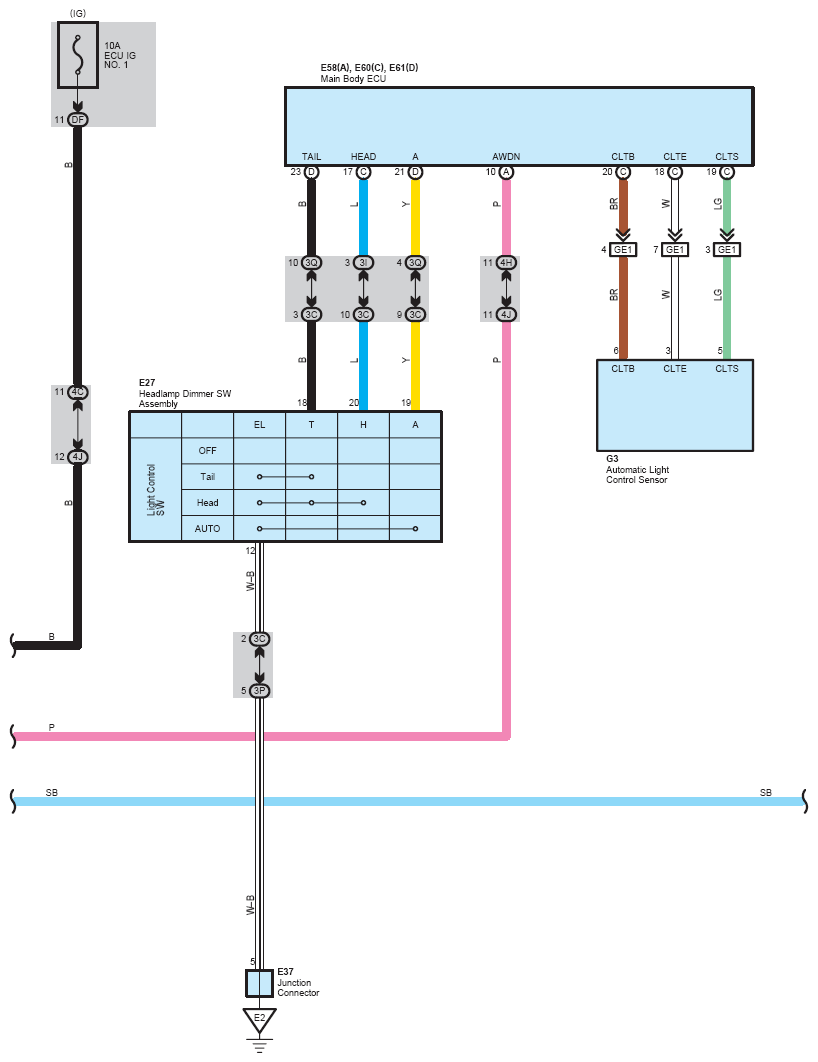

Fig 3: Wiper And Washer With Auto Wiper System - Circuit Diagram (3 Of 4)
G07619176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

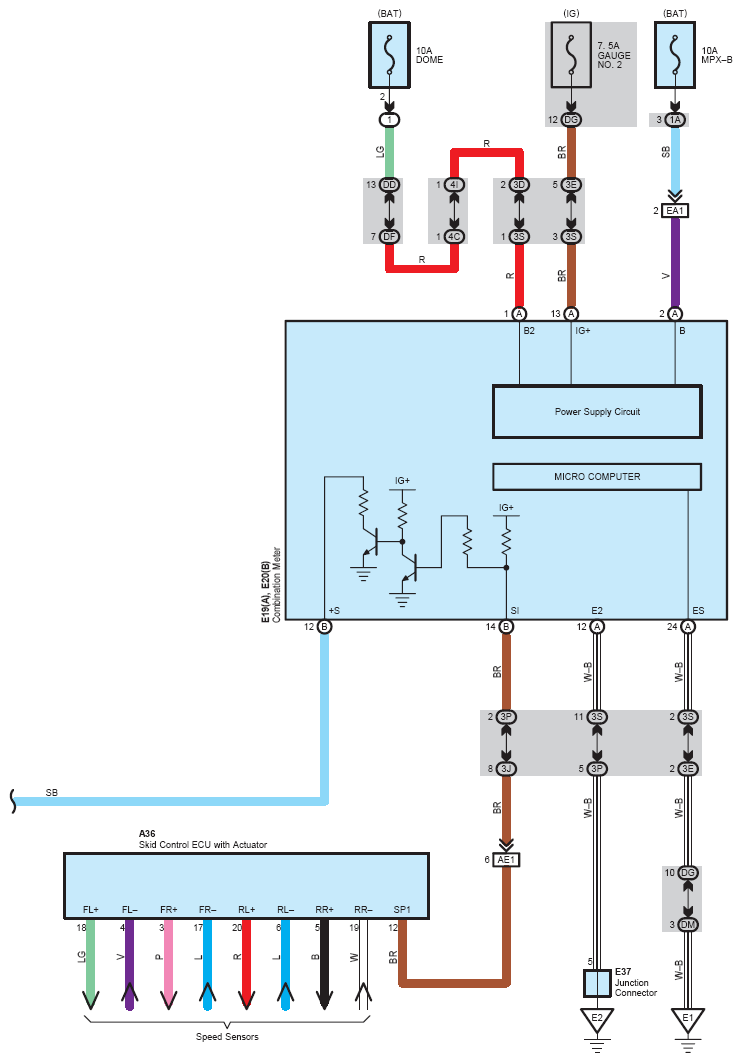

Fig 4: Wiper And Washer With Auto Wiper System - Circuit Diagram (4 Of 4)
G07619177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
