Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|

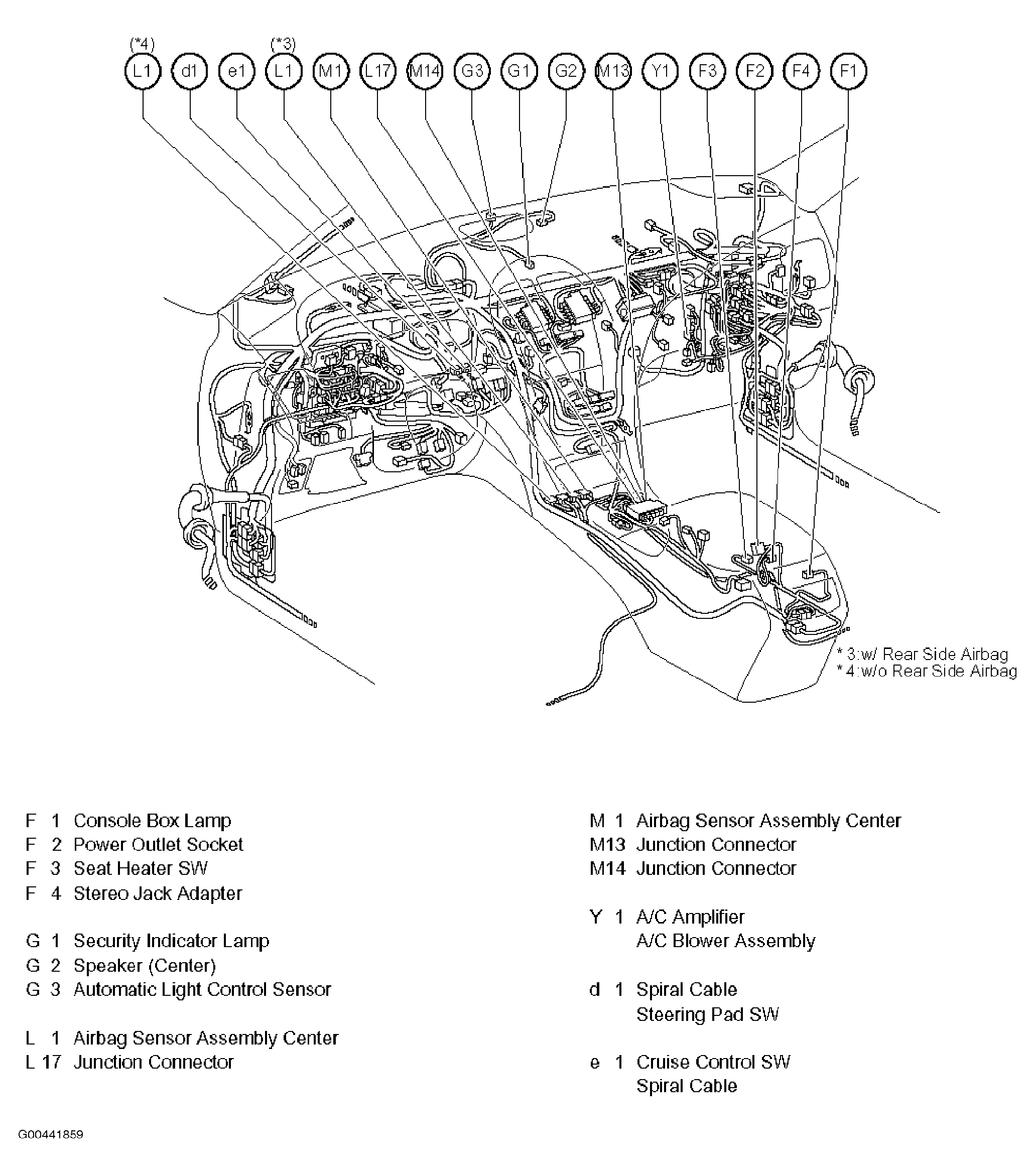

| A/C Blower Assembly | Right side of dash. See Figure. |
| Active Control Engine Mount Actuator | Front of engine compartment. See Figure. |
| Blower Motor | Right side of dash. See Figure. |
| Canister Pump Module | Near left side of trunk. See Figure. |
| Front Seat Motor (Front RH Seat Lumbar Support Control) | Base of right front seat. See Figure. |
| Front Seat Outer Belt Motor (LH) | Near left "B" pillar. See Figure. |
| Front Seat Outer Belt Motor (RH) | Near right "B" pillar. See Figure. |
| Front Suction Pump & Gage Assembly | At fuel tank assembly. See Figure. |
| Fuel Lid Opener Motor | At fuel filler door. See Figure. |
| Headlamp Leveling Motor (LH) | At left headlight assembly. See Figure. |
| Headlamp Leveling Motor (RH) | At right headlight assembly. See Figure. |
| Power Seat Motor (Front LH Seat Front Vertical Control) | Base of left front seat. See Figure. |
| Power Seat Motor (Front LH Seat Leg Support Control) | Base of left front seat. See Figure. |
| Power Seat Motor (Front LH Seat Lifter Control) | Base of left front seat. See Figure. |
| Power Seat Motor (Front LH Seat Lumbar Support Control) | In left front seat back. See Figure. |
| Power Seat Motor (Front LH Seat Reclining Control) | In left front seat. See Figure. |
| Power Seat Motor (Front LH Seat Slide Control) | Base of left front seat. See Figure. |
| Power Seat Motor (Front RH Seat Front Vertical Control) | In right front seat. See Figure. |
| Power Seat Motor (Front RH Seat Lifter Control) | In base of right front seat. See Figure. |
| Power Seat Motor (Front RH Seat Reclining Control) | Base right front seat. See Figure. |
| Power Seat Motor (Front RH Seat Slide Control) | Base of right front seat. See Figure. |
| Seat Climate Control Blower (Front LH Seat Back) | In left front seat back. See Figure. |
| Seat Climate Control Blower (Front LH Seat Cushion) | Base of left front seat. See Figure. |
| Seat Climate Control Blower (Front RH Seat Back) | In right front seat back. See Figure. |
| Seat Climate Control Blower (Front RH Seat Cushion) | Base of right front seat. See Figure. |
| Starter | Left rear of engine. See Figure. |
| Throttle Body Assembly | On intake manifold. See Figure. |
| Tilt Motor | In steering column. See Figure. |
| Windshield Washer Motor | In washer fluid reservoir. See Figure. |
| Windshield Wiper Motor | Left side of firewall. See Figure. |
