Combination Meter: Installation

INSTALL COMBINATION METER ASSEMBLY
1. Connect the 2 connectors as shown in the illustration.

  Fig 1: Connecting Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the combination meter assembly as shown in the illustration.

  Fig 2: Installing Combination Meter Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 4 screws.

  Fig 3: Locating Combination Meter Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
1. Engage the guide and 4 claws.
2. Engage the 2 clips
3. Install the instrument cluster finish panel sub-assembly with the screw.

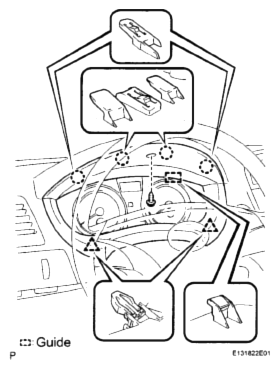

  Fig 4: Identifying Instrument Cluster Finish Panel Sub-Assembly With Claw And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING COLUMN COVER
1. Engage the claw and install the upper steering column cover

  Fig 5: Identifying Claw On Upper Steering Column Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 claws
3. Install the lower steering column cover with the 2 screws.
  Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)
INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (See INSTALLATION )
INSTALL INSTRUMENT PANEL FINISH PANEL END LH (See INSTALLATION )

Fig 6: Identifying Lower Steering Column Cover With Claw And Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SIDE INSTRUMENT PANEL LH (See INSTALLATION )
INSTALL FRONT DOOR OPENING TRIM COVER LH (See INSTALLATION )
INSTALL FRONT DOOR SCUFF PLATE LH (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal (See INITIALIZATION ).
