Vacuum Switching Valve: Components

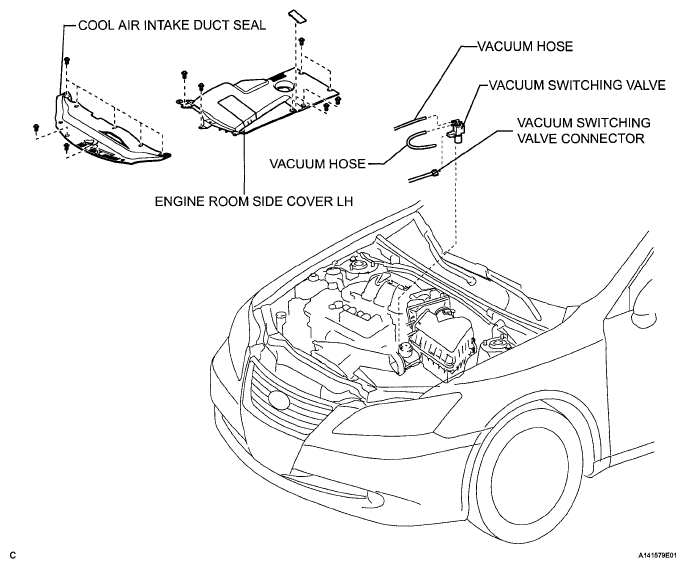

Fig 1: Identifying Vacuum Switching Valve Components
G05248634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
