Fuel Pump: Installation

INSTALL FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE
1. Install a new gasket to the fuel suction tube.
2. Install the fuel suction tube.
  NOTE:
  - Do not damage the fuel pump filter.
  - Be careful that the arm of the sender gauge does not bend.

    Fig 1: Identifying Fuel Suction Tube
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL TANK VENT TUBE SET PLATE
1. Align the mark of the set plate with the fuel suction tube.
2. Install the set plate with the 8 bolts.
  Torque: 5.9 N*m (60 kgf*cm, 52 in.*lbf)

  Fig 2: Locating Set Plate Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT FUEL PUMP TUBE SUB-ASSEMBLY
1. Install the fuel pump tube with the tube joint clip.
  NOTE:
  - Check that there are no scratches or foreign objects on the connecting part.
  - Check that the fuel tube joint is inserted securely.
  - Check that the tube joint clip is correctly located on the collar of the fuel tube joint.
  - After installing the tube joint clip, check that the fuel tube joint is pulled out of position.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).
INSPECT FOR FUEL LEAK (See ON-VEHICLE INSPECTION )

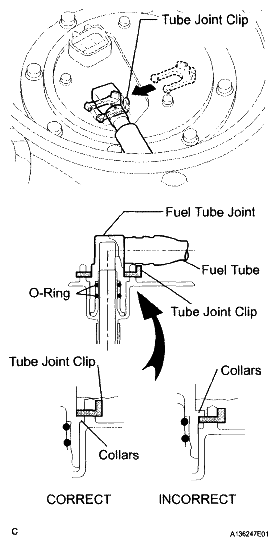

Fig 3: Identifying Fuel Pump Tube & Tube Joint Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR FLOOR SERVICE HOLE COVER
1. Connect the fuel pump connector.
2. Install the rear floor service hole cover with new butyl tape.

  Fig 4: Locating Rear Floor Service Hole Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT CUSHION ASSEMBLY (See INSTALLATION )
