EVAP System: Wiring Diagram

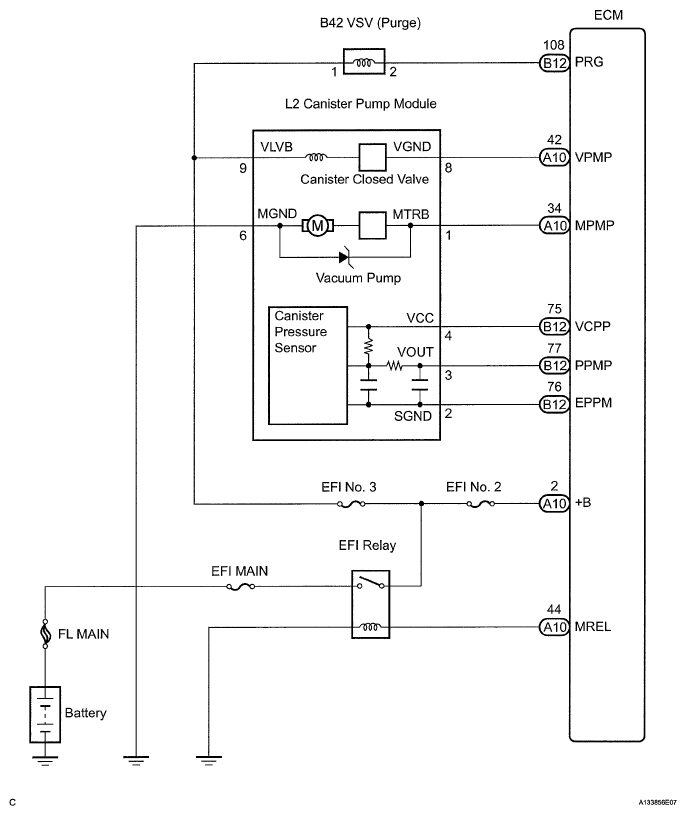

Fig 1: Canister Pump Module - Wiring Diagram
G05835399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
