Amplifier Antenna: Components

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Rear Center Speaker Replacement Components With Torque Specifications (1 Of 3)
G05251828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Rear Center Speaker Replacement Components With Torque Specifications (2 Of 3)
G05253061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

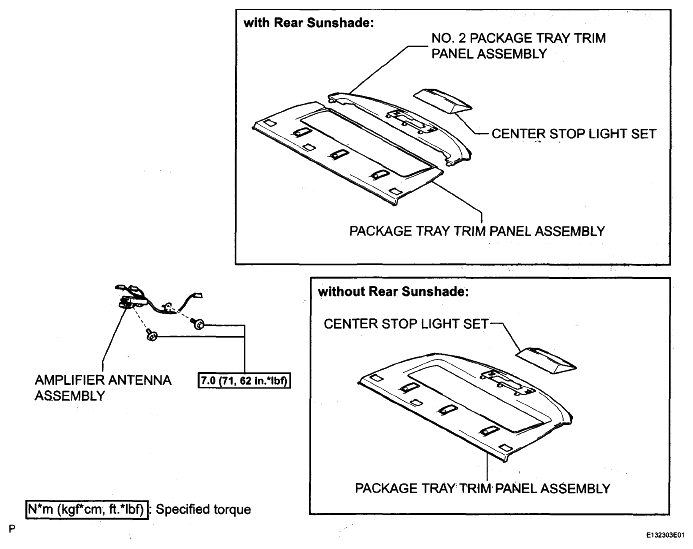

Fig 3: Amplifier Antenna Replacement Components With Torque Specifications (3 Of 3)
G05253093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
