Audio Terminal: Components

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

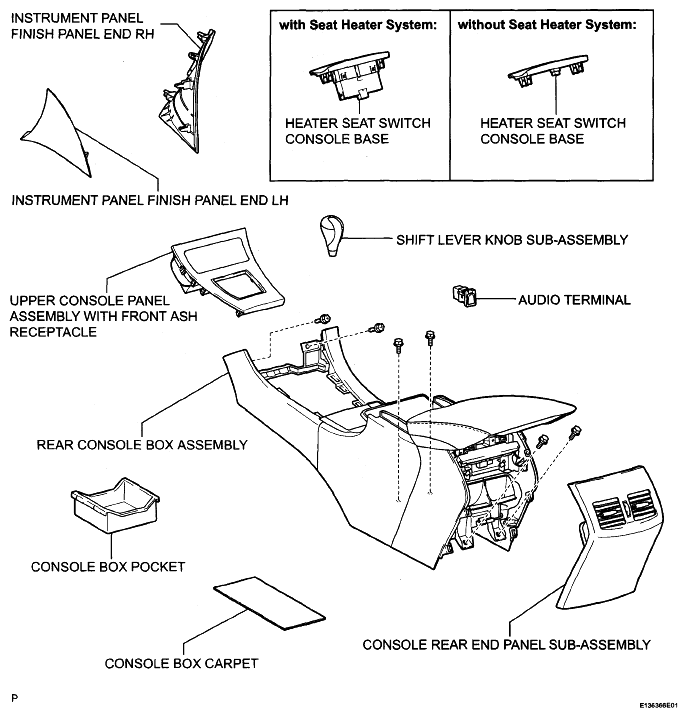

Fig 1: Identifying Audio Terminal Components
G05253096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
