Radio Receiver: Installation

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL RADIO RECEIVER ASSEMBLY (w/o Navigation System)
    1. Engage the 2 claws and 6 clips and install the radio receiver assembly.

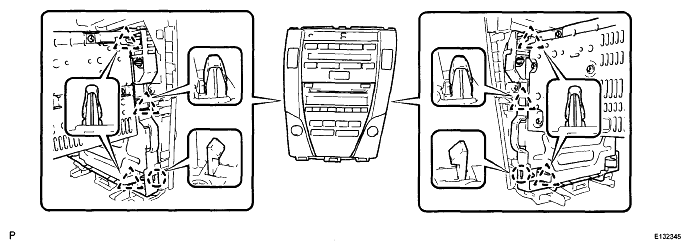

      Fig 1: Identifying Radio Receiver With Bolts And Clips (W/O Navigation System)
      G05253018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 RADIO BRACKET (w/o Navigation System)
    1. Install the No. 2 radio bracket with the 4 bolts and screw.
      Fig 2: Locating No.2 Radio Bracket Bolts And Screw (W/O Navigation System)
      G05253017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 RADIO BRACKET (w/o Navigation System)
    1. Install the No. 1 radio bracket with the 4 bolts and screw.
    Fig 3: Locating No.1 Radio Bracket Bolts And Screw (W/O Navigation System)
    G05253016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)
    1. Connect each connector.
    2. Engage the 2 clips.
    3. Install the integration control panel with radio receiver assembly with the 4 bolts.

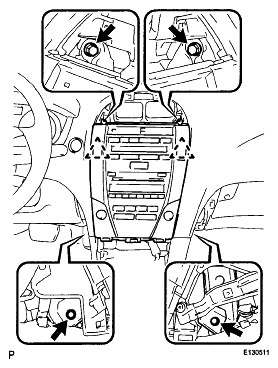

      Fig 4: Locating Radio Receiver Bolts And Clips
      G05253015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL RADIO RECEIVER ASSEMBLY (w/ Navigation System)
    1. Engage the 2 claws and 4 clips and install the radio receiver assembly.
      Fig 5: Identifying Radio Receiver Assembly Claws And Clips (W/ Navigation System)
      G05253022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 2 RADIO BRACKET (w/ Navigation System)
    1. Install the No. 2 radio bracket with the 6 bolts.
      Fig 6: Locating No. 2 Radio Bracket Bolts (W/ Navigation System)
      G05253021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 1 RADIO BRACKET (w/ Navigation System)
    1. Install the No. 1 radio bracket with the 6 bolts.
    Fig 7: Locating No. 1 Radio Bracket Bolts (W/ Navigation System)
    G05253020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)
    1. Connect each connector.
    2. Engage the 2 clips.
    3. Install the multi-display with radio receiver assembly with the 4 bolts.

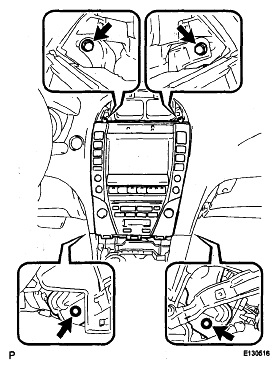

      4. Fig 8: Locating Multi-Display With Radio Receiver Assembly Bolts
      G05253030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL INSTRUMENT PANEL FINISH PANEL END LH  (See INSTALLATION )
  10. INSTALL INSTRUMENT PANEL FINISH PANEL END RH  (See INSTALLATION )
  11. INSTALL UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE  (See INSTALLATION )
  12. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  13. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY  (See INSTALLATION )
  14. ADJUST CLOCK
