Section 99 (Navigation): Multi-Display: Installation

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL MULTI-DISPLAY ASSEMBLY
    1. Engage the 2 claws and 4 clips and install the multi-display assembly.

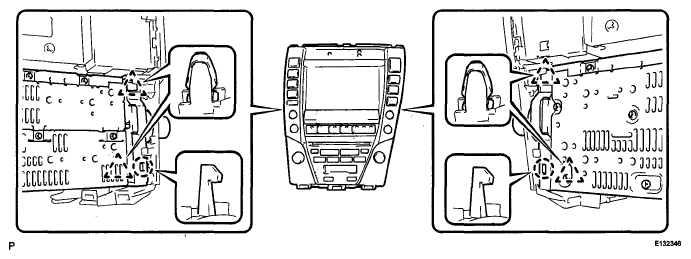

      Fig 1: Identifying Multi-Display Assembly Claws And Clips
      G05253354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 RADIO BRACKET  (See INSTALLATION )
  3. INSTALL NO. 1 RADIO BRACKET (See  INSTALLATION  ) INSTALL MULTI-DISPLAY WITH RADIO RECEIVER
  4. ASSEMBLY  (See INSTALLATION )
  5. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  6. INSTALL INSTRUMENT PANEL FINISH PANEL END RH  (See INSTALLATION )
  7. INSTALL INSTRUMENT PANEL FINISH PANEL END LH  (See INSTALLATION )
  8. INSTALL UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE  (See INSTALLATION )
  9. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY  (See INSTALLATION )
  10. INSERT MAP DISC (See  INSTALLATION   )
  11. ADJUST CLOCK
