Section 99 (Navigation): Multi-Display: Removal

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. EJECT MAP DISC (See  REMOVAL   )
  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY  (See REMOVAL )
  3. REMOVE UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE  (See REMOVAL )
  4. REMOVE INSTRUMENT PANEL FINISH PANEL END LH  (See REMOVAL )
  5. REMOVE INSTRUMENT PANEL FINISH PANEL END RH  (See REMOVAL )
  6. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY  (See REMOVAL )
  7. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY  (See REMOVAL )
  8. REMOVE NO. 1 RADIO BRACKET  (See REMOVAL )
  9. REMOVE NO. 2 RADIO BRACKET  (See REMOVAL )
  10. REMOVE MULTI-DISPLAY ASSEMBLY
    1. Disengage the 2 claws and 4 clips.

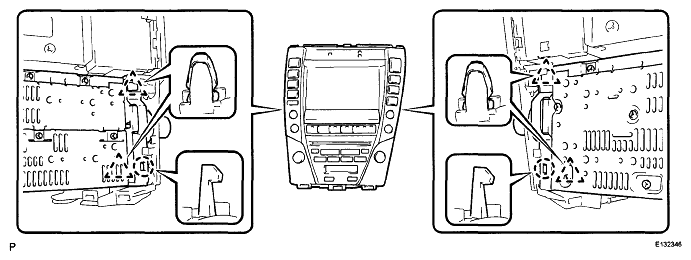

      Fig 1: Identifying Multi-Display Assembly Claws And Clips
      G05253022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the multi-display assembly.
