INSTALL NAVIGATION ECU
1. Install the navigation ECU as shown in the illustration.

  Fig 1: Installing Navigation ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 screws.

  Fig 2: Identifying Navigation Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 screws.

  Fig 3: Identifying Navigation Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect each connector.

  Fig 4: Identifying Navigation ECU Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL MULTI-DISPLAY ASSEMBLY
1. Engage the 2 claws and 4 clips and install the multi-display assembly.

  Fig 5: Identifying Multi-Display Assembly Claws And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 RADIO BRACKET (See INSTALLATION )
INSTALL NO. 1 RADIO BRACKET (See INSTALLATION )
INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (See INSTALLATION )
INSTALL INSTRUMENT PANEL FINISH PANEL END LH (See INSTALLATION )
INSTALL INSTRUMENT PANEL FINISH PANEL END RH (See INSTALLATION )
INSTALL UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE (See INSTALLATION )
INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY (See INSTALLATION )
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (See INSTALLATION )
INSERT MAP DISC
1. Turn the engine switch on (ACC).
2. Insert the map disc.

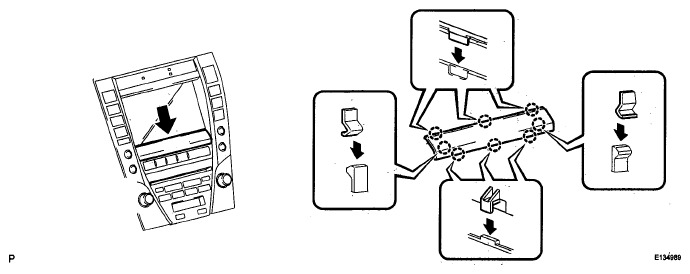

3. Engage the 8 claws and install the cover as shown in the illustration.

  Fig 6: Identifying Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Turn the engine switch off.
ADJUST CLOCK
