Inspection Procedure

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

After the inspection is completed, clear the DTCs.

CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - TELEVISION CAMERA ASSEMBLY)

Disconnect the E63 connector from the multi-display.
Disconnect the R15 connector from the television camera assembly.

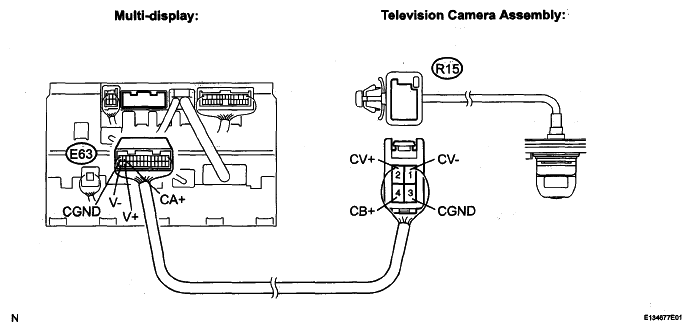

Fig 1: Checking Harness And Connector (Multi-Display - Television Camera Assembly)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value (s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection (Terminal No.)	Condition	Specified Condition
CB+ (R15-4) - CA+ (E63-13)	Always	Below 1 Ω
CGND (R15-3) - CGND (E63-14)	Always	Below 1 Ω
CV+ (R15-2) - V+ (E63-27)	Always	Below 1 Ω
CV- (R15-1) - V- (E63-28)	Always	Below 1 Ω
CB+ (R15-4) - Body ground	Always	10 kΩ or higher
CGND (R15-3) - Body ground	Always	10 kΩ or higher
CV+ (R15-2) - Body ground	Always	10 kΩ or higher
CV- (R15-1) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

INSPECT MULTI-DISPLAY

Reconnect the multi-display E63 connector.

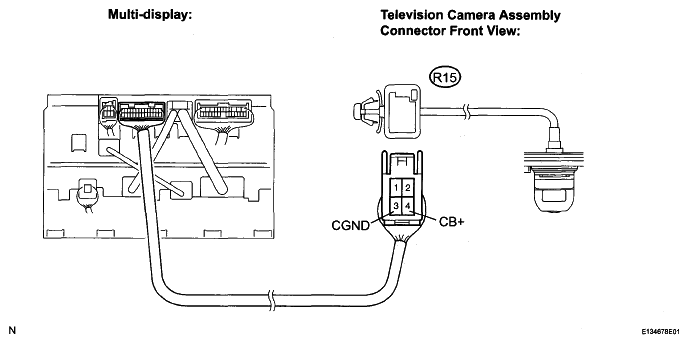

Fig 2: Inspecting Multi-Display
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the voltage according to the value (s) in the table below.

Standard voltage

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection (Terminal No.)	Condition	Specified Condition
CB+ (R15-4) - CGND (R15-3)	Engine switch on (IG), shift lever R position	Approx. 6 V

NG: REPLACE MULTI-DISPLAY

OK: REPLACE TELEVISION CAMERA ASSEMBLY
