Inspection Procedure

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

CHECK HARNESS AND CONNECTOR (OVERHEAD J/B - MULTI-DISPLAY)

Disconnect the overhead J/B connector Q2 and multi-display connector E63.

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
ACC - MACC	Always	Below 1 Ω
MI1+ - MIN+	Always	Below 1 Ω
MIC- - MIN-	Always	Below 1 Ω
TSW- - SGND	Always	Below 1 Ω
ACC - Body ground	Always	10 kΩ or higher
MI1+ - Body ground	Always	10 kΩ or higher
MIC- - Body ground	Always	10 kΩ or higher

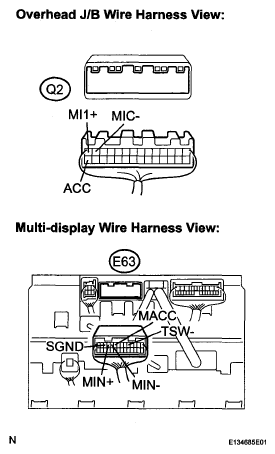

Fig 1: Identifying Overhead J/B Connector Q2 And Multi-Display Connector E63

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

INSPECT MULTI-DISPLAY

Reconnect the multi-display connector E63.

Measure the voltage according to the value(s) in the table below.

Standard voltage

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
MACC - Body ground	Engine switch on (ACC)	4 to 6V

Fig 2: Identifying Multi-Display Connector E63

NG: REPLACE MULTI-DISPLAY

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
