Shift Lever: Adjustment

ADJUST SHIFT LEVER POSITION
1. Move the shift lever to the N position.
2. Remove the nut and transmission control cable from the control shaft lever.

  Fig 1: Locating Control Shaft Lever Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Align the protrusions of the park/neutral position switch.

  Fig 2: Aligning Protrusions Of Park/Neutral Position Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

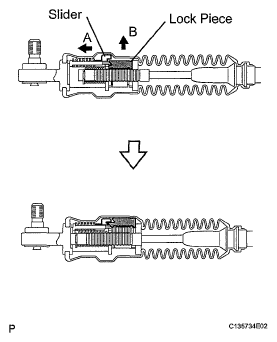

4. Move the slider in the direction indicated by arrow A and pull up the lock piece in the direction indicated by arrow B.
  NOTE: Do not damage the boot.

  Fig 3: Moving Slider
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the transmission control cable assembly to the control shaft lever with the nut.
  Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)

  Fig 4: Locating Control Shaft Lever Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Push in the lock piece.
  NOTE: Firmly push in the lock piece until the slider lock is engaged.
7. Start the engine and make sure that the vehicle moves forward when moving the lever from the N to the D position and moves rearward when moving it to the R position.
  If it becomes hard to move the shift lever, readjust the shift lever position.

  Fig 5: Pushing Lock Piece
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
