Shift Solenoid Valve: Components

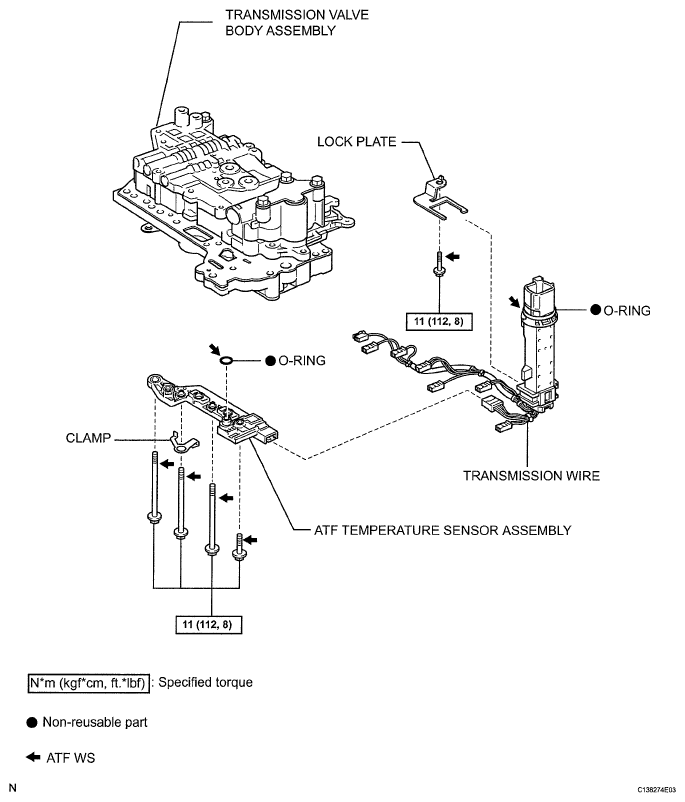

Fig 1: Shift Solenoid Valve Replacement Components With Torque Specifications (1 Of 2)
G05836557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

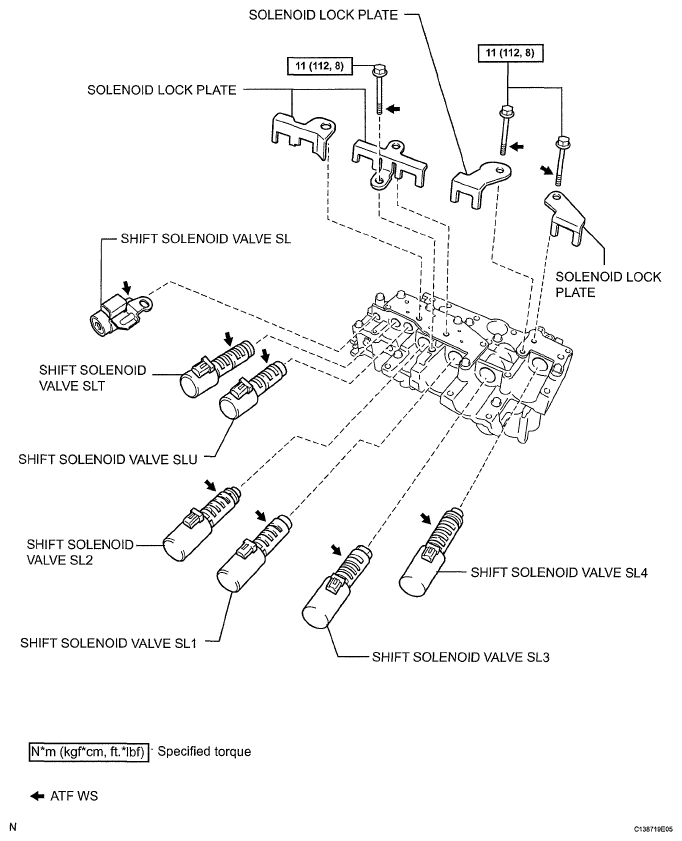

Fig 2: Shift Solenoid Valve Replacement Components With Torque Specifications (2 Of 2)
G05836558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
