Torque Converter Clutch And Drive Plate: Components

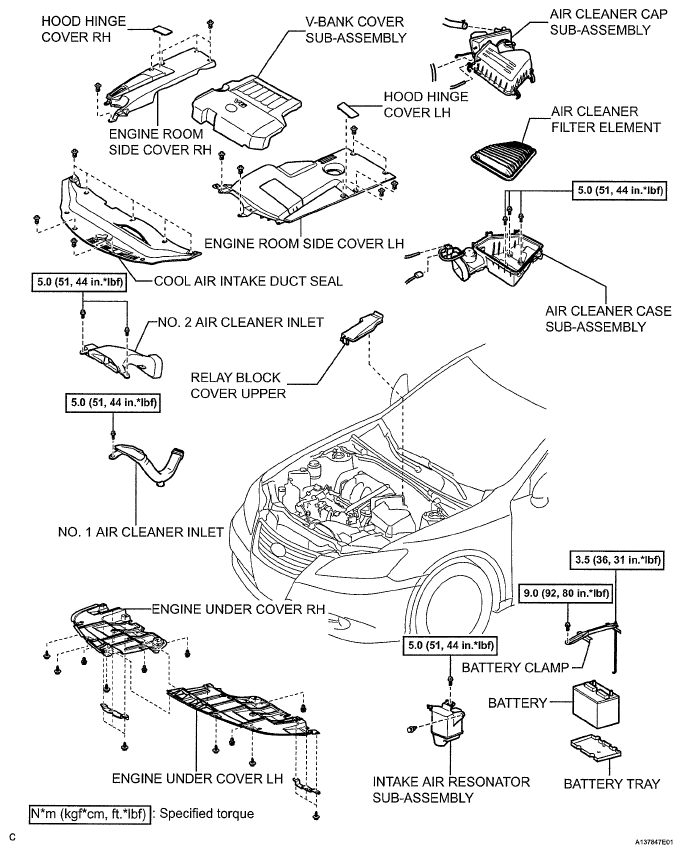

Fig 1: Torque Converter Clutch And Drive Plate Replacement Components With Torque Specifications (1 Of 6)
G05836302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

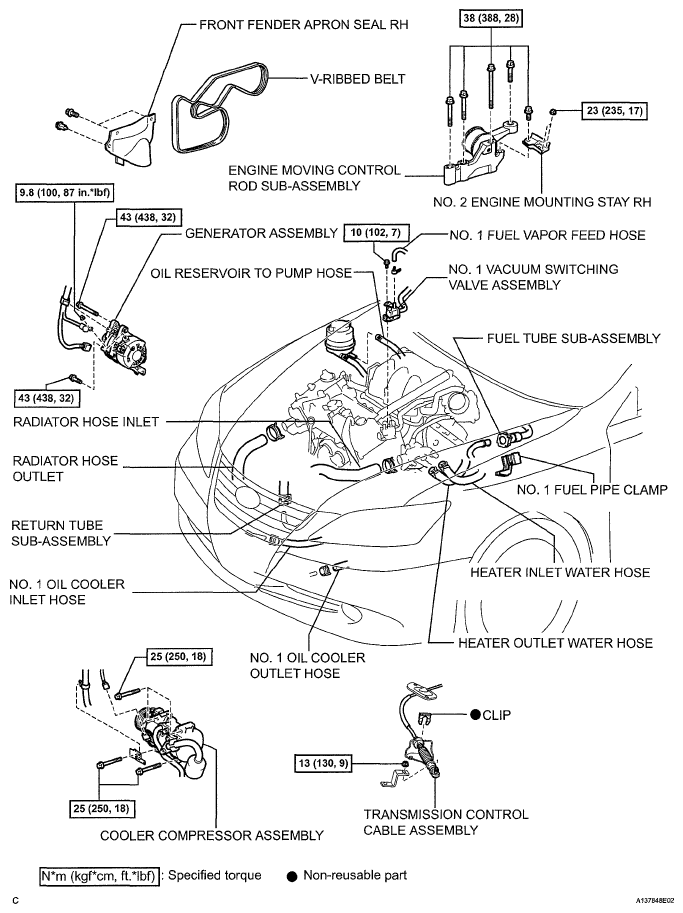

Fig 2: Torque Converter Clutch And Drive Plate Replacement Components With Torque Specifications (2 Of 6)
G05836303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

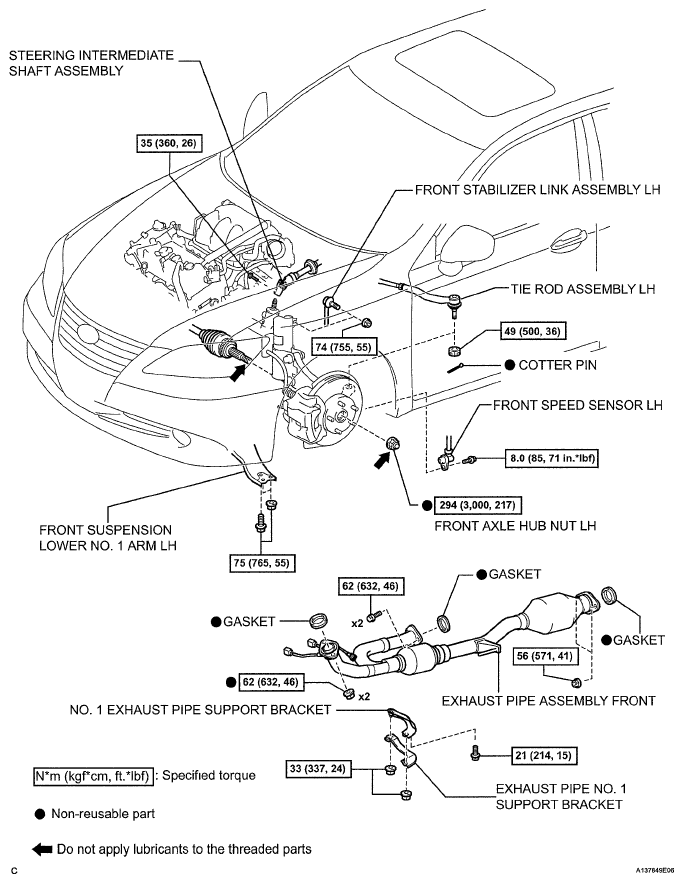

Fig 3: Torque Converter Clutch And Drive Plate Replacement Components With Torque Specifications (3 Of 6)
G05836304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

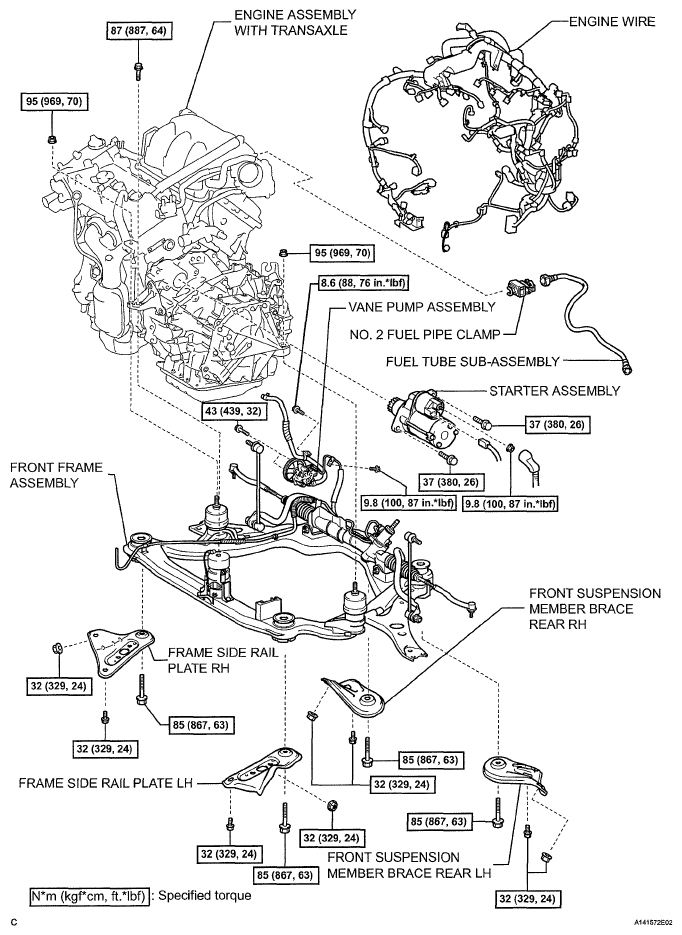

Fig 4: Torque Converter Clutch And Drive Plate Replacement Components With Torque Specifications (4 Of 6)
G05836305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

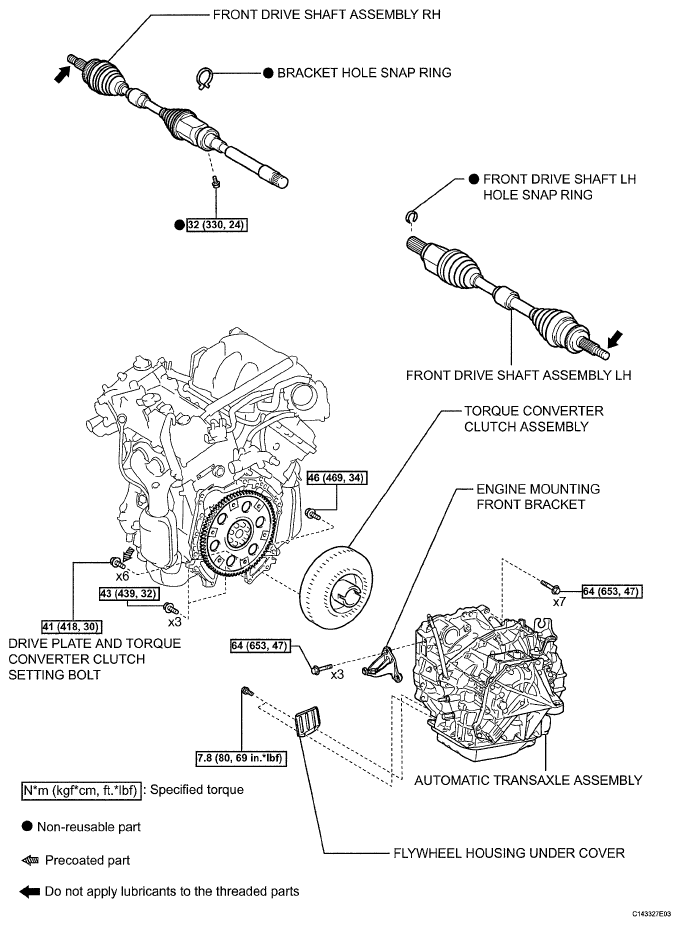

Fig 5: Torque Converter Clutch And Drive Plate Replacement Components With Torque Specifications (5 Of 6)
G05836306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

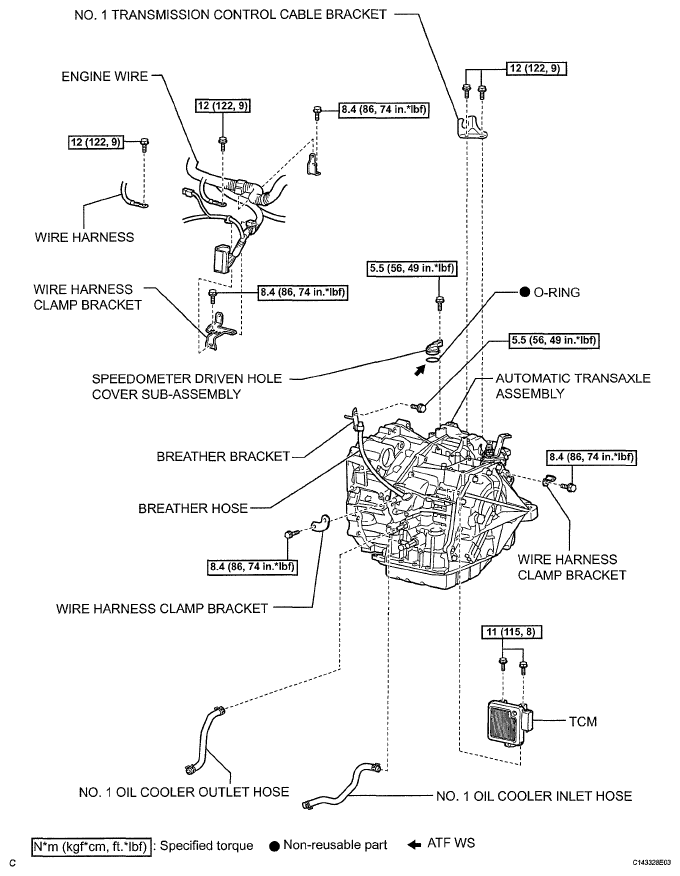

Fig 6: Torque Converter Clutch And Drive Plate Replacement Components With Torque Specifications (6 Of 6)
G05836307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
