On-Vehicle Inspection

INSPECT POWER WINDOW SWITCH

Measure the resistance according to the value (s) in the table below.

Standard resistance

RESISTANCE SPECIFICATION CHART

Tester Connection	Switch Condition	Specified Condition
2 (U) - 5 (E)	Manual UP operation	Below 1 Ω
10 (D) - 5 (E)	Manual DOWN operation	Below 1 Ω
4 (A) - 5 (E)	AUTO UP / DOWN operation	Below 1 Ω

If the result is not as specified, replace the power window switch.

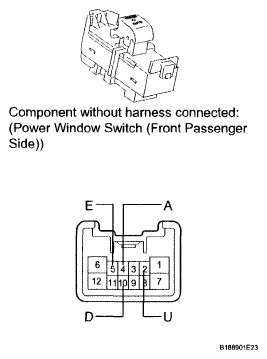

Fig 1: Identifying Front Passenger Side Power Window Switch Connector Terminal

G05811747

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
