DTC B2312 Power Window Switch Malfunction: Wiring Diagram

Driver Side:

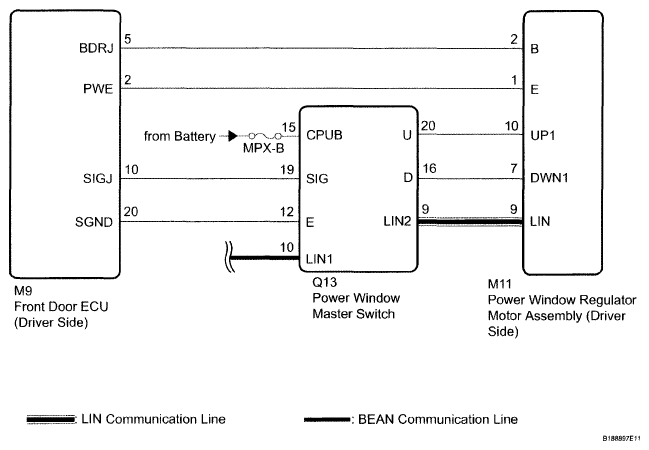

Fig 1: Power Window Switch Malfunction - Wiring Diagram (Driving Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Front Passenger Side:

Fig 2: Power Window Switch Malfunction - Wiring Diagram (Front Passenger Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Rear LH Side:

Fig 3: Power Window Switch Malfunction - Wiring Diagram (Rear LH Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Rear RH Side:

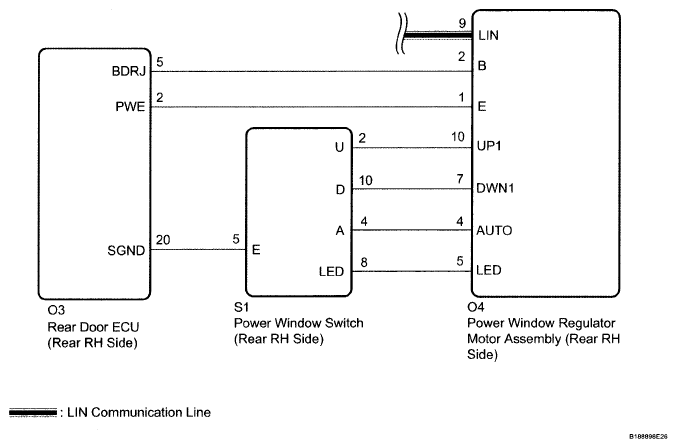

Fig 4: Power Window Switch Malfunction - Wiring Diagram (Rear RH Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
