On-Vehicle Inspection

  1. INSPECT POWER WINDOW SWITCH (for Rear LH)
    1. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION CHART

      Tester Connection Switch Condition Specified Condition
      2 (U) - 5 (E) Manual UP operation Below 1 Ω
      10 (D) - 5 (E) Manual DOWN operation Below 1 Ω
      4 (A) - 5 (E) AUTO UP / DOWN operation Below 1 Ω

      If the result is not as specified, replace the power window switch.

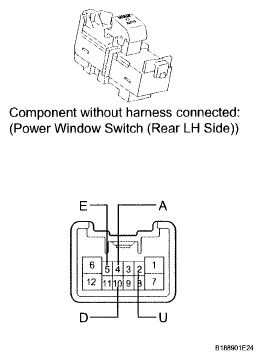

      Fig 1: Identifying Rear Power Window Switch Connector Terminal
      G05811748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT POWER WINDOW SWITCH (for Rear RH)
    1. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION CHART

      Tester Connection Switch Condition Specified Condition
      2 (U) - 5 (E) Manual UP operation Below 1 Ω
      10 (D) - 5 (E) Manual DOWN operation Below 1 Ω
      4 (A) - 5 (E) AUTO UP / DOWN operation Below 1 Ω

      If the result is not as specified, replace the power window switch.

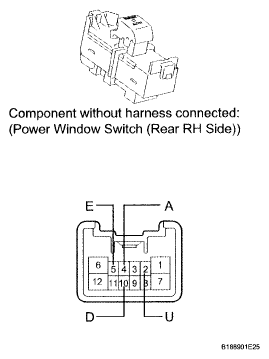

      Fig 2: Identifying Power Window Switch Connector Terminal (For Rear RH)
      G05811749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
