Ignition Coil: Components

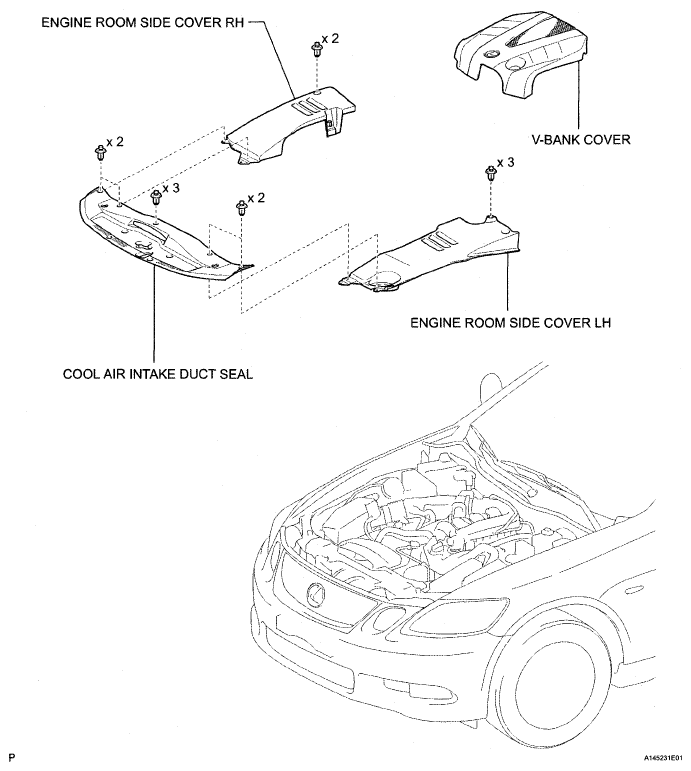

Fig 1: Ignition Coil Replacement Components With Torque Specifications (1 Of 2)
G05287688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

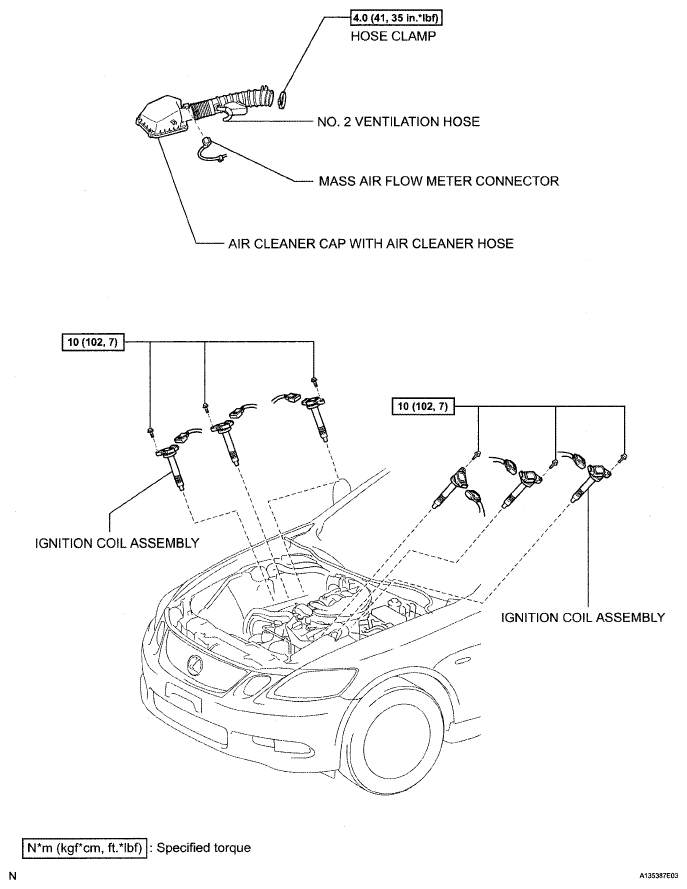

Fig 2: Ignition Coil Replacement Components With Torque Specifications (2 Of 2)
G05287689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
