Parts Location

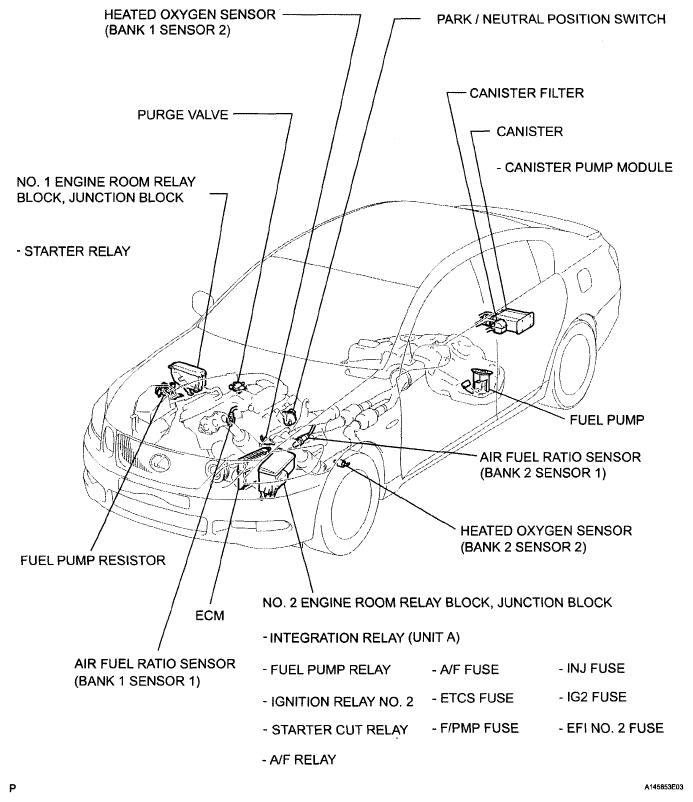

Fig 1: Identifying 2Gr-Fse Engine Control System Parts Location (1 Of 4)
G05803166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

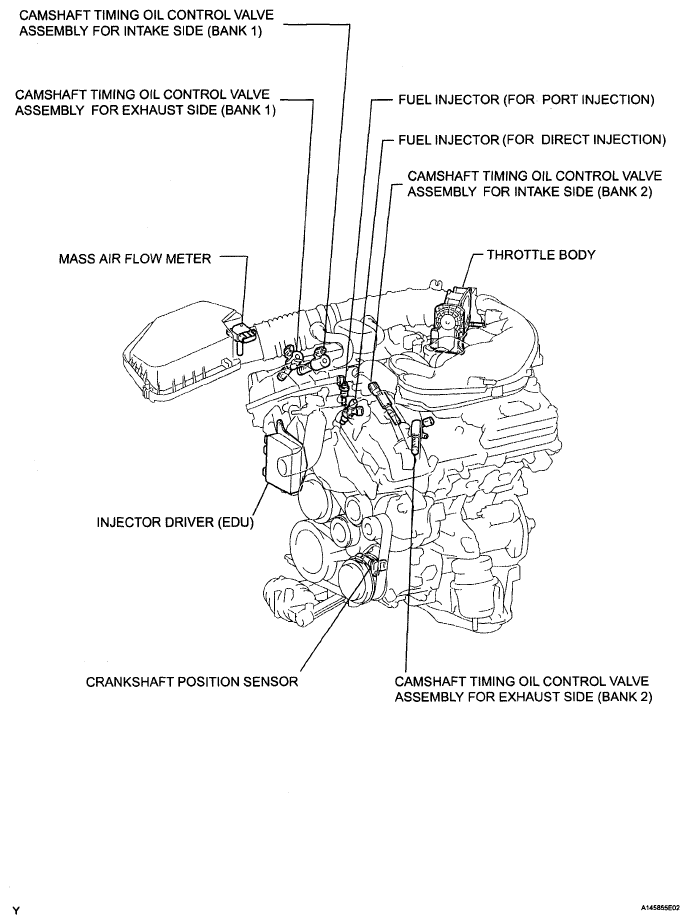

Fig 2: Identifying 2Gr-Fse Engine Control System Parts Location (2 Of 4)
G05803167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

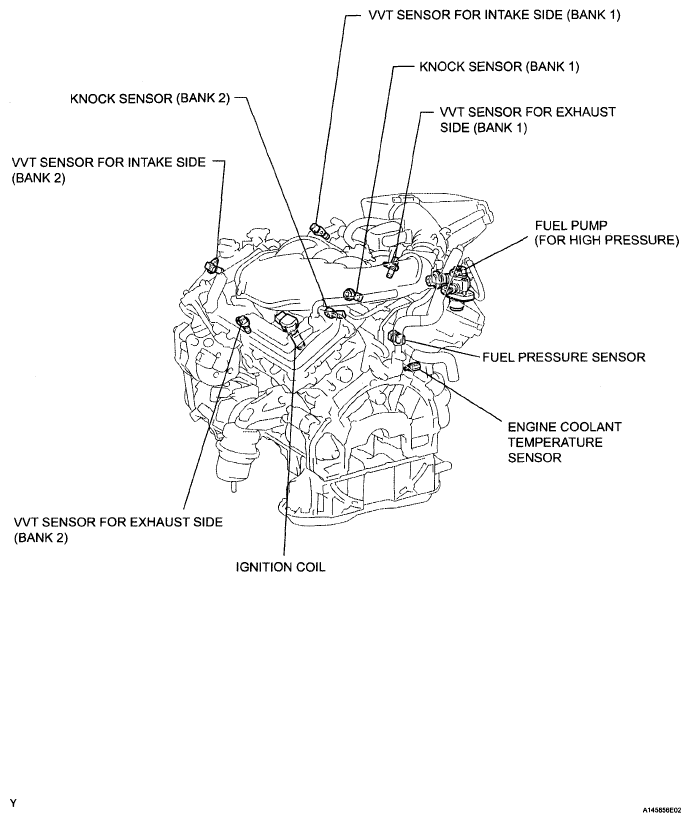

Fig 3: Identifying 2Gr-Fse Engine Control System Parts Location (3 Of 4)
G05803168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

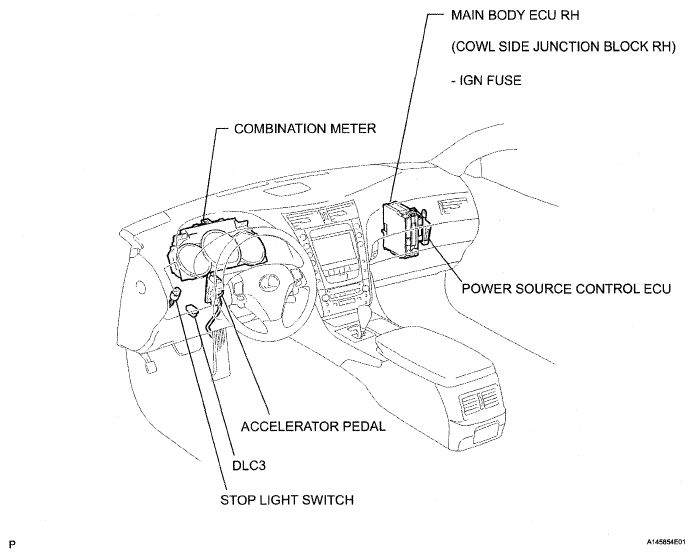

Fig 4: Identifying 2Gr-Fse Engine Control System Parts Location (4 Of 4)
G05285014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
