Accelerator Pedal: Installation

NOTE:

Avoid physical shock to the accelerator pedal.
Do not disassemble the accelerator pedal assembly.

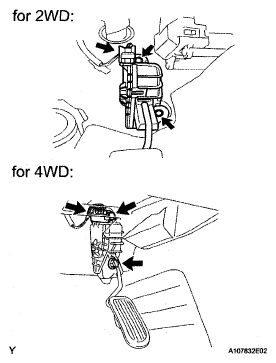

Fig 1: Locating Accelerator Pedal Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL ACCELERATOR PEDAL
1. Install the accelerator pedal with the 2 bolts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
2. Connect the accelerator pedal position sensor connector.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

  Fig 2: Locating Accelerator Pedal Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
