Engine Coolant Temperature Sensor: Components

Fig 1: Engine Coolant Temperature Sensor With Torque Specification (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Engine Coolant Temperature Sensor With Torque Specification (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Coolant Temperature Sensor With Torque Specification (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Engine Coolant Temperature Sensor With Torque Specification (4 Of 5)

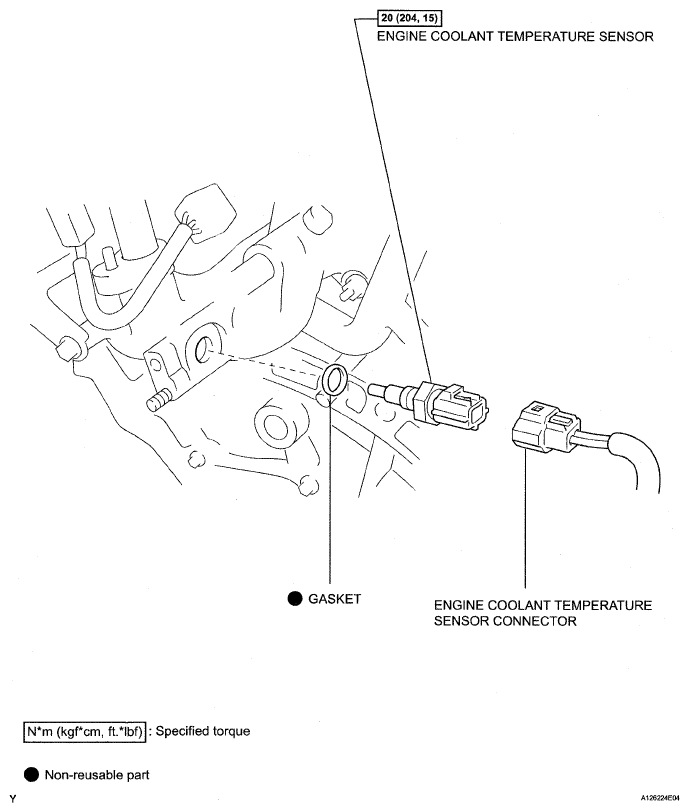

Fig 5: Engine Coolant Temperature Sensor With Torque Specification (5 Of 5)
