Components

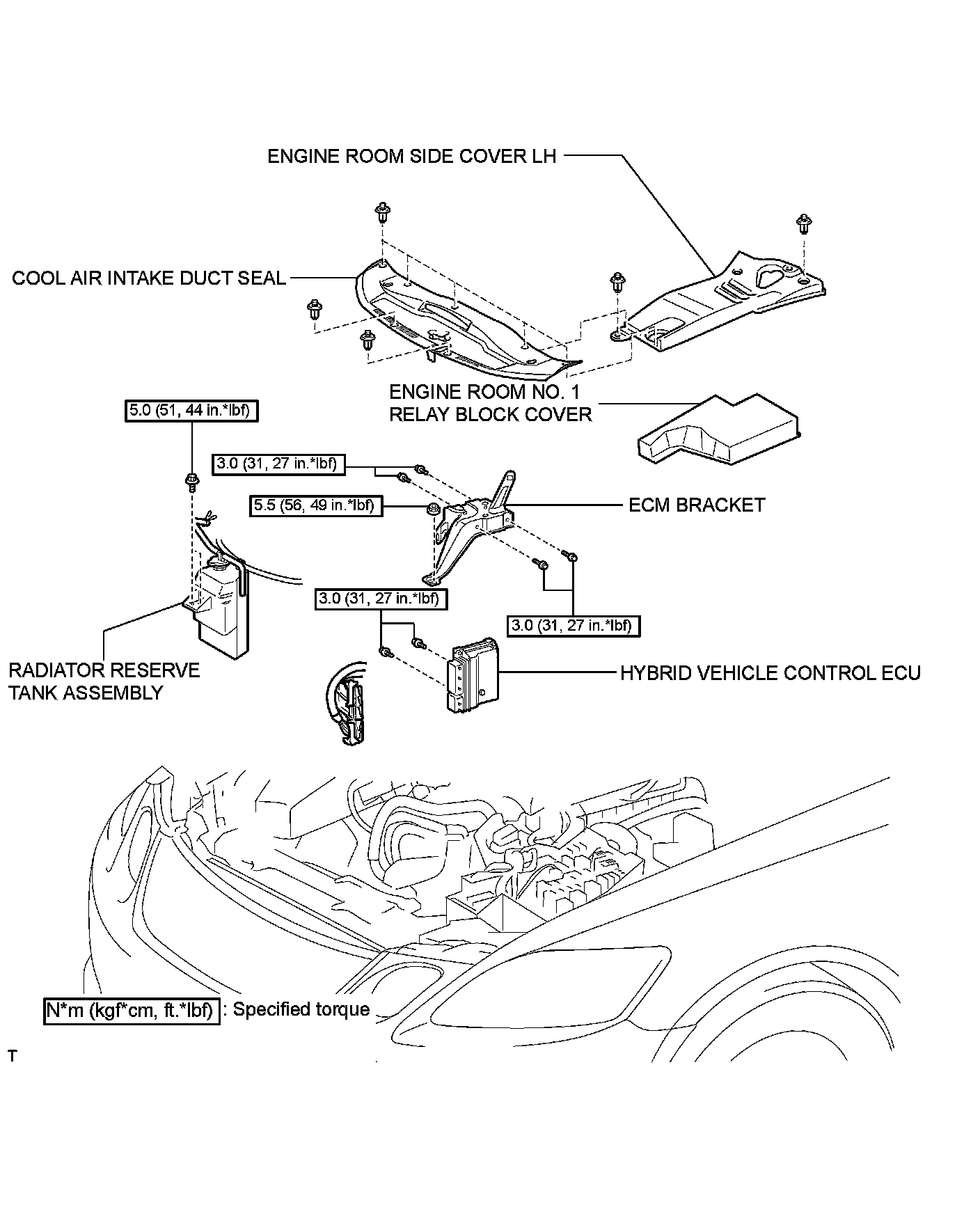

L110 HYBRID VEHICLE CONTROL: HYBRID VEHICLE CONTROL ECU: COMPONENTS
COMPONENTS
ILLUSTRATION
