Body Control Module: Diagrams

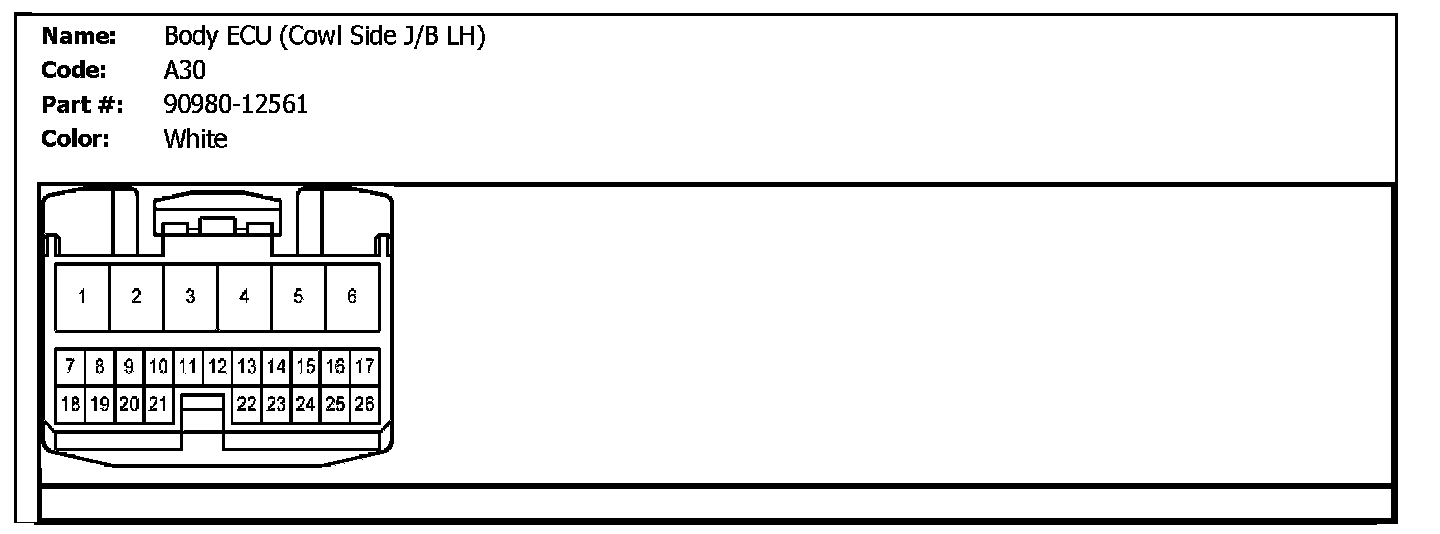

A30 (Body ECU (Cowl Slide J/B LH)):

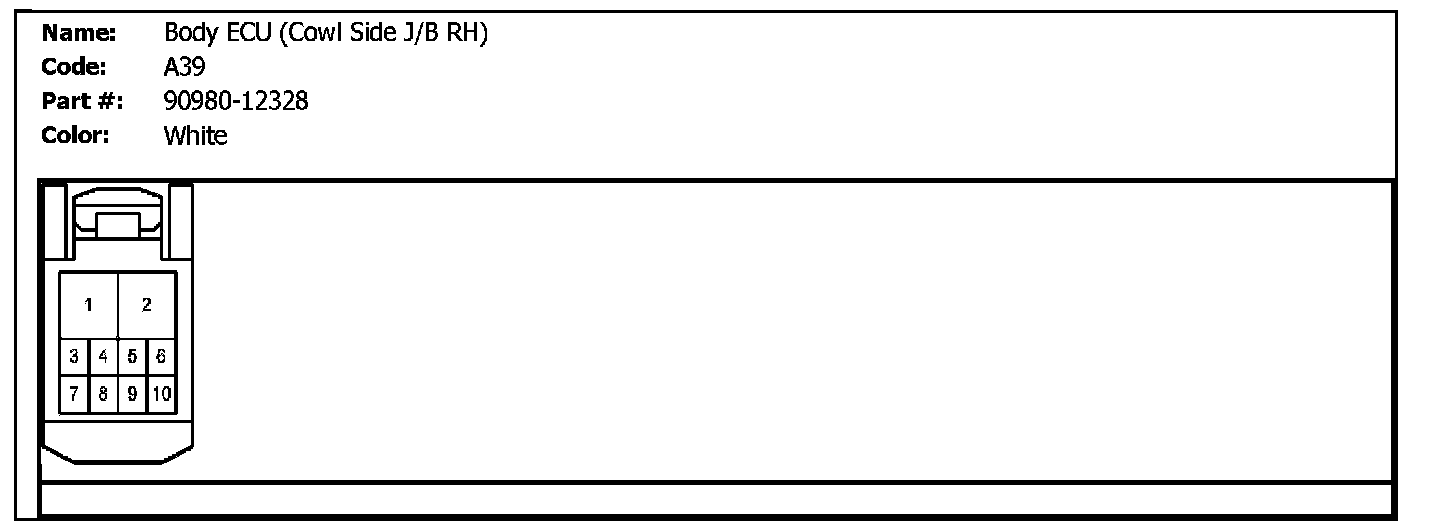

A39 (Body ECU (Cowl Slide J/B RH)):

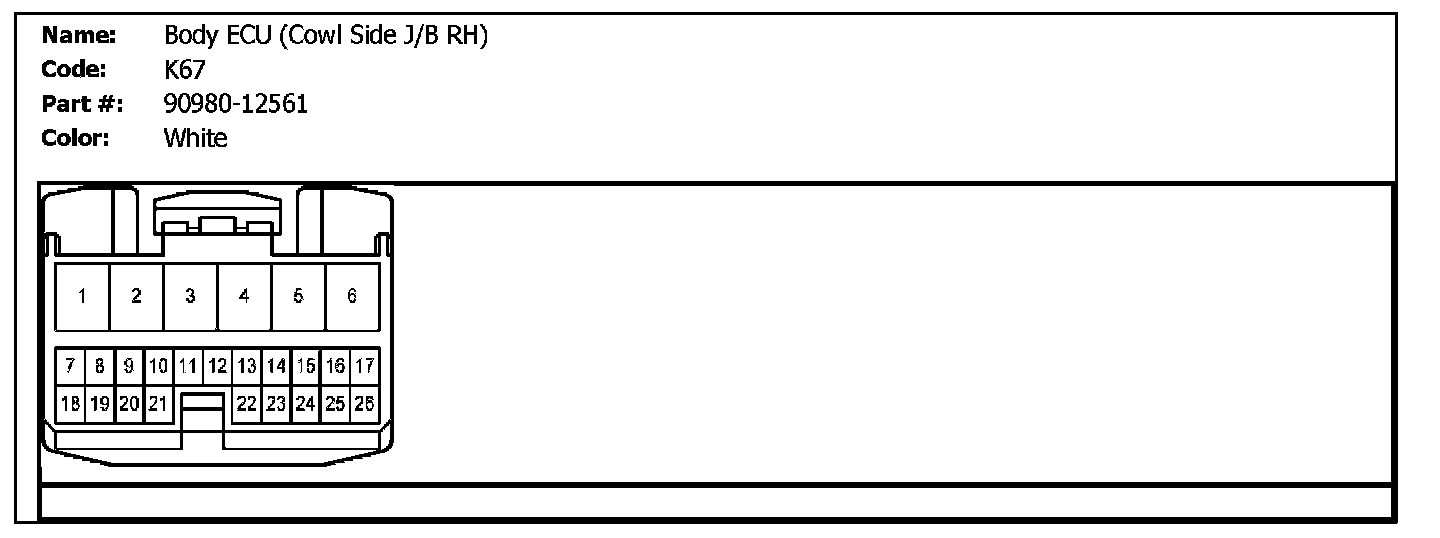

K67 (Body ECU (Cowl Side J/B RH)):

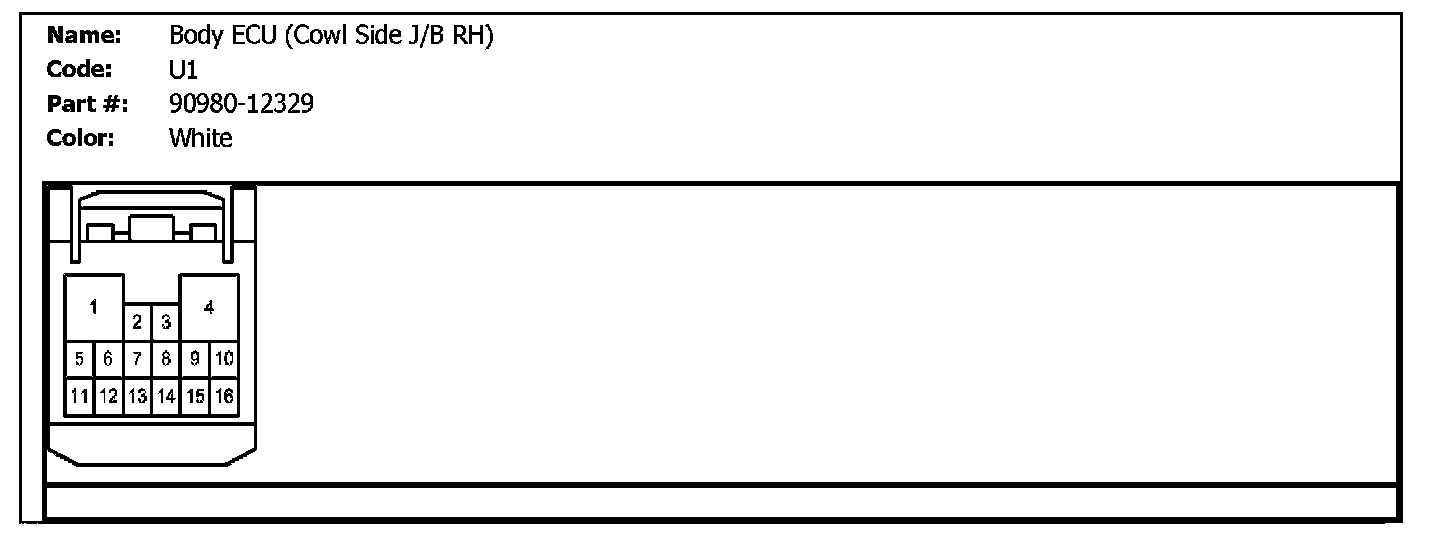

U1 (Body ECU (Cowl Side J/B RH)):

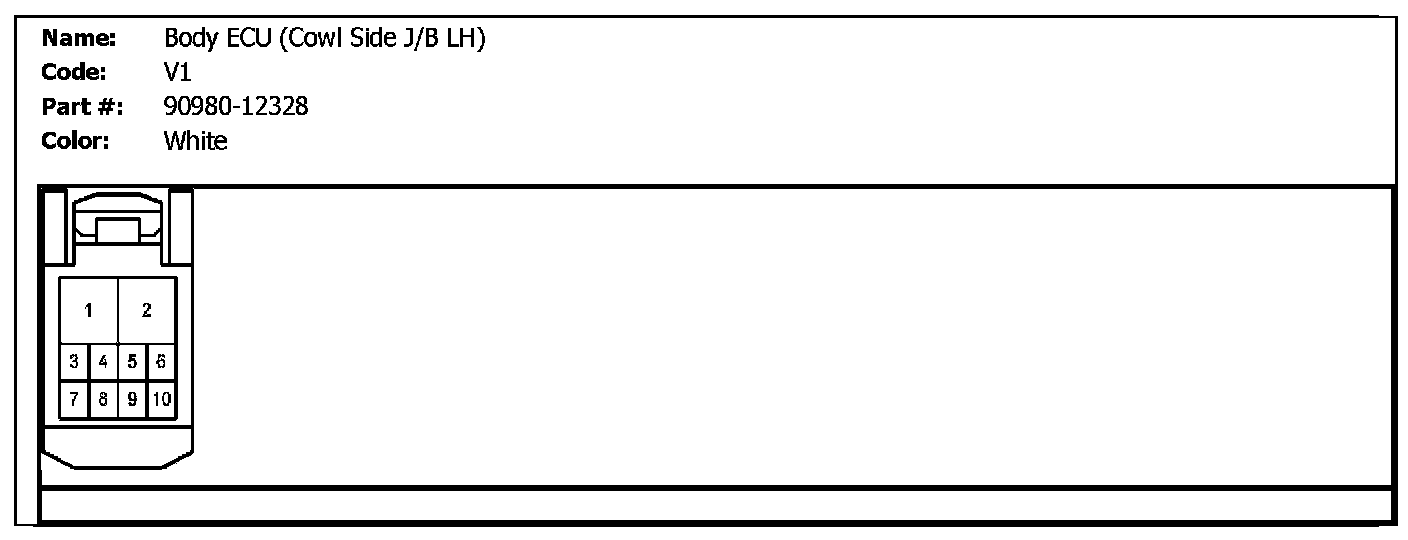

V1 (Body ECU (Cowl Side J/B LH)):

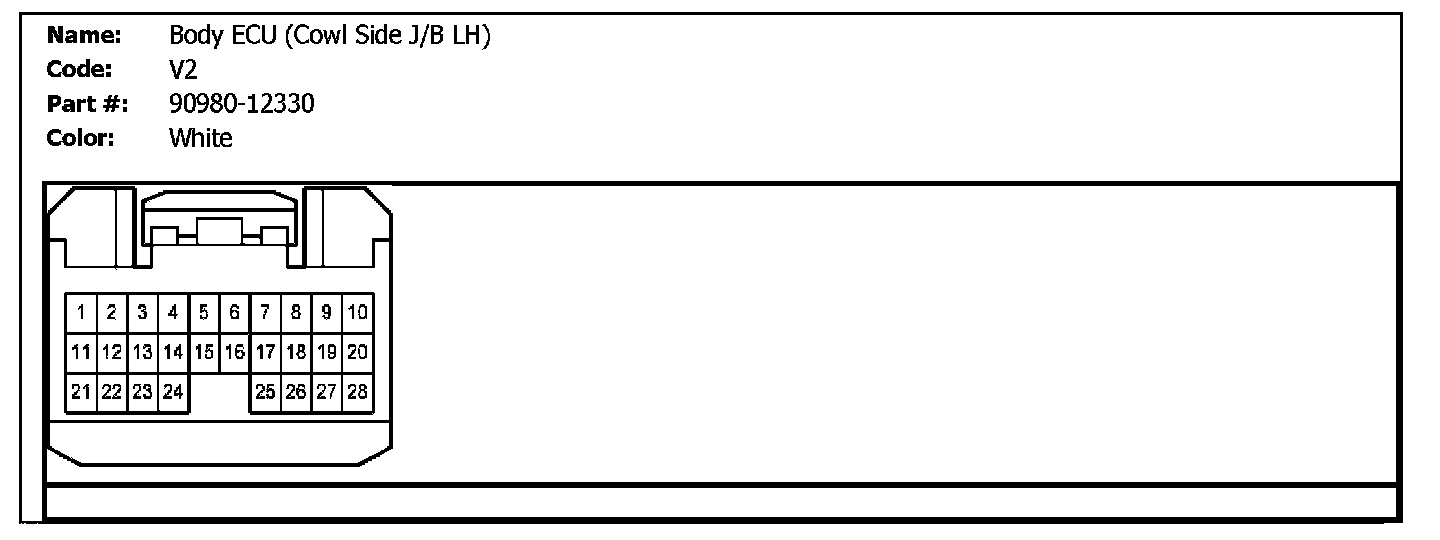

V2 (Body ECU (Cowl Side J/B LH)):



V3 (Body ECU (Cowl Side J/B LH)):
