Back Window Glass: Components

Fig 1: Identifying Back Window Glass Replacement Components With Torque Specification (1 Of 4)
G05820428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

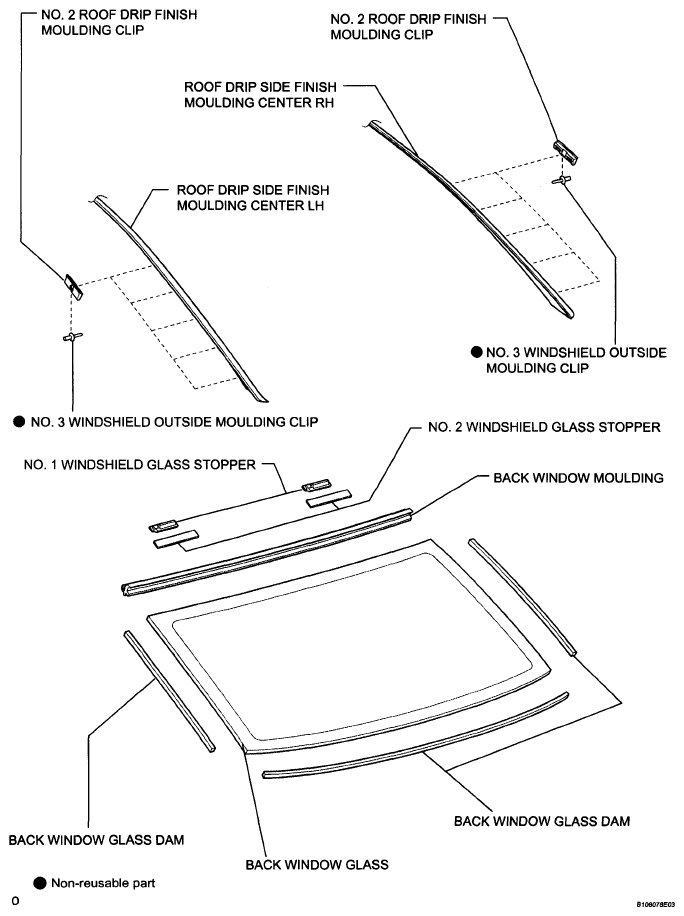

Fig 2: Back Window Glass Replacement Components With Torque Specifications (2 Of 4)
G05820429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Back Window Glass Replacement Components (3 Of 4)
G05820430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Back Window Glass Replacement Components (4 Of 4)
G05820431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
