Back Window Glass: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE REAR SEAT CUSHION ASSEMBLY (See REMOVAL )
REMOVE REAR SEAT BELT OUTER ANCHOR (See REMOVAL )
REMOVE REAR SEAT HEADREST ASSEMBLY
REMOVE REAR SEATBACK ASSEMBLY (See REMOVAL )
REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH (See REMOVAL )
REMOVE REAR DOOR SCUFF PLATE (See REMOVAL )
REMOVE CENTER PILLAR GARNISH LOWER (See REMOVAL )
REMOVE CENTER PILLAR GARNISH (See REMOVAL )
REMOVE REAR SEAT SIDE GARNISH (See REMOVAL )
REMOVE ROOF SIDE GARNISH INNER (See REMOVAL )
REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Sunshade) (See REMOVAL )
REMOVE NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY (See REMOVAL )
REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (See REMOVAL )
REMOVE REAR ROOM LIGHT ASSEMBLY (See REMOVAL )
REMOVE ASSIST GRIP ASSEMBLY (See REMOVAL )
REMOVE ROOF HEADLINING ASSEMBLY
HINT:

It is not necessary to completely remove the roof headlining. Slightly lower the rear section of the roof headlining so that the back window glass can be removed (see REMOVAL ).
REMOVE BACK WINDOW MOLDING
1. Using a knife, cut off the molding as shown in the illustration.
  NOTE: Be careful not to damage the vehicle body with the knife.
2. Remove the remaining molding.
  HINT:

  Make a partial cut in the molding. Then pull and remove it by hand.

  Fig 1: Identifying Cut Mark On Molding
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BACK WINDOW GLASS
1. Apply protective tape to the outer surface of the vehicle body to prevent scratches.
2. From the interior, insert a piano wire between the vehicle body and glass as shown in the illustration.
3. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
  NOTE:
  - When separating the glass from the vehicle, be careful not to damage the vehicle's paint or interior/exterior ornaments.
  - To prevent the instrument panel from being scratched when removing the glass, place a plastic sheet between the piano wire and instrument panel.

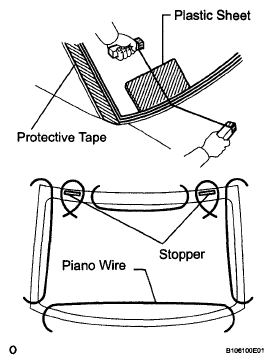

    Fig 2: Inserting Piano Wire Between Vehicle Body And Glass
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Only when reusing glass:
  Place matchmarks over the glass and vehicle body on the locations indicated in the illustration.

  HINT:

  Matchmarks do not need to be placed if the glass not reusing.
5. Cut through the adhesive by pulling the piano wire around the glass.
  NOTE: Leave as much adhesive on the vehicle body as possible when cutting through the adhesive.

  Fig 3: Identifying Matchmarks Over Glass And Vehicle Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Disengage the stoppers.
7. Using suction cups, remove the glass.
CLEAN BACK WINDOW GLASS
1. Using a scraper, remove the damaged stoppers and adhesive sticking to the glass.
2. Clean the outer edges of the glass with a non-residue solvent.
  NOTE:
  - Do not touch the glass surface after cleaning it.
  - Even if using new glass, clean it with a non-residue solvent.

    Fig 4: Cleaning Outer Edges Of Glass
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CLEAN VEHICLE BODY
1. Clean and shape the contact surface of the vehicle body.
  1. On the contact surface of the vehicle body, use a knife to cut away excess adhesive as shown in the illustration.
    HINT:

    Leave as much adhesive on the vehicle body as possible.

    NOTE: Be careful not to damage the vehicle body.
  2. Clean the contact surface of the vehicle body with cleaner.
    HINT:

    Even if all the adhesive has been removed, clean the vehicle body.
