Inspection Procedure

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) and turn the Techstream ON.
3. Select the following menu items: Body / D-Door Motor / Active Test.
4. Perform the Active Test according to the display on the Techstream.

   D-Door Motor

   ACTIVE TEST CHART



   Tester Display	Test Part	Control Range	Diagnostic Note
   Power Window	Power window	UP or OFF	-
   Power Window	Power window	DOWN or OFF	-

   OK:

   Driver side power window operates normally.

   CAUTION: Be careful to avoid injuries as this test causes vehicle parts to move.
   During the Active Test, the jam protection function will not operate.

NG:  Go to step  7

OK: Go to next step

1. Select the following menu items: Body / D-Door Motor / Data List.
2. Read the Data List according to the display on the Techstream.

   D-Door Motor

   DATA LIST



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   D Door P/W Up SW	Driver door power window manual up switch signal / ON or OFF	ON: Driver door power window manual up switch is operated OFF: Driver door power window manual up switch is not operated	-
   D Door P/W Down SW	Driver door power window manual down switch signal / ON or OFF	ON: Driver door power window manual down switch is operated OFF: Driver door power window manual down switch is not operated	-

   OK:

   ON (switch operates) appears on screen.

NG: Go to step 3

OK: GO TO MULTIPLEX COMMUNICATION SYSTEM  (See HOW TO PROCEED WITH TROUBLESHOOTING )

1. Disconnect the Q13 power window master switch connector.
2. Disconnect the M9 front door ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   Q13-12 (E) - M9-20 (SGND)	Always	Below 1 Ω
   Q13-12 (E) - Body ground	Always	10 kΩ or higher

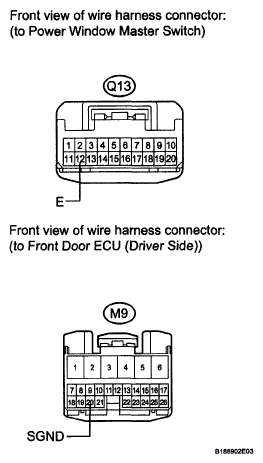

Fig 1: Identifying Power Window Master Switch And Front Door ECU (Driver Side) Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   Q13-15 (CPUB) - Body ground	Always	11 to 14 V

Fig 2: Identifying Power Window Master Switch Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the M14 motor connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   M9-5 (BDRJ) - M14-2 (B)	Always	Below 1 Ω
   M9-2 (PWE) - M14-1 (E)	Always	Below 1 Ω
   M9-S (BDRJ) - Body ground	Always	10 kΩ or higher
   M9-2 (PWE) - Body ground	Always	10 kΩ or higher

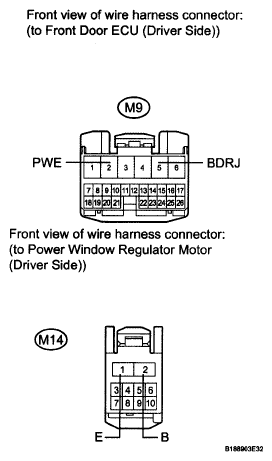

Fig 3: Identifying Front Door ECU And Regulator Motor (Driver Side) Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   Q13-20 (U) - M14-10 (UP1)	Always	Below 1 Ω
   Q13-16 (D) - M14-7 (DWN1)	Always	Below 1 Ω
   Q13-20 (U) - Body ground	Always	10 kΩ or higher
   Q13-16 (D) - Body ground	Always	10 kΩ or higher

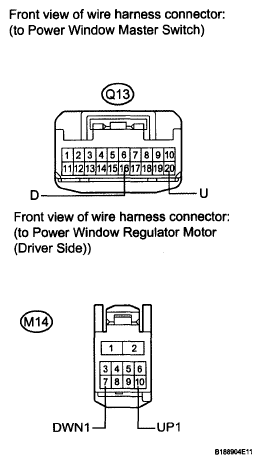

Fig 4: Identifying Power Window Master Switch And Regulator Motor (Driver Side) Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Remove the front power window regulator motor assembly (for Driver Side) (See REMOVAL ).
2. Apply positive (+) battery voltage to the connector terminal 2 (B).
   NOTE:

   • Do not apply positive (+) battery voltage to any terminals, except terminal 2 (B), to avoid damaging the pulse sensor inside the motor.
   • Reset the power window regulator motor (initialize the pulse sensor) after installing the power window regulator motor and regulator assembly onto the door.
3. Apply negative (-) battery voltage to the connector terminals 1 (E)and 7 (DWN1) / 10 (UP1).
4. Check that the motor gear rotates smoothly as follows.

   OK

   MEASUREMENT SPECIFIED CONDITION



   Measurement Condition	Specified Condition
   Battery positive (+) → 2 (B) Battery negative (-): 1 (E) (3 seconds or more) → 1 (E) and 10 (UP1) (within 1 second) → 1 (E) (within 1 second) → 1 (E) and 10 (UP1)	Motor gear rotates clockwise (UP)
   Battery positive (+) → 2 (B) Battery negative (-): 1 (E) (3 seconds or more) → 1 (E) and 7 (DWN1) (within 1 second) → 1 (E) (within 1 second) → 1 (E) and 7 (DWN1)	Motor gear rotates counterclockwise (DOWN)

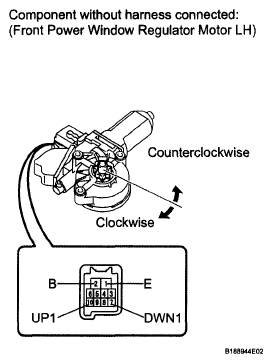

Fig 5: Checking Front Power Window Regulator Motor Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Driver Side)  (See REMOVAL )

OK: REPLACE POWER WINDOW MASTER SWITCH  (See REMOVAL )
