On-Vehicle Inspection

  1. INSPECT POWER WINDOW SWITCH (for Rear LH)
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Switch Condition Specified Condition
      2 (U) - 5 (E) Manual UP operation Below 1 Ω
      10 (D) - 5 (E) Manual DOWN operation Below 1 Ω
      4 (A) - 5 (E) AUTO UP / DOWN operation Below 1 Ω

      If the result is not as specified, replace the power window switch.

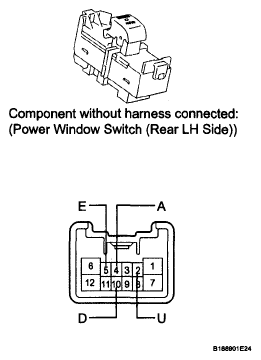

      Fig 1: Identifying Power Window Switch (Rear LH Side) Connector Terminals
      G05820405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT POWER WINDOW SWITCH (for Rear RH)
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Switch Condition Specified Condition
      2 (U) - 5 (E) Manual UP operation Below 1 Ω
      10 (D) - 5 (E) Manual DOWN operation Below 1 Ω
      4 (A) - 5 (E) AUTO UP / DOWN operation Below 1 Ω

      If the result is not as specified, replace the power window switch.

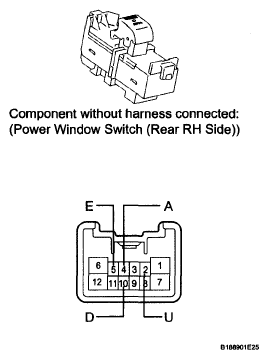

      Fig 2: Identifying Power Window Switch (Rear RH Side) Connector Terminals
      G05820406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
