System Diagram

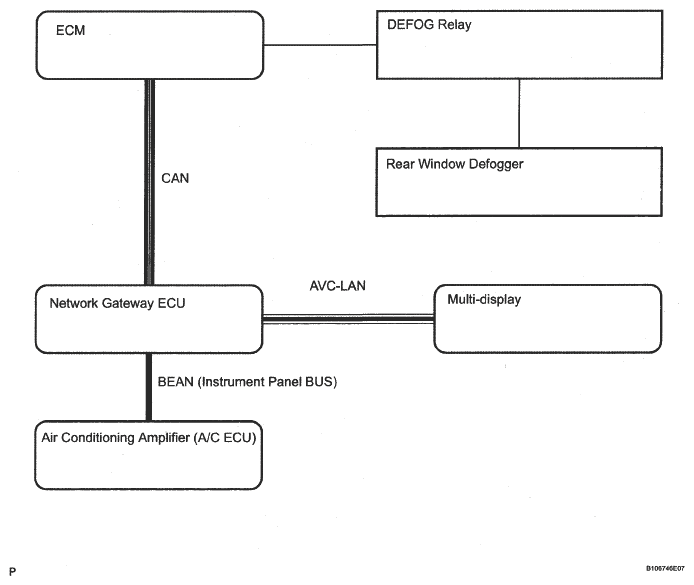

Fig 1: Window Defogger System Diagram
G05315055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table

COMMUNICATION CHART

Sender Receiver Signal Line
Multi-display Air conditioning amplifier (A/C ECU) Rear defogger switch signal BEAN/AVC-LAN
Air conditioning amplifier (A/C ECU) ECM Rear defogger switch signal BEAN / CAN
