Windshield Glass: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE COOL AIR INTAKE DUCT SEAL  (See REMOVAL )
  3. REMOVE ENGINE ROOM SIDE COVER LH  (See REMOVAL )
  4. REMOVE FRONT FENDER TO COWL SIDE SEAL LH  (See REMOVAL )
  5. REMOVE FRONT FENDER TO COWL SIDE SEAL RH  (See REMOVAL )
  6. REMOVE FRONT WIPER ARM LH  (See REMOVAL )
  7. REMOVE FRONT WIPER ARM RH  (See REMOVAL )
  8. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY  (See REMOVAL )
  9. REMOVE ROOF DRIP SIDE FINISH MOLDING CENTER LH  (See REMOVAL )
  10. REMOVE ROOF DRIP SIDE FINISH MOLDING CENTER RH  (See REMOVAL )
  11. REMOVE FRONT DOOR SCUFF PLATE LH  (See REMOVAL )
  12. REMOVE FRONT DOOR SCUFF PLATE RH  (See REMOVAL )
  13. REMOVE FRONT DOOR OPENING TRIM COVER LH  (See REMOVAL )
  14. REMOVE FRONT DOOR OPENING TRIM COVER RH  (See REMOVAL )
  15. REMOVE FRONT PILLAR GARNISH LH  (See REMOVAL )
  16. REMOVE FRONT PILLAR GARNISH RH  (See REMOVAL )
  17. REMOVE VISOR BRACKET COVER  (See REMOVAL )
  18. REMOVE VISOR ASSEMBLY LH  (See REMOVAL )
  19. REMOVE VISOR ASSEMBLY RH  (See REMOVAL )
  20. REMOVE VISOR HOLDER  (See REMOVAL )
  21. REMOVE FRONT ROOF TOP GARNISH  (See REMOVAL )
  22. REMOVE INNER REAR MIRROR COVER  (See REMOVAL )
  23. REMOVE MAP LIGHT ASSEMBLY  (See REMOVAL )
  24. REMOVE STEERING SPOT LIGHT ASSEMBLY  (See REMOVAL )
  25. REMOVE VANITY LIGHT ASSEMBLY  (See REMOVAL )
  26. REMOVE ASSIST GRIP ASSEMBLY  (See REMOVAL )
  27. REMOVE ROOF HEADLINING ASSEMBLY

    HINT:

    It is not necessary to completely remove the roof headlining. Slightly lower the front section of the roof headlining so that the windshield glass can be removed (see REMOVAL ).

  28. REMOVE INNER REAR VIEW MIRROR ASSEMBLY  (See REMOVAL )
  29. REMOVE RAIN SENSOR (w/ RAIN SENSOR)  (See REMOVAL )
  30. REMOVE WINDSHIELD GLASS
    1. Using a knife, cut off the molding as shown in the illustration.
      NOTE: Be careful not to damage the vehicle body.
    2. Remove the remaining molding.

      HINT:

      Make a partial cut in the molding. Then pull and remove it by hand.

      Fig 1: Identifying Cut Mark On Molding
      G05820414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Apply protective tape to the outer surface of the vehicle body to prevent scratches.
    4. From the interior, insert a piano wire between the vehicle body and glass as shown in the illustration.
    5. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
      NOTE:
      • When separating the glass from the vehicle, be careful not to damage the vehicle's paint or interior / exterior ornaments.
      • To prevent the instrument panel from being scratched when removing the glass, place a plastic sheet between the piano wire and instrument panel.

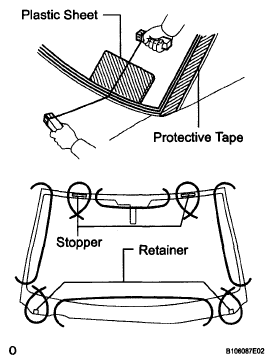

        Fig 2: Inserting Piano Wire Between Vehicle Body And Glass
        G05820415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Place matchmarks over the glass and vehicle body on the locations indicated in the illustration.

      HINT:

      Matchmarks do not need to be placed if not reusing the glass.

    7. Cut through the adhesive by pulling the piano wire around the glass.
      NOTE: Leave as much adhesive on the vehicle body as possible when removing the glass.
      Fig 3: Identifying Matchmarks Over Glass And Vehicle Body
      G05820416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Detach the stoppers.
    9. Using suction cups, remove the glass.
  31. REMOVE WINDSHIELD GLASS STOPPER
    1. Using a scraper, remove the damaged spacer.
  32. REMOVE WINDSHIELD GLASS RETAINER
    1. Using a scraper, remove the damaged retainer.
  33. REMOVE WINDSHIELD GLASS ADHESIVE DAM
    1. Using a scraper, remove the damaged dam.
  34. CLEAN WINDSHIELD GLASS
    1. Using a scraper, remove the adhesive sticking to the glass.
    2. Clean the outer edges of the glass with a non-residue solvent.
      NOTE:
      • Do not touch the glass surface after cleaning it.
      • Even if using new glass, clean it a non-residue solvent.
        Fig 4: Cleaning Outer Edges Of Glass With Non-Residue Solvent
        G05820417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE NO. 1 WINDSHIELD GLASS STOPPER
    1. Remove the stopper from the vehicle body.
  36. CLEAN VEHICLE BODY
    1. Clean and shape the contact surface of the vehicle body.
      1. On the contact surface of the vehicle body, use a knife to cut away excess adhesive as shown in the illustration.
        NOTE: Be careful not to damage the vehicle body.

        HINT:

        Leave as much adhesive on the vehicle body as possible.

        Fig 5: Identifying Adhesive On Vehicle Body
        G05820418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Clean the contact surface of the vehicle body with cleaner.

        HINT:

        Even if all the adhesive has been removed, clean the vehicle body.
