Hybrid System and Shift Control System: Notes

Fig 1: Hybrid System And Shift Control System - Circuit Diagram (1 Of 23)

G07613786

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

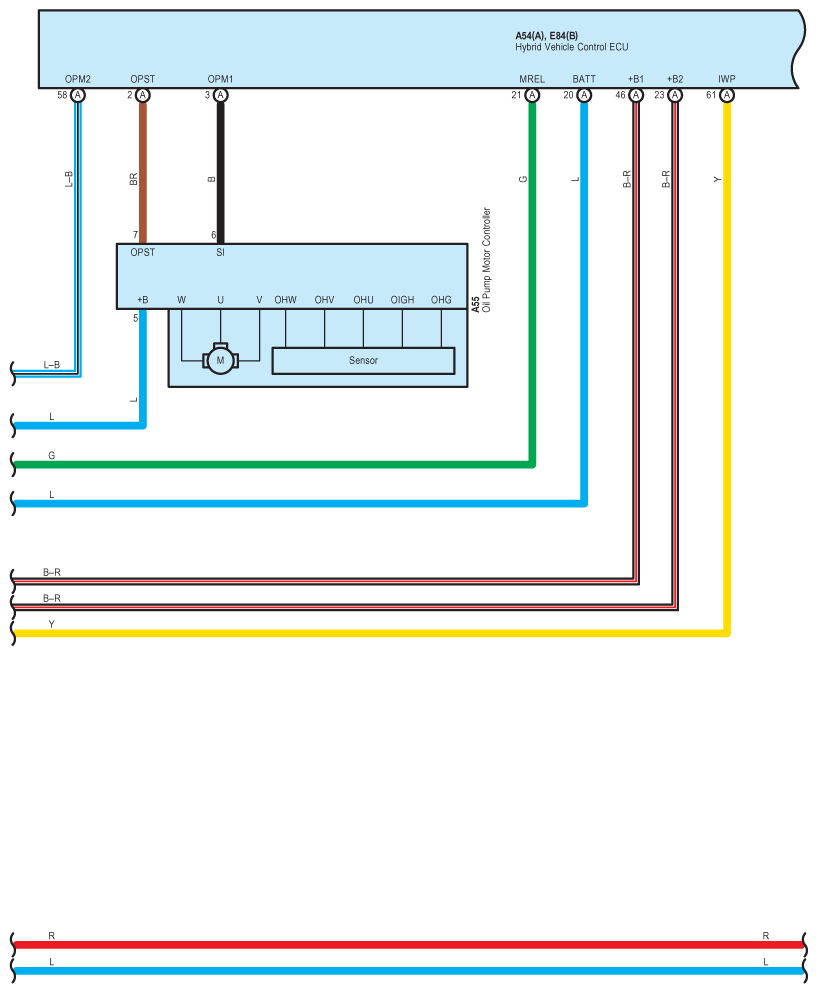

Fig 2: Hybrid System And Shift Control System - Circuit Diagram (2 Of 23)

G07613787

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

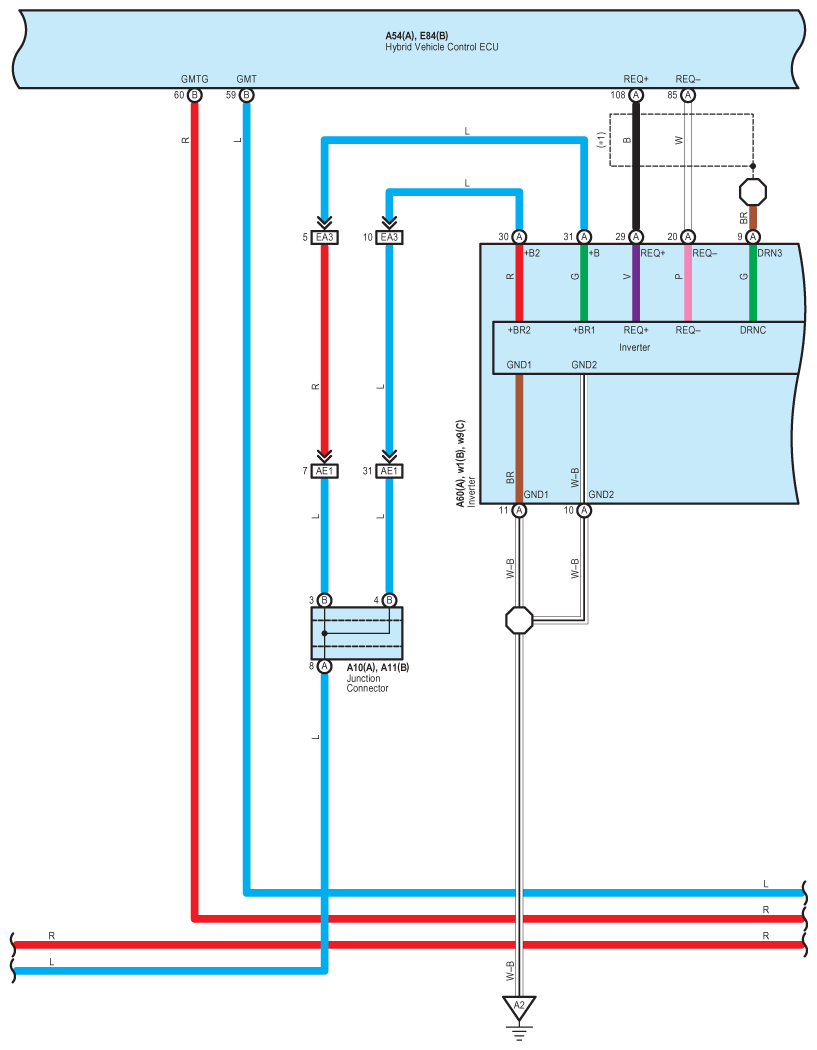

Fig 3: Hybrid System And Shift Control System - Circuit Diagram (3 Of 23)

G07613788

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

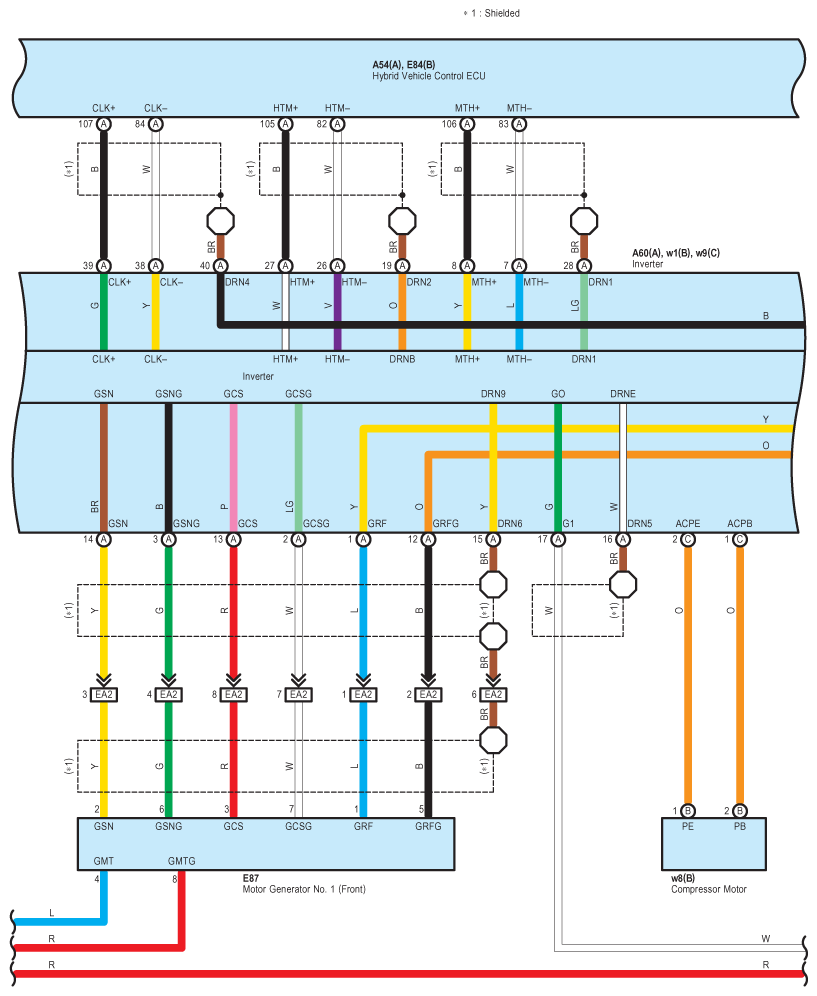

Fig 4: Hybrid System And Shift Control System - Circuit Diagram (4 Of 23)

G07613789

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

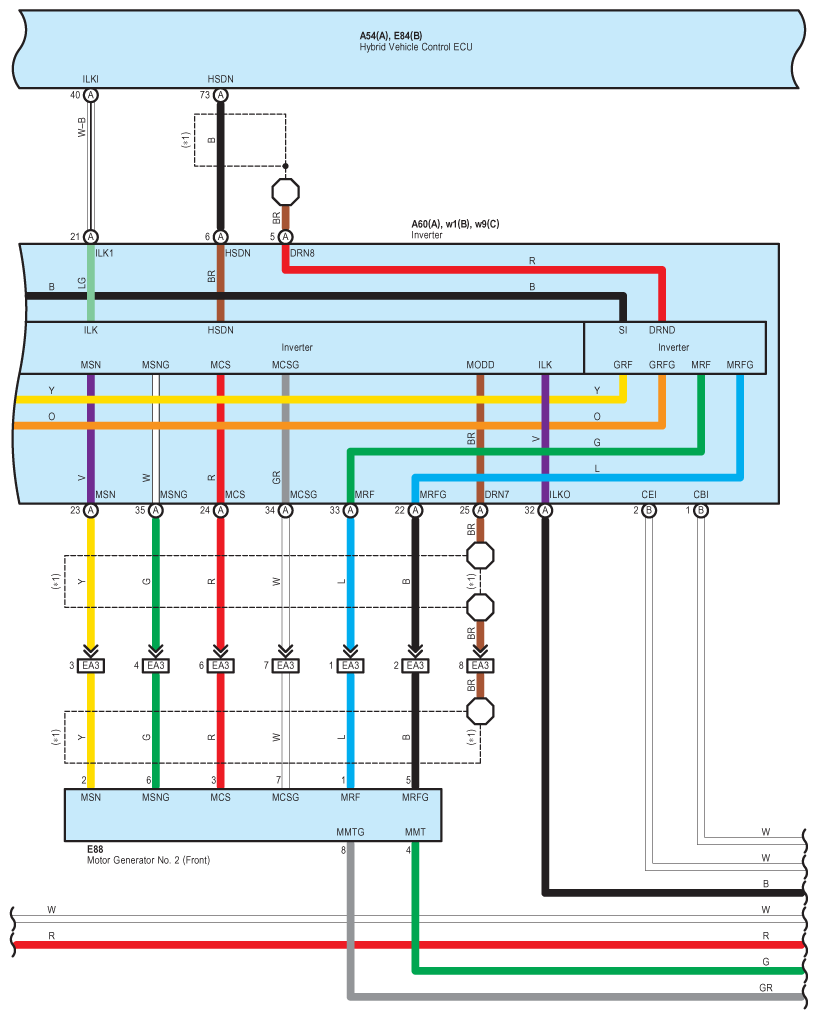

Fig 5: Hybrid System And Shift Control System - Circuit Diagram (5 Of 23)

G07613790

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

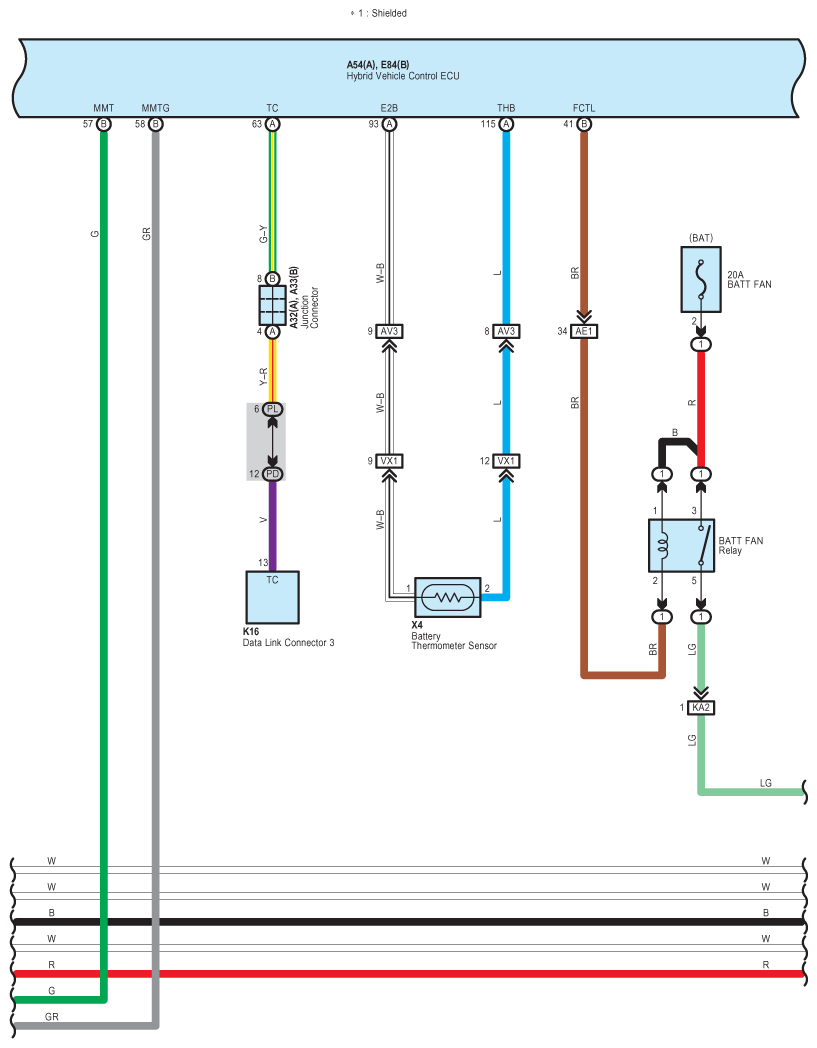

Fig 6: Hybrid System And Shift Control System - Circuit Diagram (6 Of 23)

G07613791

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

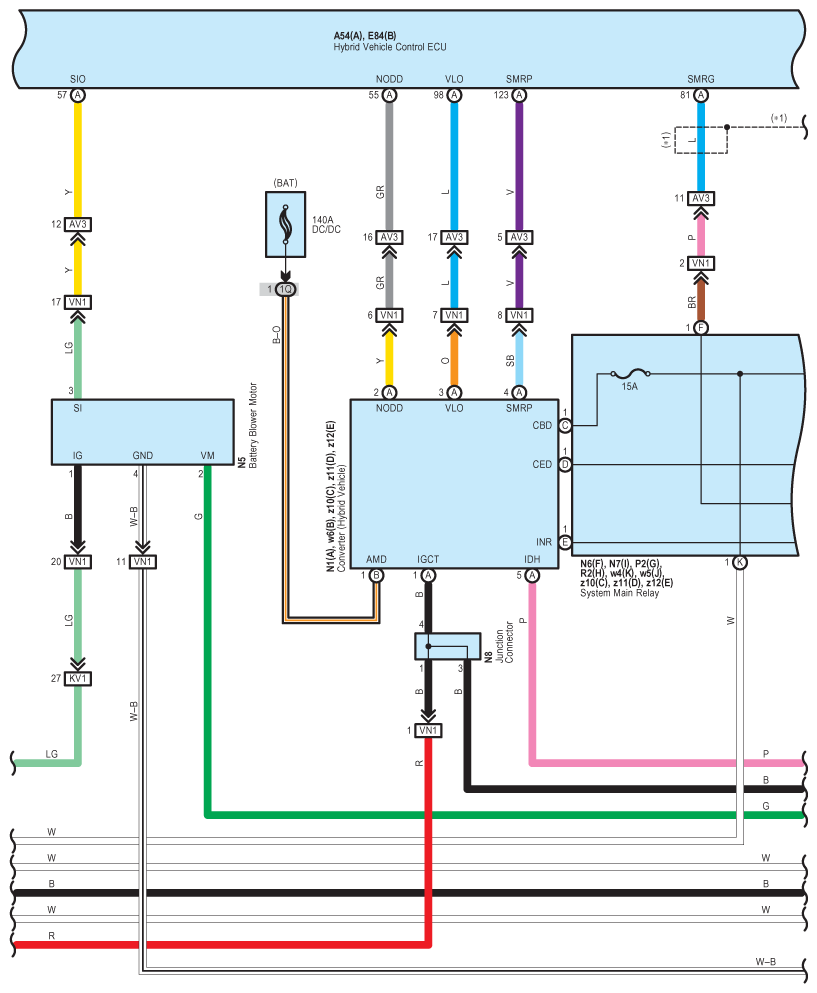

Fig 7: Hybrid System And Shift Control System - Circuit Diagram (7 Of 23)

G07613792

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

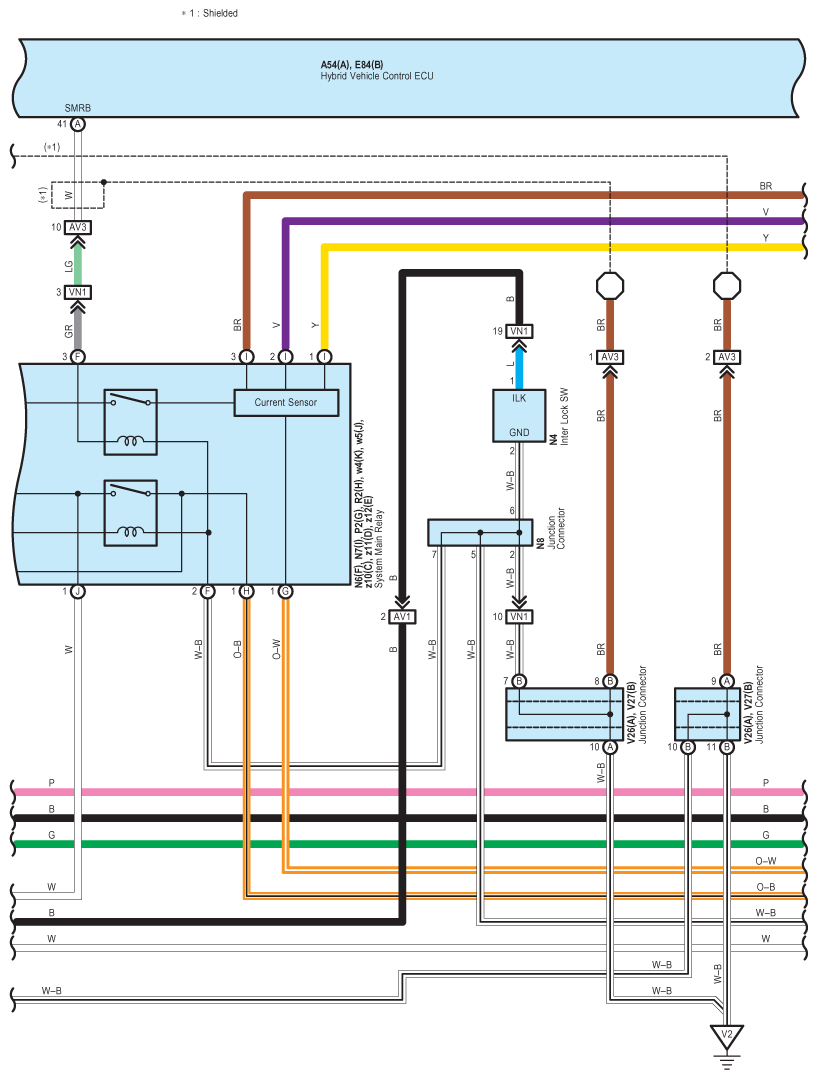

Fig 8: Hybrid System And Shift Control System - Circuit Diagram (8 Of 23)

G07613793

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

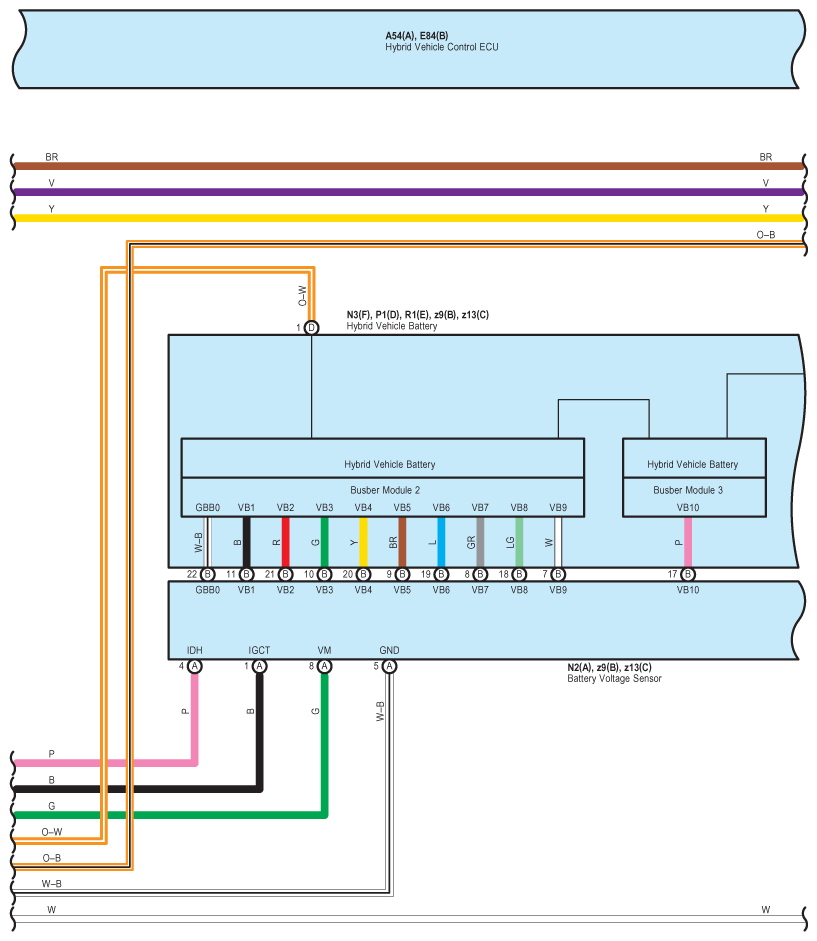

Fig 9: Hybrid System And Shift Control System - Circuit Diagram (9 Of 23)

G07613794

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

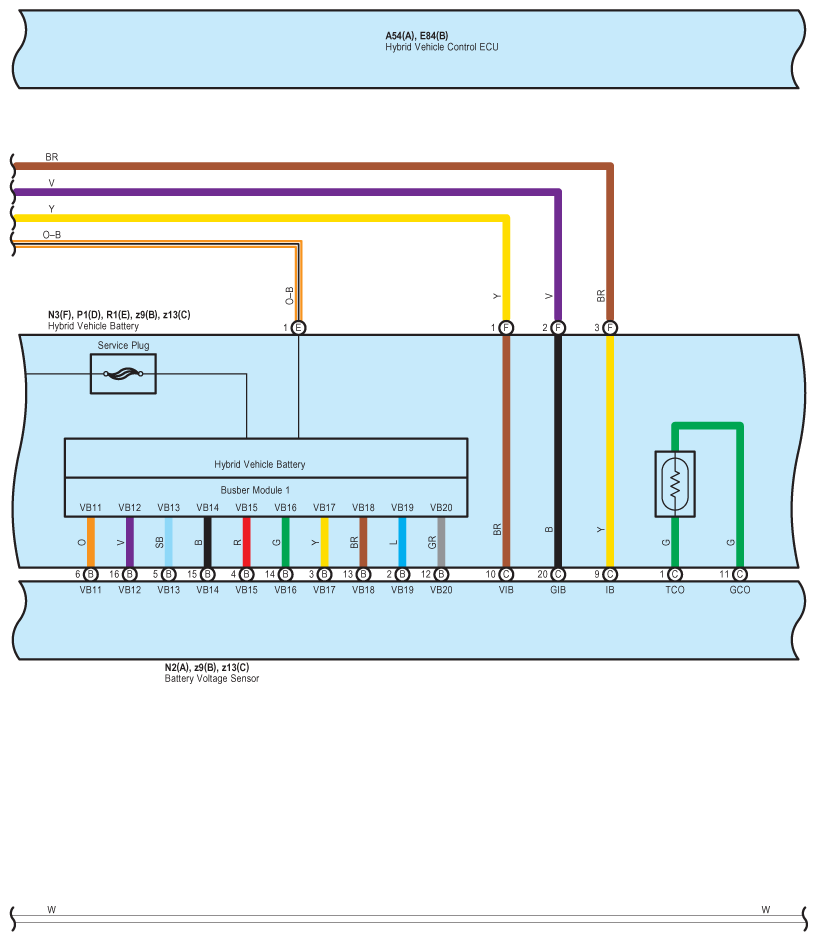

Fig 10: Hybrid System And Shift Control System - Circuit Diagram (10 Of 23)

G07613795

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

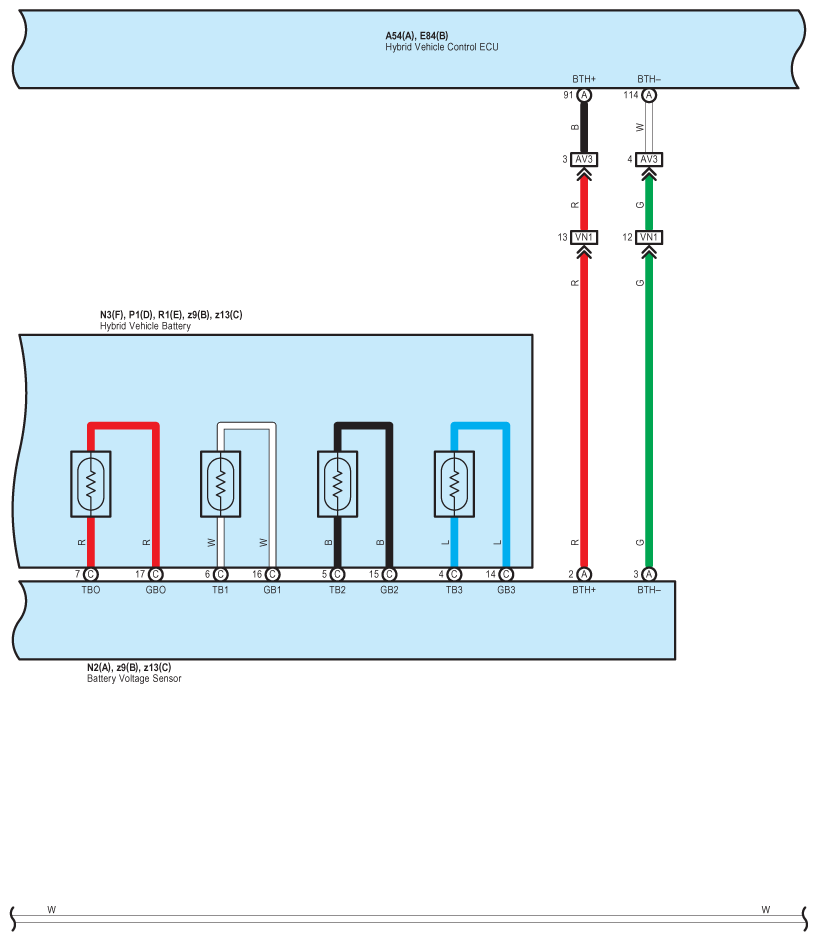

Fig 11: Hybrid System And Shift Control System - Circuit Diagram (11 Of 23)

G07613796

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

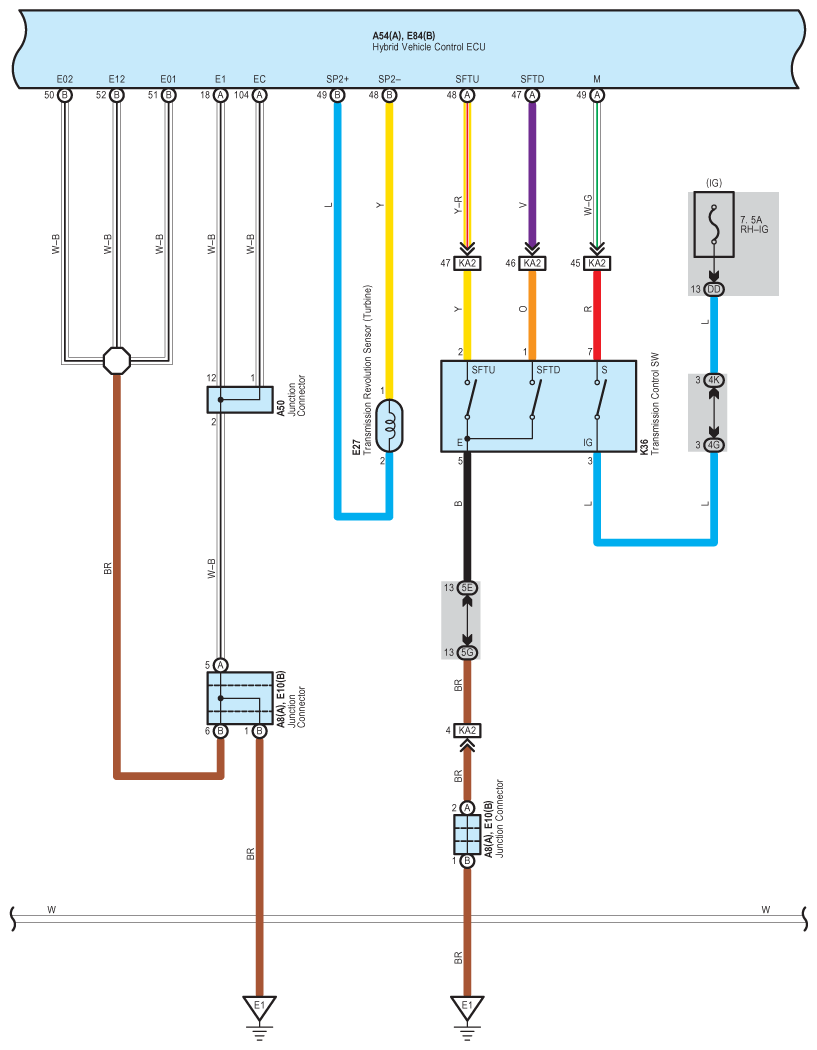

Fig 12: Hybrid System And Shift Control System - Circuit Diagram (12 Of 23)

G07613797

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

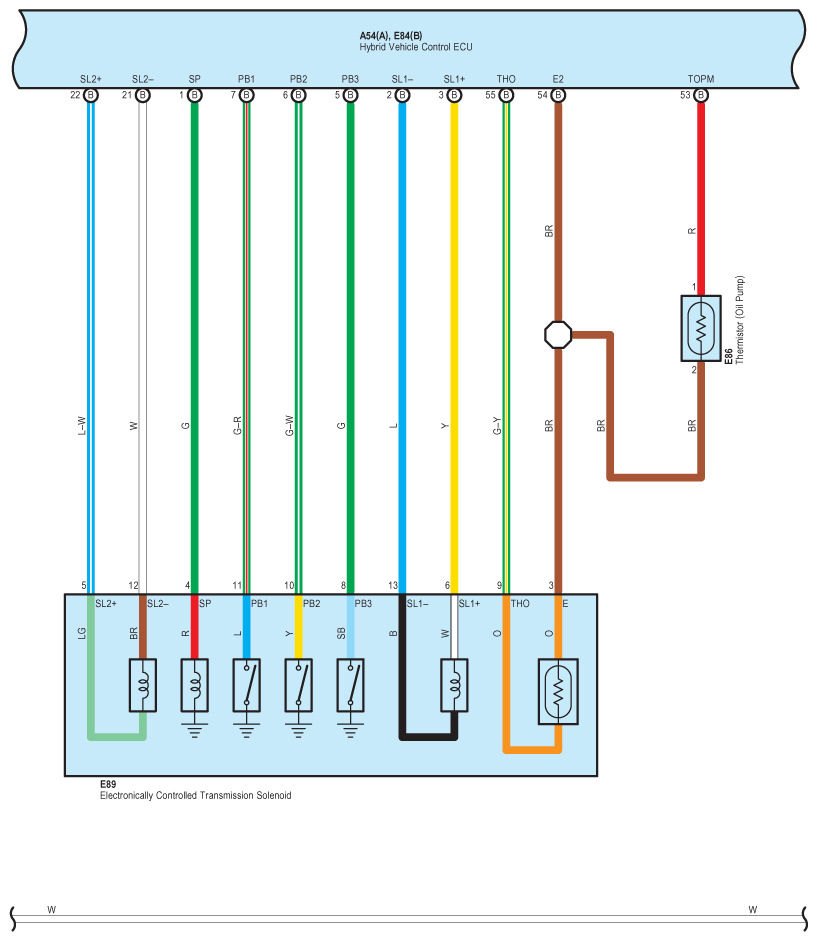

Fig 13: Hybrid System And Shift Control System - Circuit Diagram (13 Of 23)

G07613798

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

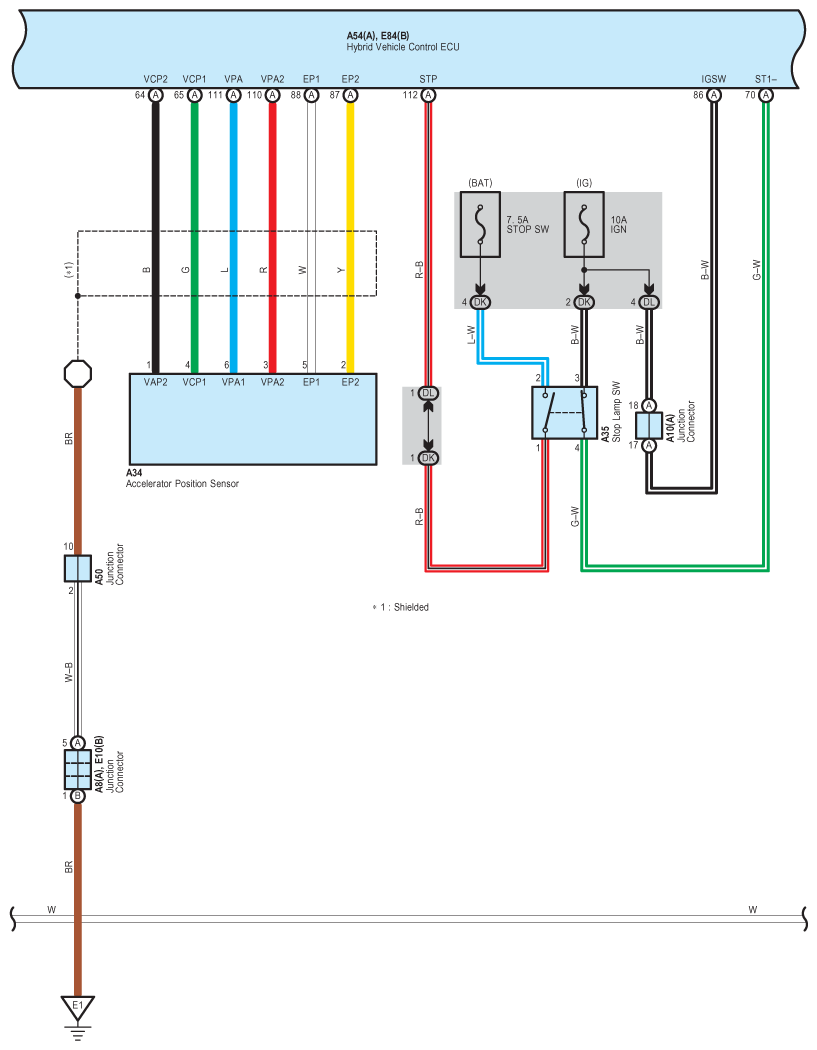

Fig 14: Hybrid System And Shift Control System - Circuit Diagram (14 Of 23)

G07613799

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

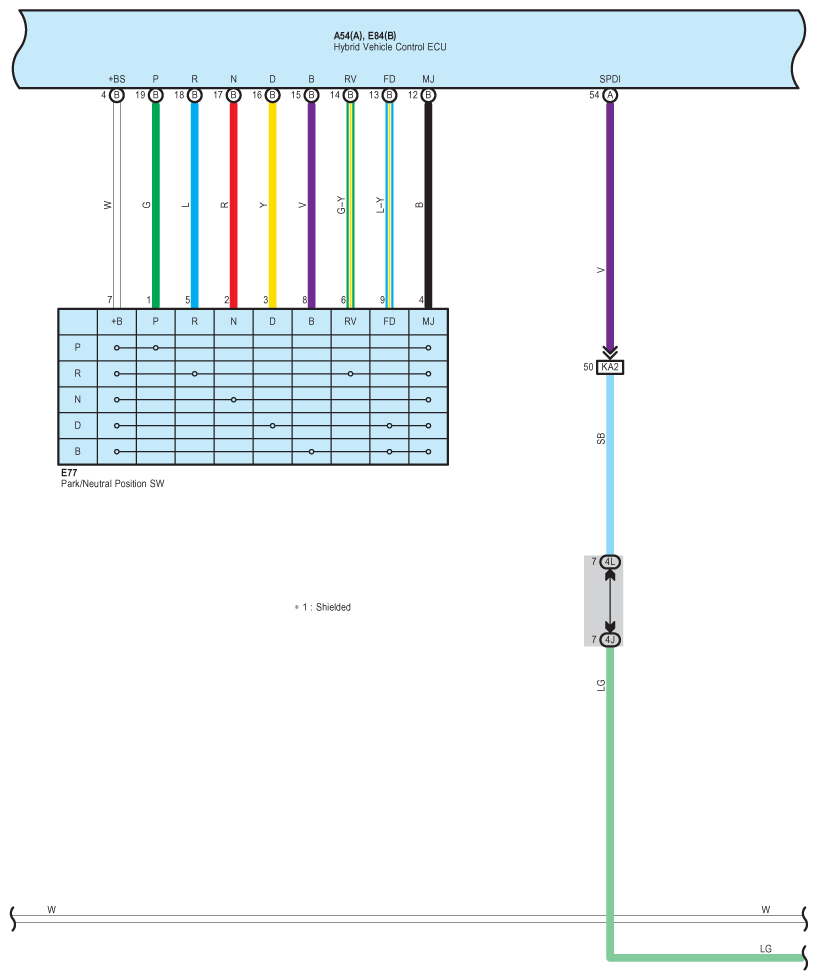

Fig 15: Hybrid System And Shift Control System - Circuit Diagram (15 Of 23)

G07613800

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

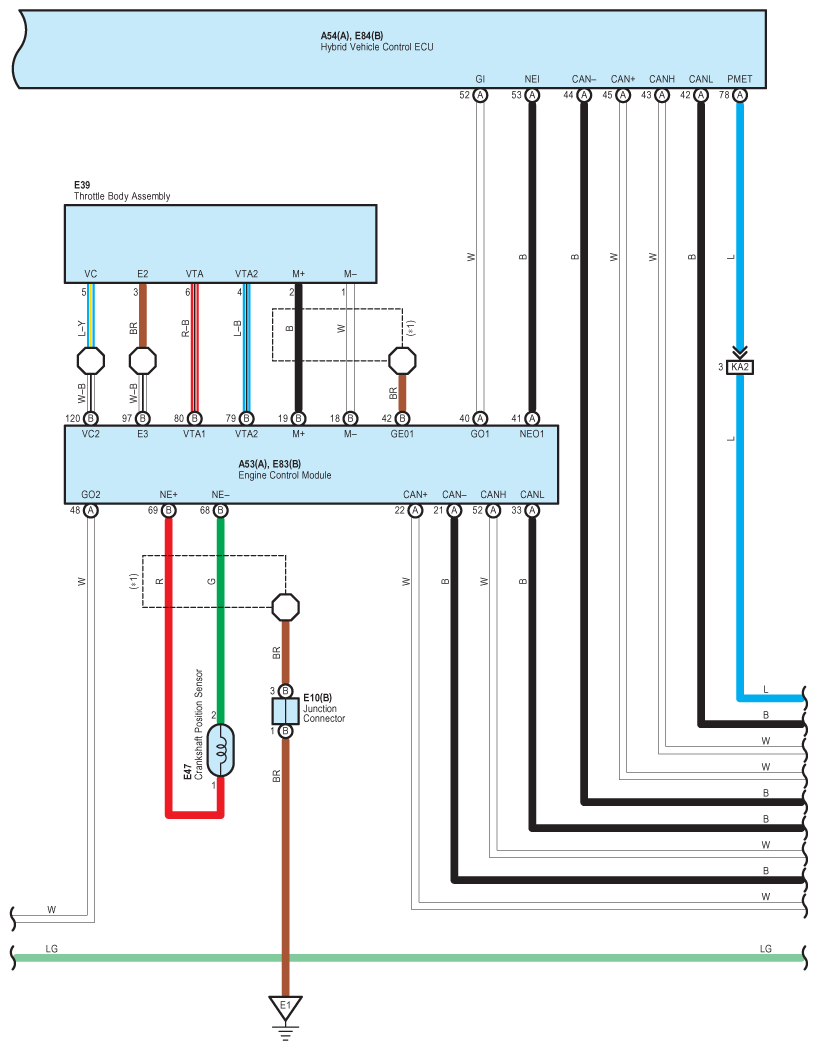

Fig 16: Hybrid System And Shift Control System - Circuit Diagram (16 Of 23)

G07613801

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Hybrid System And Shift Control System - Circuit Diagram (17 Of 23)

G07613802

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

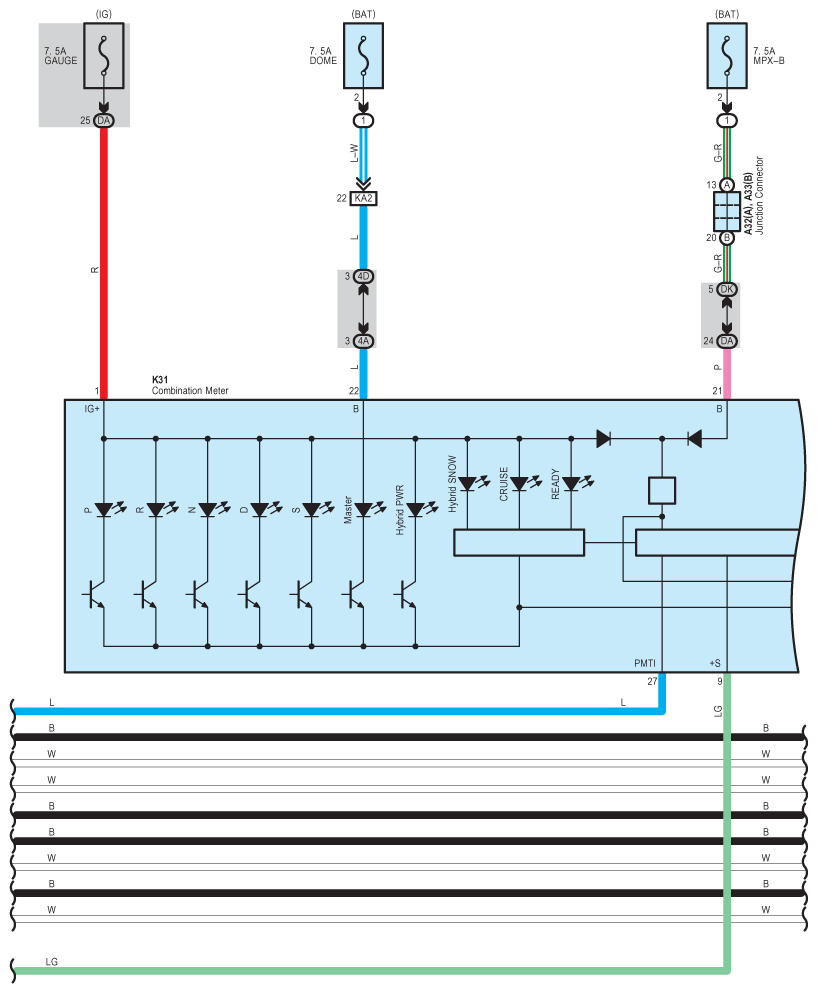

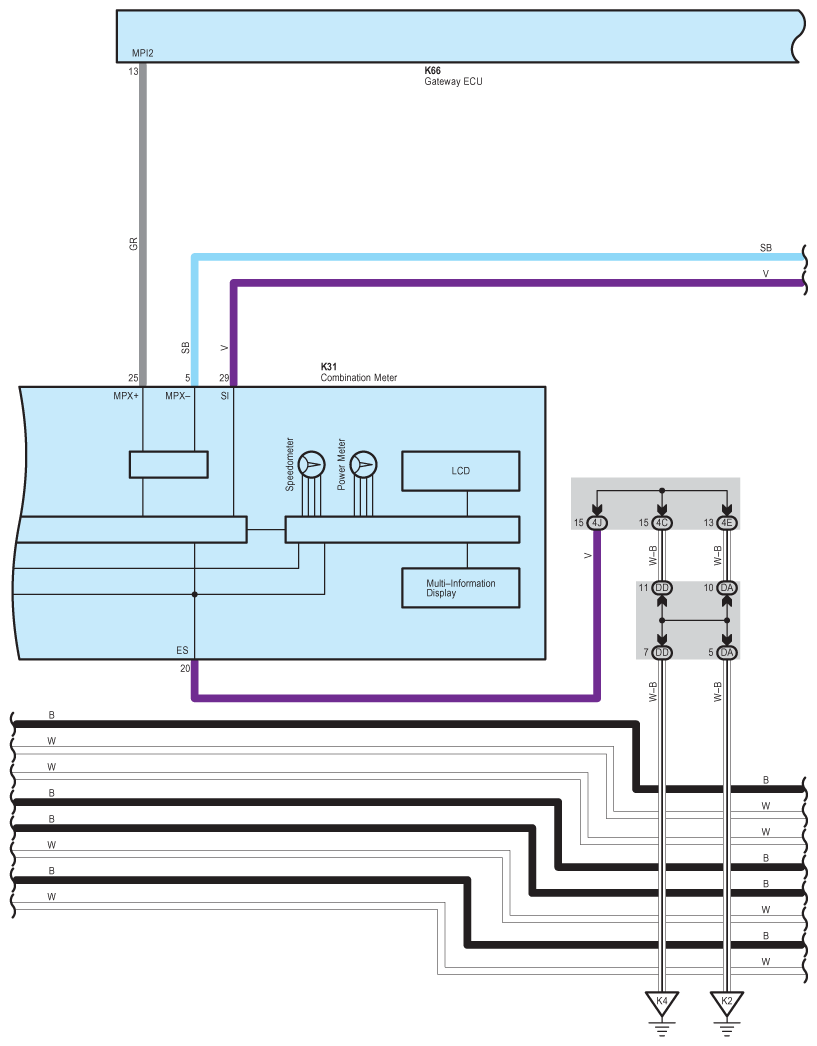

Fig 18: Hybrid System And Shift Control System - Circuit Diagram (18 Of 23)

G07613803

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

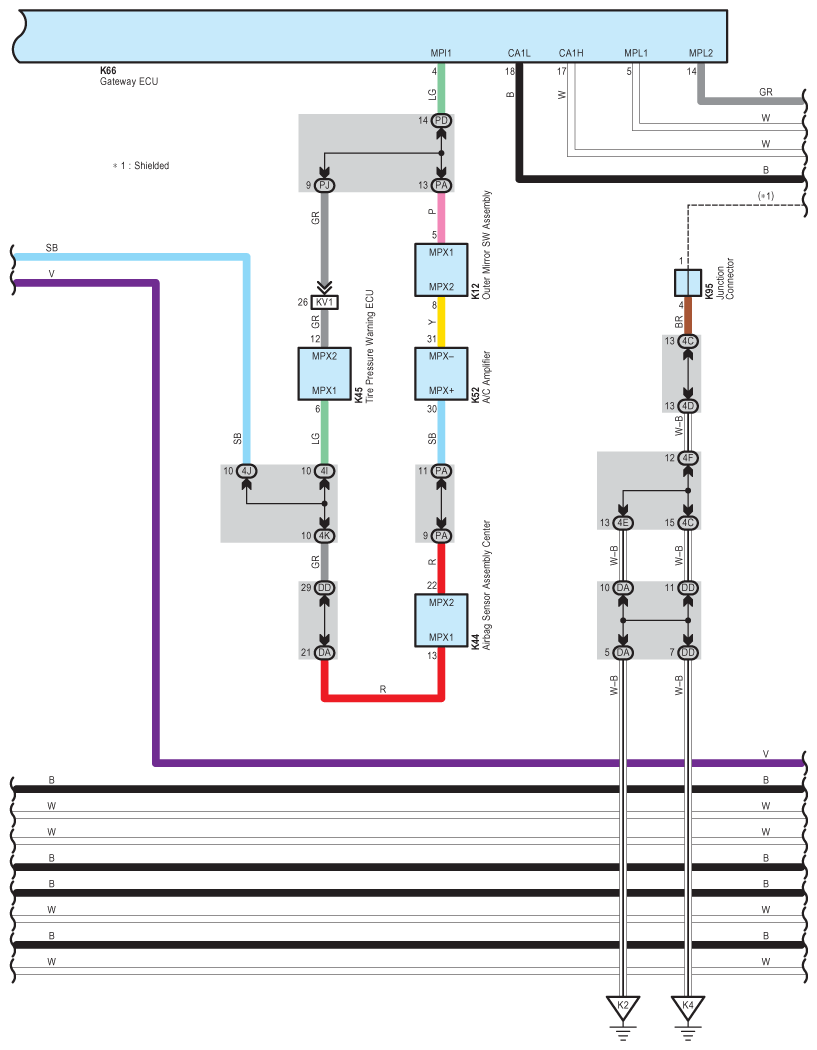

Fig 19: Hybrid System And Shift Control System - Circuit Diagram (19 Of 23)

G07613804

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

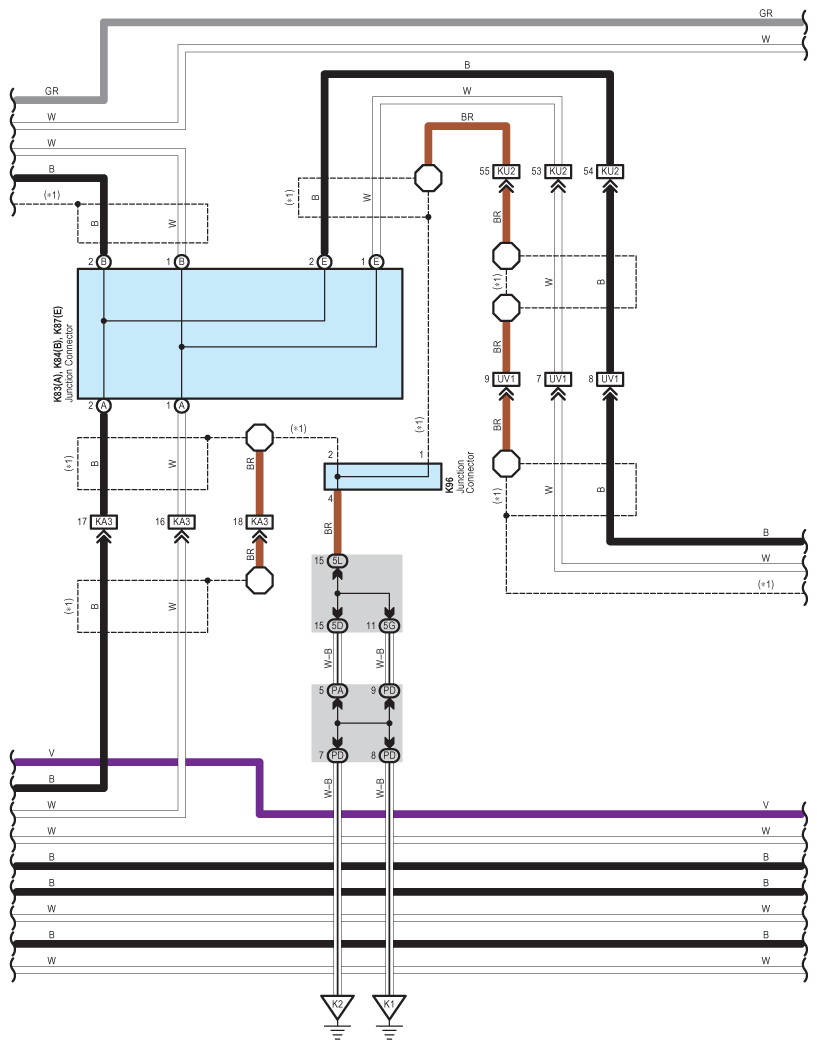

Fig 20: Hybrid System And Shift Control System - Circuit Diagram (20 Of 23)

G07613805

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

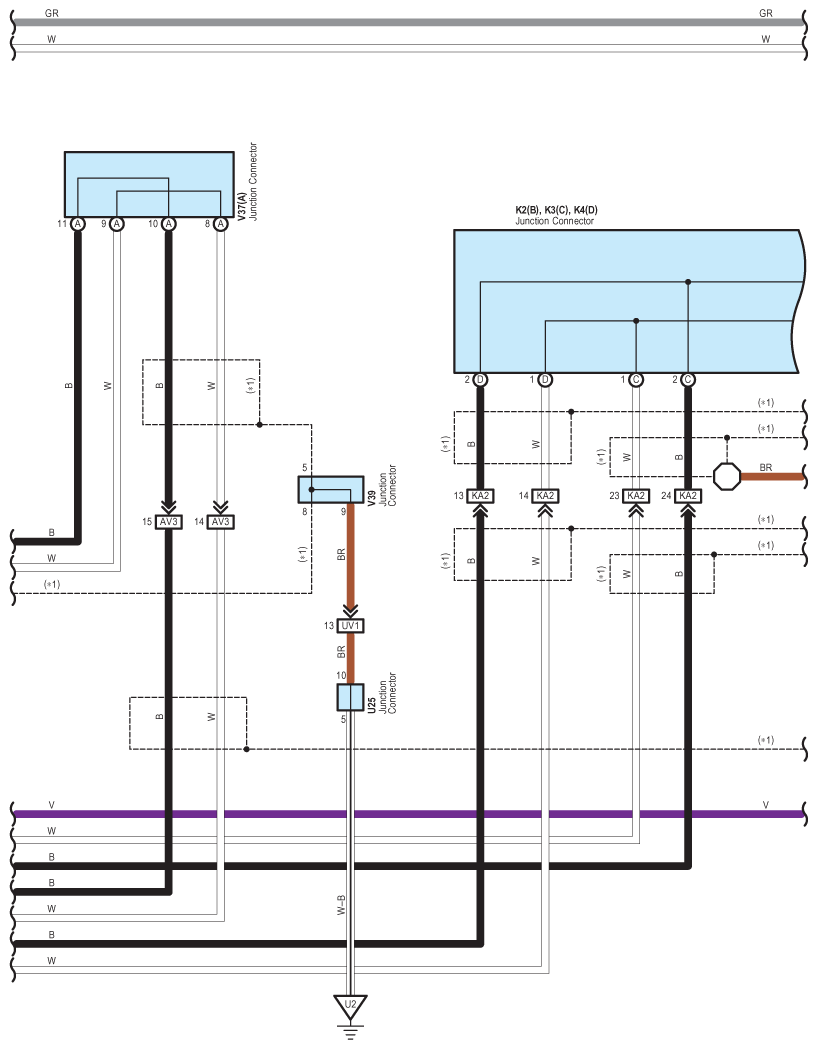

Fig 21: Hybrid System And Shift Control System - Circuit Diagram (21 Of 23)

G07613806

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

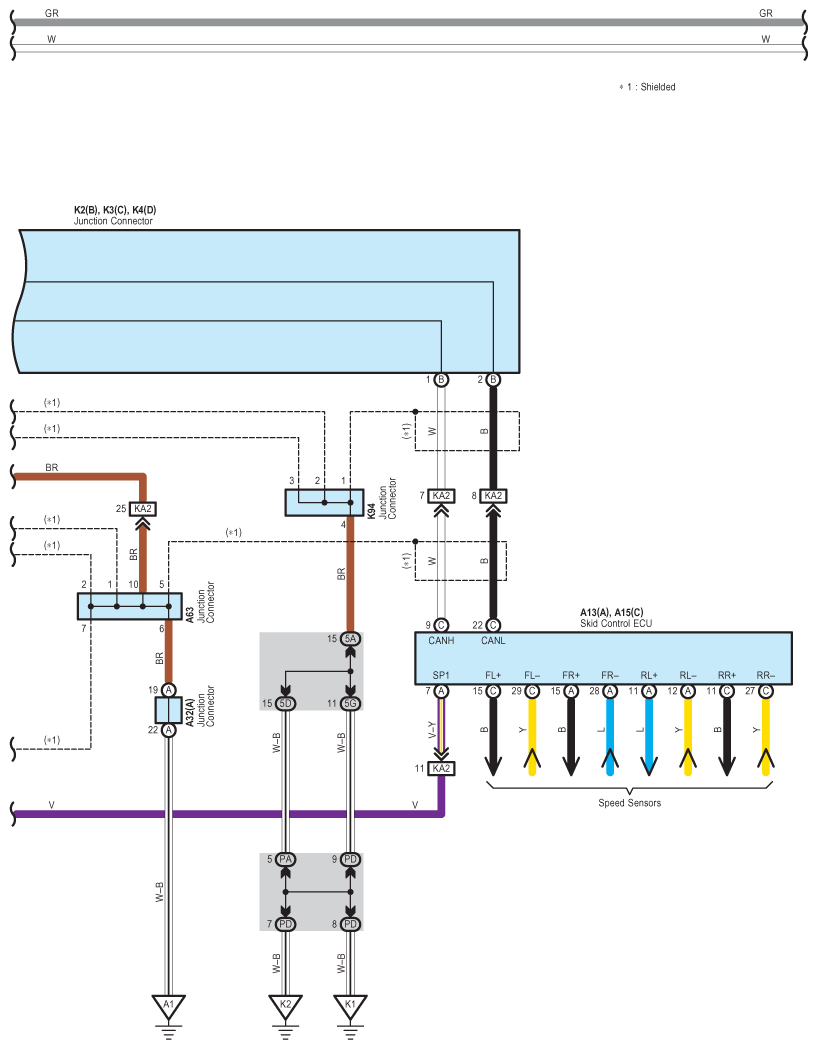

Fig 22: Hybrid System And Shift Control System - Circuit Diagram (22 Of 23)

G07613807

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

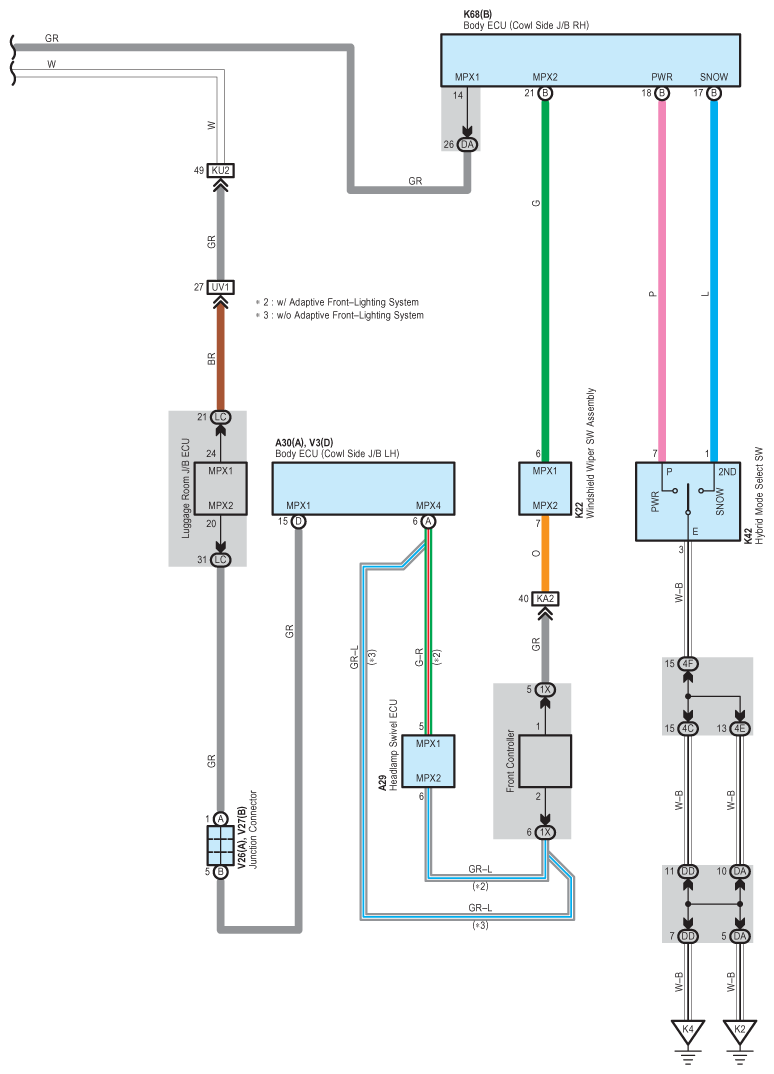

Fig 23: Hybrid System And Shift Control System - Circuit Diagram (23 Of 23)

G07613808

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
