Inspection Procedure

  1. READ VALUE USING TECHSTREAM (STOP LIGHT SWITCH)
    1. Check the DATA LIST for proper functioning of the stop light switch.

      Power source control ECU

      DATA LIST

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Stop Light SW1 Stop light switch 1 / ON or OFF ON: Brake pedal depressed
      OFF: Brake pedal released      		 -

      OK: ON (brake pedal depressed) appears on screen.

    OK: REPLACE POWER SOURCE CONTROL ECU

    NG: Go to Next Step

  2. INSPECT FUSE (STOP SW)
    1. Remove the STOP SW fuse from main body ECU RH.
    2. Measure the resistance of the fuse.

      Standard resistance:

      Below 1 Ω

    NG: REPLACE FUSE

    OK: Go to Next Step

  3. INSPECT STOP LIGHT SWITCH
    1. Remove the switch.
    2. Measure the resistance of the switch.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      1 - 2 Switch pin not pushed Below 1 Ω
      3 - 4 Switch pin not pushed 10 kΩ or higher
      1 - 2 Switch pin pushed 10 kΩ or higher
      3 - 4 Switch pin pushed Below 1 Ω
      3. Fig 1: Identifying Terminals Of Stop Light Switch Connector
      G05303639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE STOP LIGHT SWITCH

    OK: Go to Next Step

  4. CHECK WIRE HARNESS (STOP LIGHT SWITCH - POWER SOURCE CONTROL ECU AND BATTERY)
    1. Disconnect the A35 switch connector.
    2. Disconnect the K73 ECU connector.
    3. Measure the voltage and resistance of the wire harness side connectors.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      A35-2 - Body ground 11 to 14 V

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      A35-1 - K73-1 (STP) Below 1 Ω
      A35-1 or K73-1 (STP) - Body ground 10 kΩ or higher

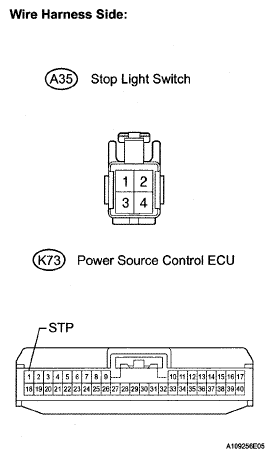

      4. Fig 2: Identifying Terminals Of K73 ECU And A35 Switch Connector
      G05303640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next Step

  5. READ VALUE USING TECHSTREAM (STOP LIGHT SWITCH)
    1. Check the DATA LIST for proper functioning of the stop light switch.

      Rear multiplex network ECU

      DATA LIST

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Stop Light SW Stop light switch/ ON or OFF ON: Brake pedal depressed
      OFF: Brake pedal released      		 -

      OK: ON (brake pedal depressed) appears on screen.

    NG: REPLACE POWER SOURCE CONTROL ECU

    OK:  GO TO LIGHTING SYSTEM
