Lexus
>>
2008
>>
GS 450h
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System - DTC P0136 - P0560
>>
DTC P050A Cold Start Idle Air Control System Performance
>>
Monitor Description
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Monitor Description

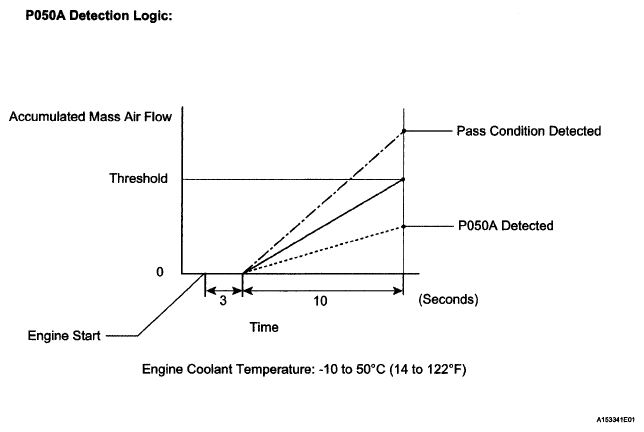

Fig 1: Monitor Description For P050A Detection Logic
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
