Speed Sensor: Components

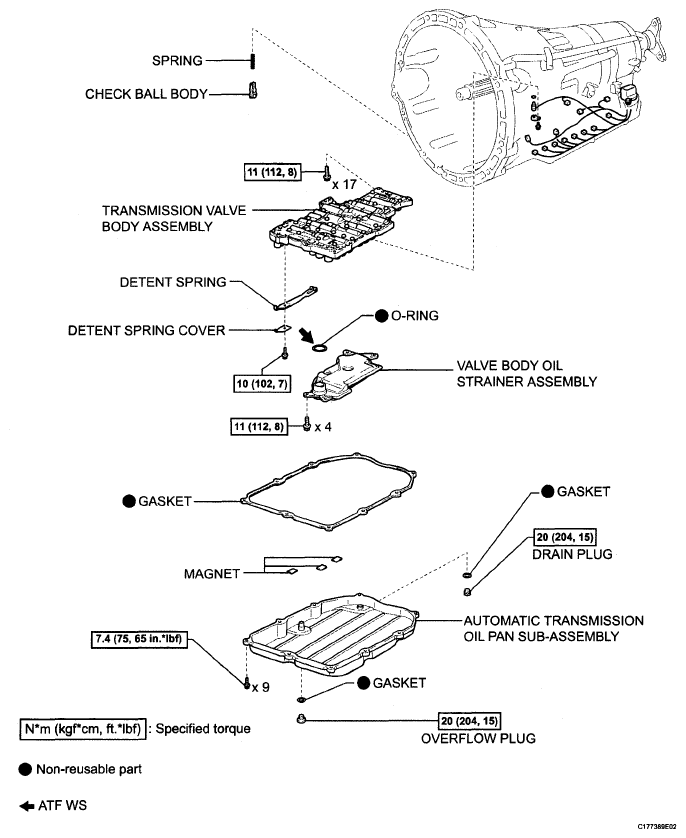

Fig 1: Speed Sensor Replacement Components With Torque Specifications (1 Of 2)
G05806342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

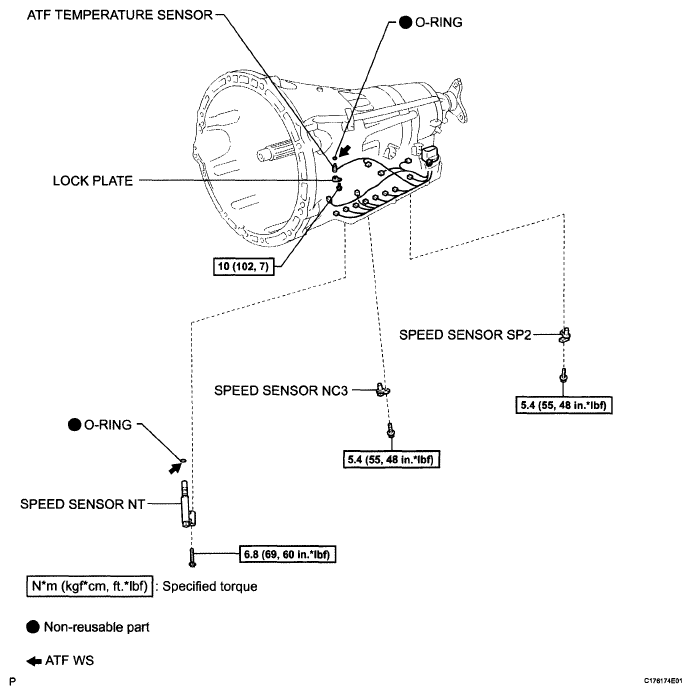

Fig 2: Speed Sensor Replacement Components With Torque Specifications (2 Of 2)
G05806343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
