Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch: Wiring Diagram

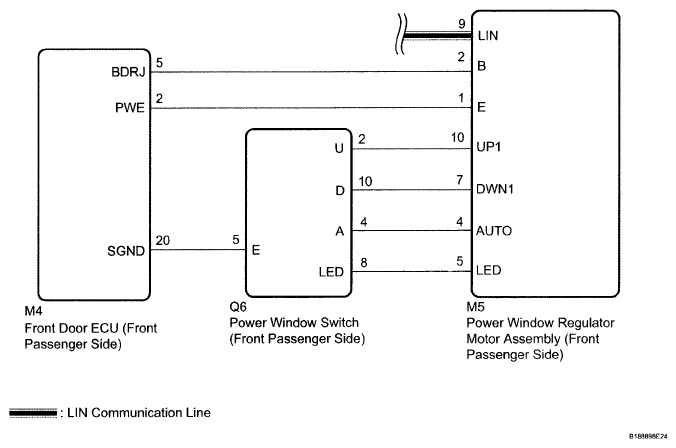

Fig 1: Front Passenger Side Power Window And Power Window Switch - Wiring Diagram
G05811701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
