Inspection Procedure

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG) and turn the Techstream ON.
3. Select the following menu items: Body / RR-Door Motor / Active Test.
4. Perform the Active Test according to the display on the Techstream.

   RR-Door Motor

   ACTIVE TEST



   Tester Display	Test Part	Control Range	Diagnostic Note
   Power Window	Power window	UP or OFF	-
   Power Window	Power window	DOWN or OFF	-

   OK:

   Rear RH power window operates normally.

   CAUTION: Be careful to avoid injuries as this test causes vehicle parts to move.
   During the Active Test, the jam protection function will not operate.

NG :  Go to step  4

OK : Go to Next Step

1. Select the following menu items: Body / RR-Door Motor / Data List.
2. Read the Data List according to the display on the Techstream.

   RR-Door Motor

   DATA LIST



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   RR Door P/W Up SW	Rear RH power window manual up switch signal / ON or OFF	ON: Rear RH power window manual up switch is operated OFF: Rear RH power window manual up switch is not operated	-
   RR Door P/W Down SW	Rear RH power window manual down switch signal / ON or OFF	ON: Rear RH power window manual down switch is operated OFF: Rear RH power window manual down switch is not operated	-

   OK:

   ON (switch operates) appears on screen.

NG : Go to step 3

OK : GO TO MULTIPLEX COMMUNICATION SYSTEM  (See HOW TO PROCEED WITH TROUBLESHOOTING )

1. Disconnect the S1 power window switch connector.
2. Disconnect the O3 rear door ECU connector.
3. Measure the resistance according to the value (s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION CHART



   Tester Connection	Condition	Specified Condition
   S1-5 (E) - O3-20 (SGND)	Always	Below 1 Ω
   S1-5 (E) - Body ground	Always	10 kΩ or higher

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

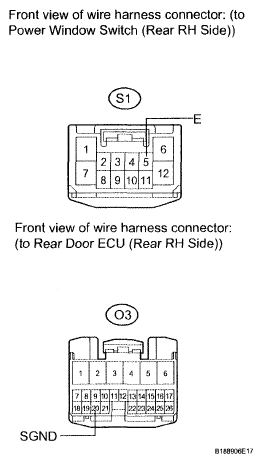

Fig 1: Identifying S1 Power Window Switch Connector And O3 Rear Door ECU Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to Next Step

1. Disconnect the O4 motor connector.
2. Measure the resistance according to the value (s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION CHART



   Tester Connection	Condition	Specified Condition
   O3-5 (BDRJ) - O4-2 (B)	Always	Below 1 Ω
   O3-2 (PWE) - O4-1 (E)	Always	Below 1 Ω
   O3-5 (BDRJ) - Body ground	Always	10 kΩ or higher
   O3-2 (PWE) - Body ground	Always	10 kΩ or higher

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

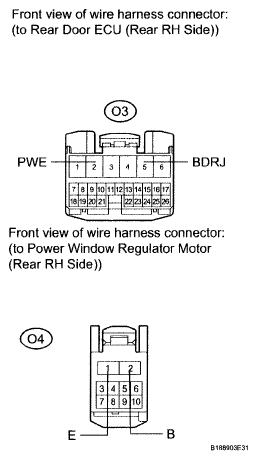

Fig 2: Identifying O4 Motor Connector And Rear Door ECU Connector O3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to Next Step

1. Measure the resistance according to the value (s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION CHART



   Tester Connection	Condition	Specified Condition
   S1-2 (U) - O4-10 (UP1)	Always	Below 1 Ω
   S1-10 (D) - O4-7 (DWN1)	Always	Below 1 Ω
   S1-2 (U) - Body ground	Always	10 kΩ or higher
   S1-10 (D) - Body ground	Always	10 kΩ or higher

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

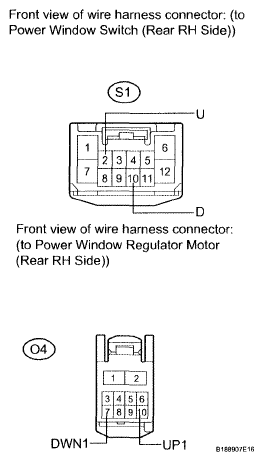

Fig 3: Identifying O4 Motor Connector And Power Window Switch Connector S1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to Next Step

1. Measure the resistance according to the value (s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION CHART



   Tester Connection	Switch Condition	Specified Condition
   2 (U) - 5 (E)	Manual UP operation	Below 1 Ω
   10 (D) - S (E)	Manual DOWN operation	Below 1 Ω

NG : REPLACE POWER WINDOW SWITCH (for Rear RH side)  (See REMOVAL )

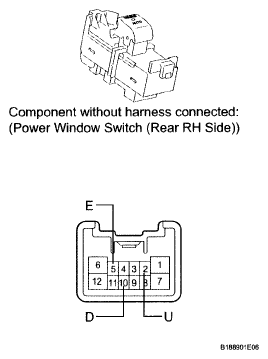

Fig 4: Identifying Power Window Switch Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH  (See REMOVAL )
