Center Power Outlet Socket: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE FRONT CONSOLE UPPER PANEL GARNISH  (See REMOVAL )
  3. REMOVE CONSOLE UPPER PANEL ASSEMBLY  (See REMOVAL )
  4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH  (See REMOVAL )
  5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH  (See REMOVAL )
  6. REMOVE CONSOLE BOX PLATE  (See REMOVAL )
  7. REMOVE CONSOLE BOX REGISTER ASSEMBLY  (See REMOVAL )
  8. REMOVE CONSOLE BOX  (See REMOVAL )
  9. REMOVE REAR CONSOLE ARMREST ASSEMBLY  (See DISASSEMBLY )
  10. REMOVE CONSOLE BOX SUB-ASSEMBLY UPPER  (See DISASSEMBLY )
  11. REMOVE POWER OUTLET SOCKET ASSEMBLY
    1. Rotate the socket to disengage the notch.
      Fig 1: Rotating Socket To Disengage Notch
      G05300138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull out the socket halfway and rotate the socket until its protrusion is aligned with the groove of the cover.
    3. Remove the socket from the cover.

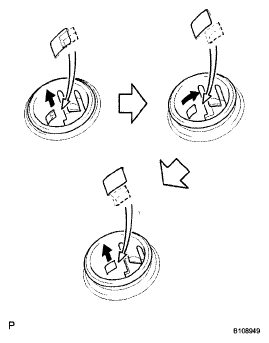

      Fig 2: Pulling Out Socket Halfway
      G05300139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
