Engine Control System (1UR-FSE) - Circuit Tests And Repair Information: ECM: Components

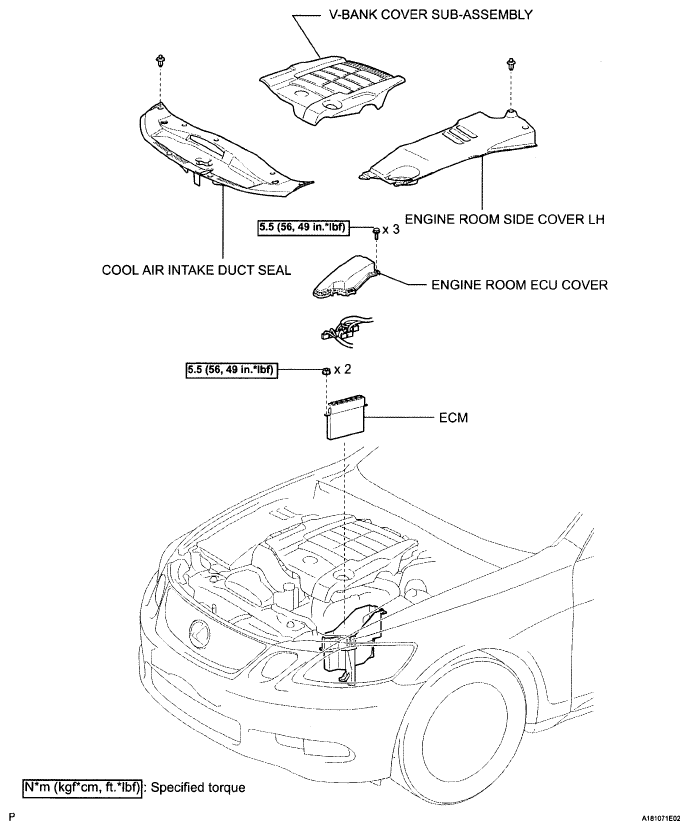

Fig 1: ECM Replacement Components With Torque Specifications
G05804075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
